PANEL ID SETTINGS

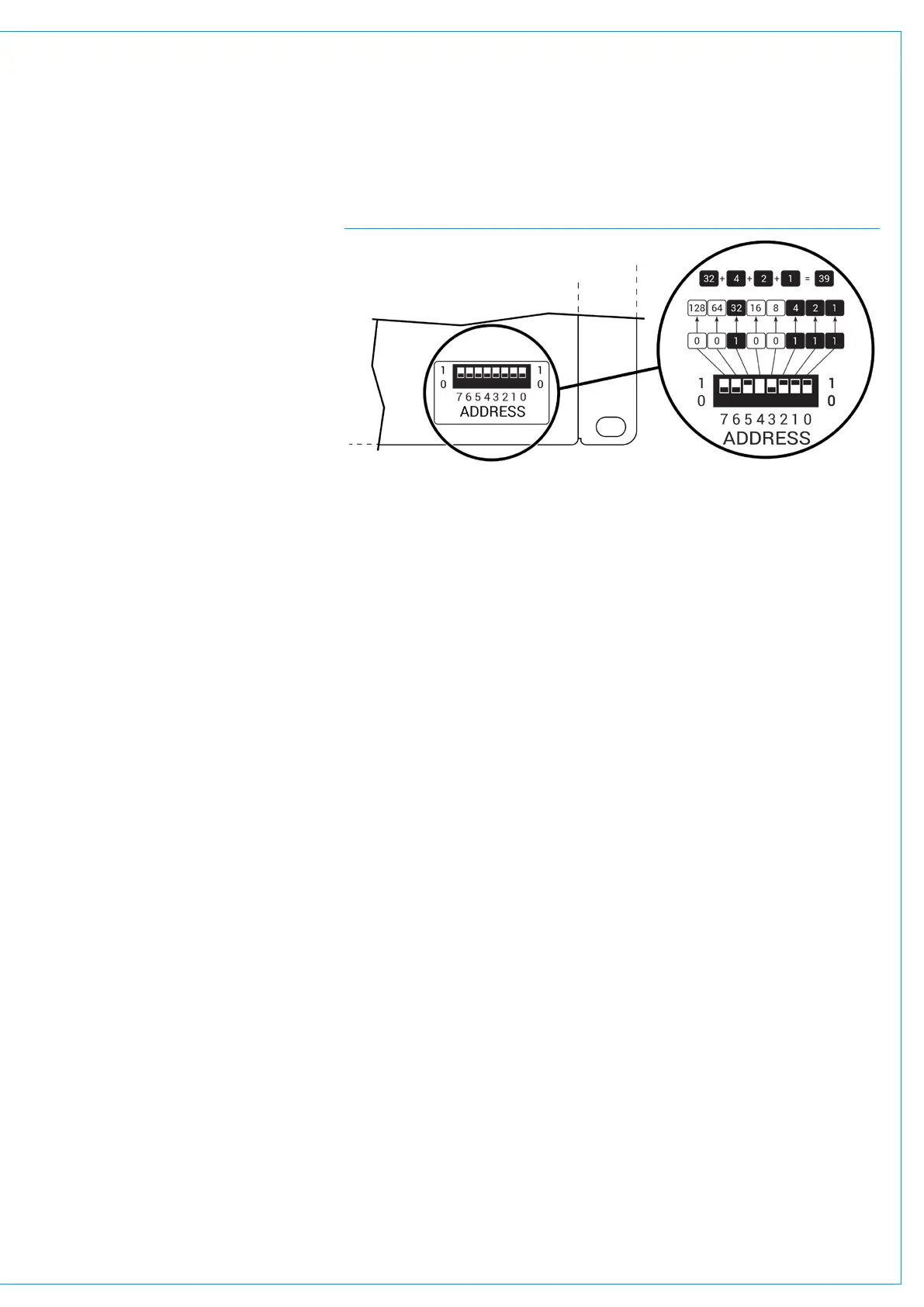

The 8-way DIP switch on the rear of all
Type R panels is set as an 8-bit binary
representation with the left hand
switch used for the most significant
bit, and the right hand switch for
the least significant bit. A switch in
the down/off position represents a
binary 0 and a switch set in the up/
on position represents a binary 1.
Each switch/binary-bit equates to a
decimal value, starting at 1, for the
least significant bit. The remaining
switches are double the value of their
less significant neighbour, making the
8th/most significant bit equate to a
decimal value of 128.
All Panel ID switches are orientated the
same way. Refer to the Calrec labelling on
the surrounding panel which will show the
most significant bit switch on the left and
the binary 1 position as up.
SETTING THE ID ON A PANEL
