SSP IN DESK MOUNTING (720-999005)
Small Soft panel MU6410 mounted
in desk See Fig 1.
a) Item 1 Bracket normal orientation allows desk top thickness 10mm to 20mm
b) Item 1 Bracket inverted, allows desk top thickness 40mm to 50mm
181mm
157mm 120mm
56mm
10-20mm
40-50mm

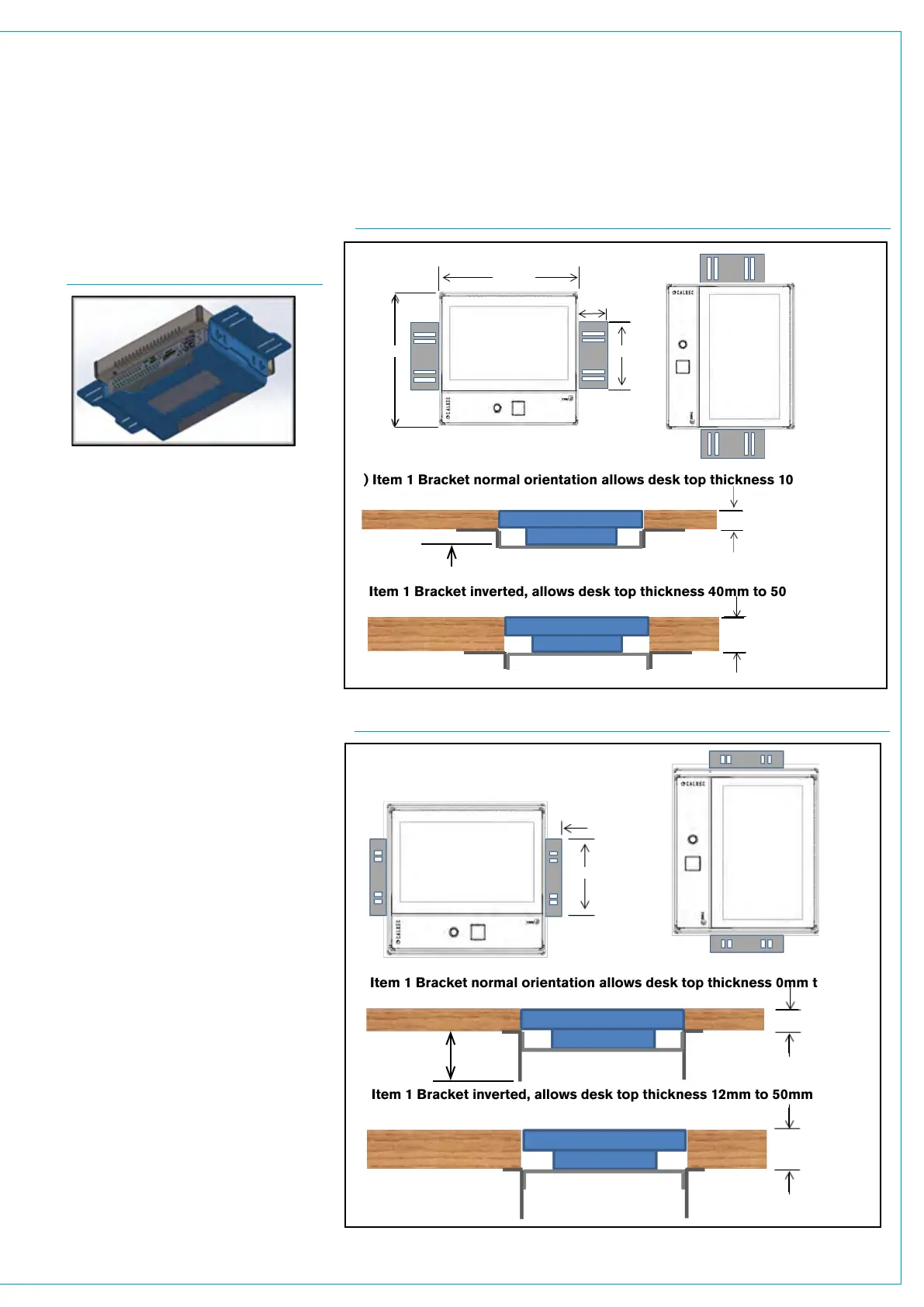

FIG 2 SMALL SOFT PANEL IN DESK MOUNTING MODES A & B
FIG 1 SMALL SOFT PANEL IN DESK
Flush mounting options
a) Fig 2, for desk thickness 10-20mm.
b) Fig 2, for desk thickness 40-50mm.
c) Fig 3, for desk thickness 0-20mm.
d) Fig 3, for desk thickness 12-50mm.
c) Item 1 Bracket normal orientation allows desk top thickness 0mm to 20mm
d) Item 1 Bracket inverted, allows desk top thickness 12mm to 50mm
120mm
28mm
0-20mm
12-50mm
FIG 3 SMALL SOFT PANEL IN DESK MOUNTING MODES C & D
28mm
56mm
