43
Re-attach interface bracket (Item 1) to
base Item 2) with 3 x M4 nuts (Item 4)
and washers (Item 5) and tighten.
If stand is to be placed on desk
surface.
Attach interface bracket (Item 1) to base
(Item 2) with 3 x M4 nuts (Item 4) and
washers (Item 5).
Align holes in bracket (Item 1) with
LSP VESA mount holes and attach
stand using 4 x M4 screws (Item 6)
with washers (Items 5 & 7). Note plain
washer should be nearest bracket.
As shown Fig.5.
Do not over tighten. Typically 1Nm
Large Soft Panel landscape on desk
stand, fixed 50 degree viewing angle in
conjunction with Fader in desk.
(See Fig 6) Mounting option uses:-
720-999001 LSP on desk mounting.
720-999006 Fader in desk mounting
brackets.
Mounting option for desk thickness
15-25mm (See Fig 7).
Assembly
Tools required (not supplied)
7mm adjustable/spanner/wrench open
ended.
PZ2 screw driver/ bit.
Wood screws (not supplied).
Saw.
Follow instructions for 720-999006
Fader in desk mounting kit but .
Fader opening size will require extending
to 418mm (16.45in) x 247mm (9.7in).
Offer up fader panel through opening
from underside.
Fix brackets (720-999006 item 2) to
underside of desk with 4 screws (not
supplied) suitable for desk surface.
Push up Fader Panel from underside
until Fader panel is flush with surface
and tighten 4 x M4 nuts (720-999006
Item 5).
Do not over tighten. Typically 1N/m
Follow instructions for LSP above for ‘If
stand is to be screwed to desk surface.’
Using Fig 2a. without rubber feet.

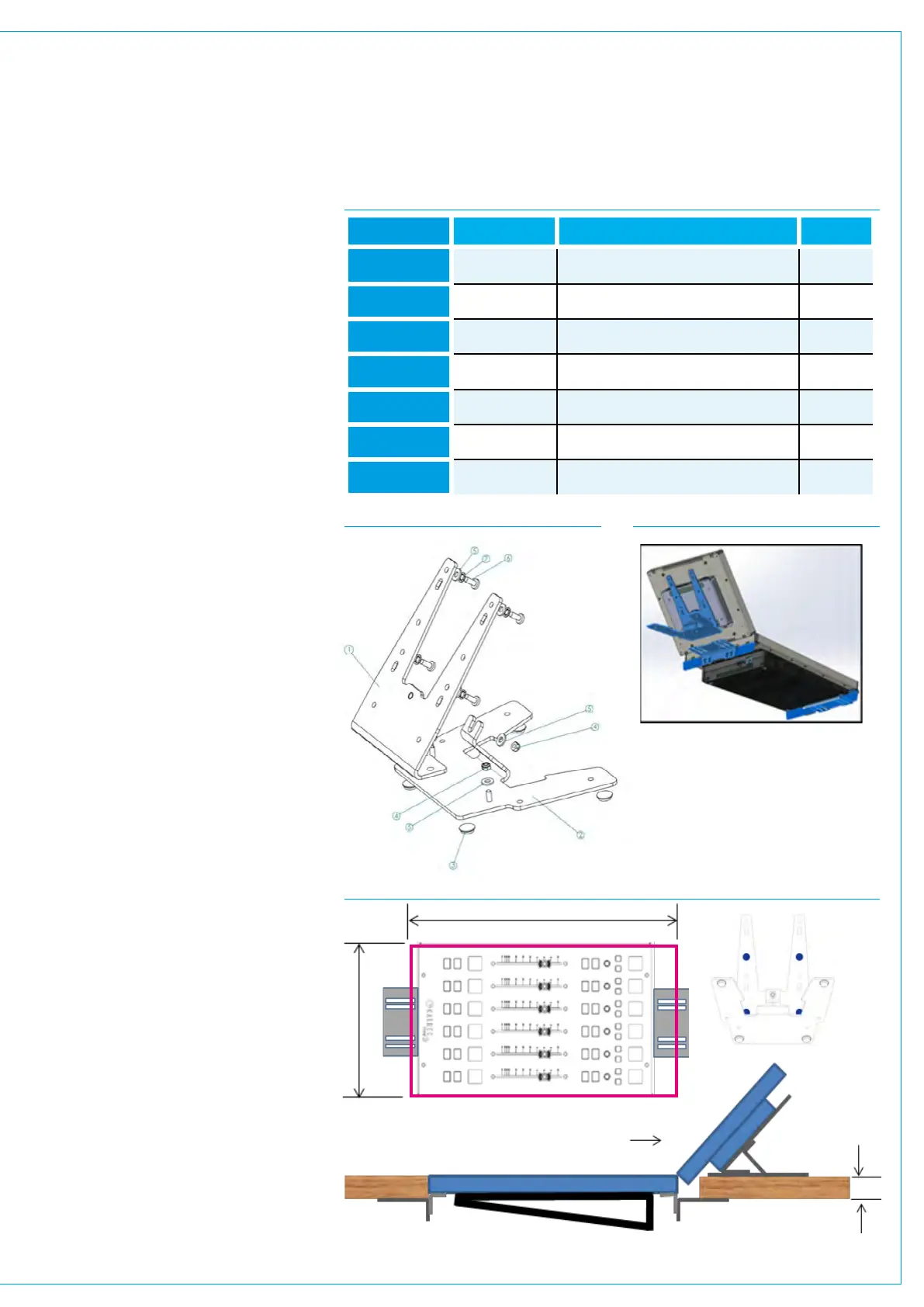

FIG 4 SUPPLIED PARTS TABLE
FIG 5 SUPPLIED PARTS ASSEMBLY
FIG 6 ASSEMBLED BRACKETS
FIG 7 MOUNTING OPTION FOR DESK THICKNESS 15MM-25MM
15mm-25mm
Front
247mm
418mm-430mm
Item Number Part Number Description Quantity
1 720-985 LSP Interface Bracket 1
2 720-983 LSP/SSP Stand Base 1
3 390-193 RBS-1BK Adhesive Foot 4
4
360-124 Nut M4 Nyloc 3
5 370-007 Washer M4 Plain 7
6 350-043 M4x10mm Pozi Pan 4
7
370-008 Washer M4 Internal lock 4
