116 TYPE R Radio Production System AoIP Network Examples

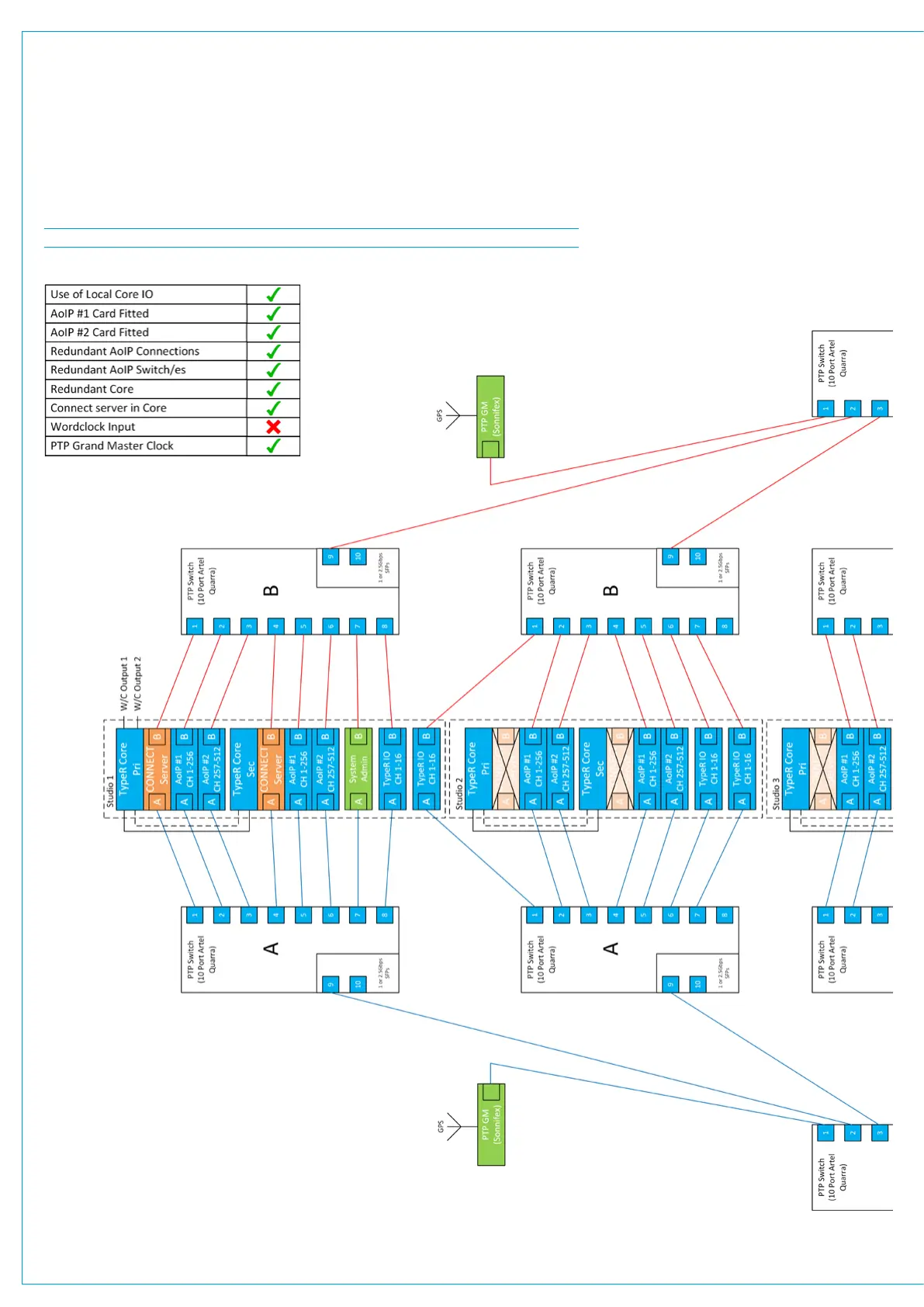

EXAMPLE 12: 6 STUDIOS + MCR, REDUNDANT CORES (2 AOIP CARDS/CORE)
WITH LOCAL I/O + 32 AOIP I/O BOXES ON 12 REDUNDANT SWITCHES
I/O Note:
In the event of a Redundant (Secondary) Core
takeover, any I/O connected to the Primary Core
local I/O will not be available on the Redundant
(Secondary) Core.
For I/O signals where redundancy is required we
recommend the use of networked Type R I/O
Boxes.
