118 TYPE R Radio Production System AoIP Network Examples

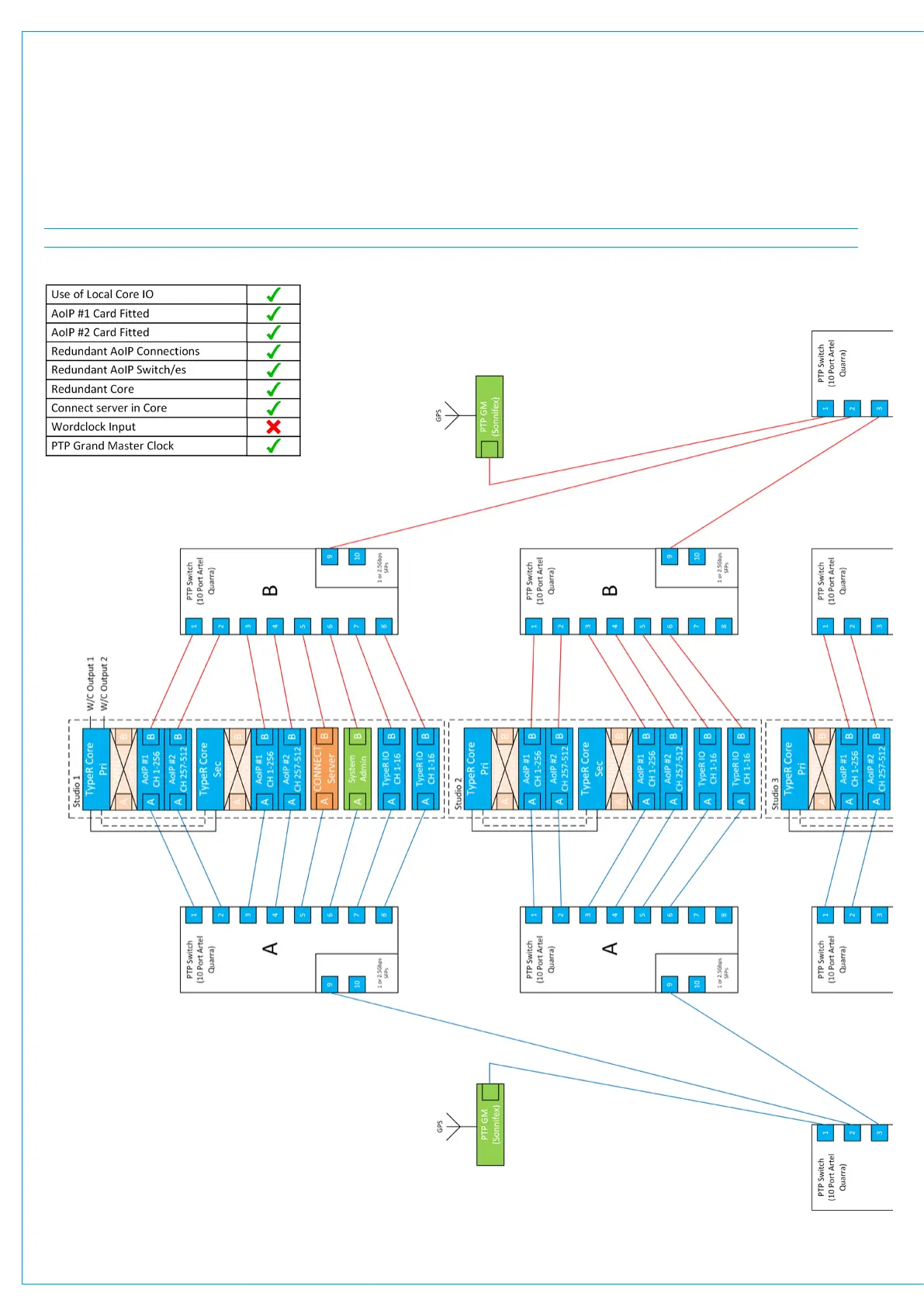

EXAMPLE 13: 4 STUDIOS + MCR, REDUNDANT CORES (2 AOIP CARDS/CORE) WITH LOCAL I/O + 32 AOIP I/O BOXES
ON 12 REDUNDANT SWITCHES. NOTE CONNECT SERVERS ARE INSTALLED ON PC’S RATHER THAN CORES.
I/O Note:
In the event of a Redundant (Secondary) Core
takeover, any I/O connected to the Primary Core
local I/O will not be available on the Redundant
(Secondary) Core.
For I/O signals where redundancy is required we
recommend the use of networked Type R I/O
Boxes.
