FIG 3 SUPPLIED PARTS TABLE

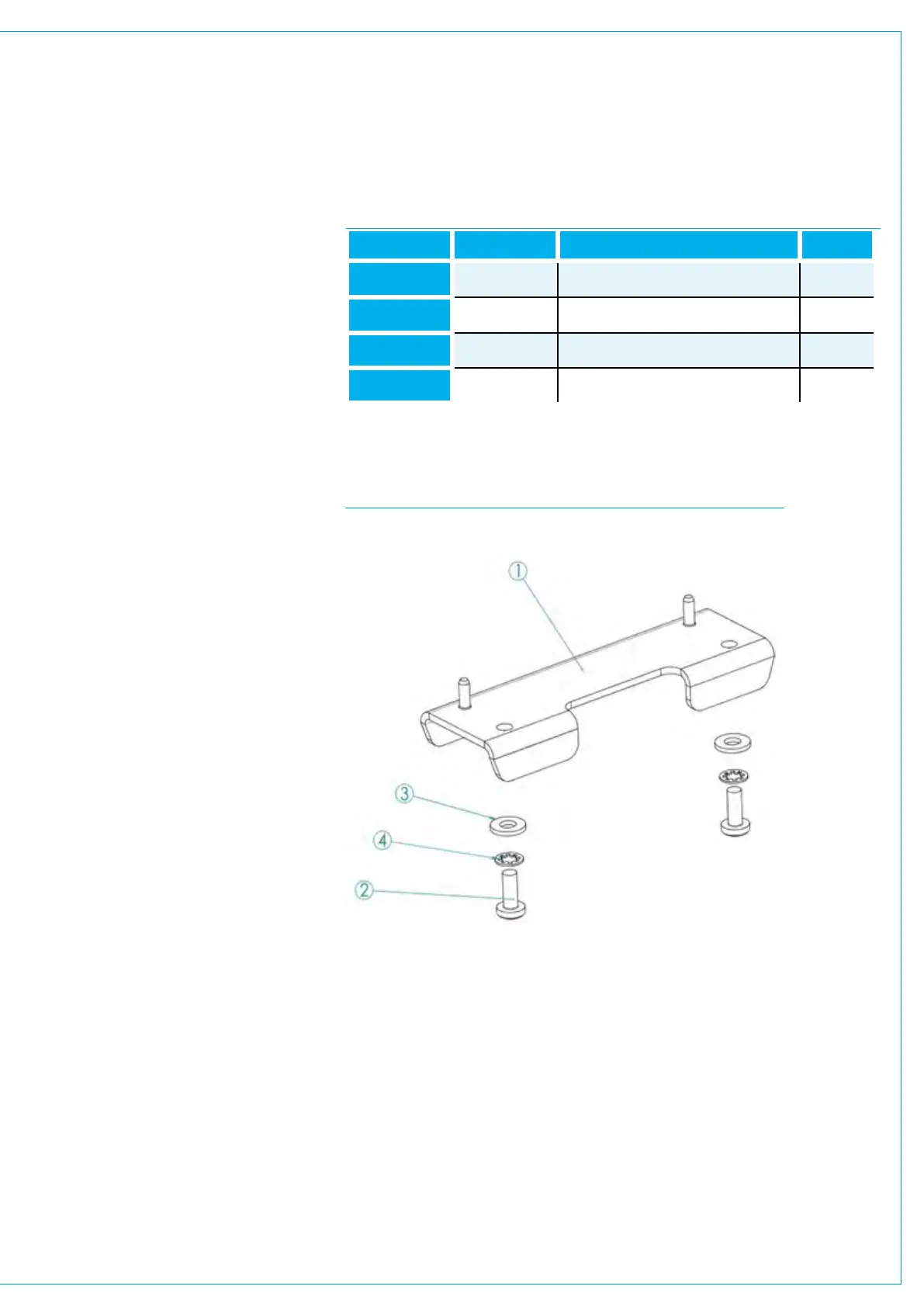

FIG 4 FADER JOINING TILE BRACKET
Item Number Part Number Description Quantity
1 730-034 Fader Joining Tile Bracket 2
2 350-043 M4x10mm Pozi Pan 4
3 370-007 Washer M4 Plain 4
4 370-008 Washer M4 Internal Lock 4
Assembly -
Tools required (not supplied)
PZ2 screw driver/ bit.
Mounting Procedure
Note that brackets are only fitted to one
of the two panels.
With the Fader panels located as you
require, take 1st Fader panel from left
and turn fader panel over with front
edge towards you.
Attach 2 brackets (Item 1) to left hand
side of fader panel.
Align holes in bracket (Item 1) with Fader
panel and attach using 4 x M4 screws
(Item 2) with washers (Items 3 & 4).
Note plain washer should be nearest
bracket, as shown Fig 4.
Do not over tighten. Typically 1N/m.
Place fader panel right way up on desk.
Take 2nd Fader panel and lift and place
next to right hand side of 1st Fader
panel locating on to locating pins of
bracket with holes on the underside of
left hand side of the 2nd fader panel.
Repeat as necessary for more than 2
fader panels.
