FIG 3 SUPPLIED PARTS TABLE

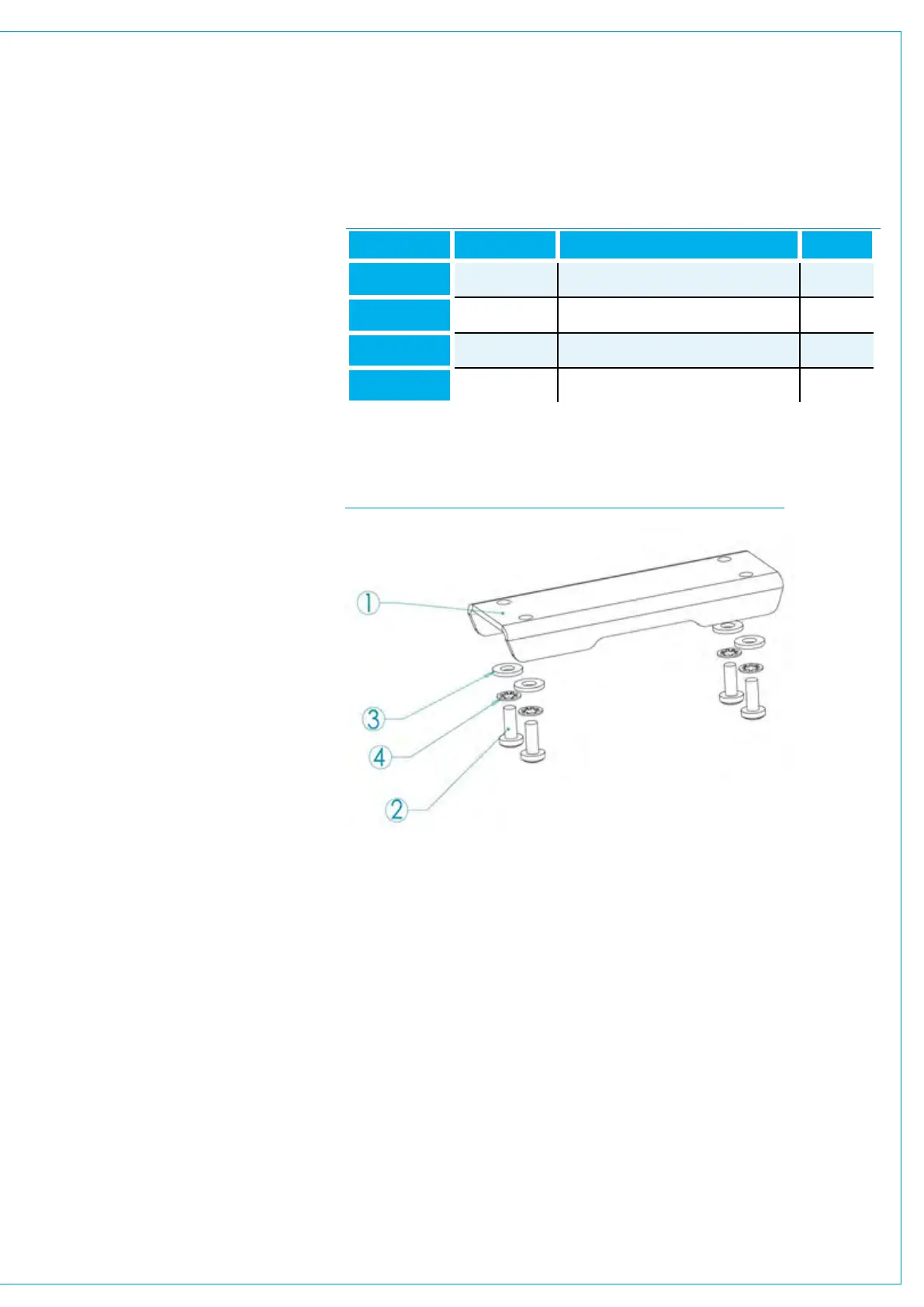

FIG 4 FADER JOINING TILE BRACKET
Item Number Part Number Description Quantity
1 730-035 LSP Joining Tile Bracket 1
2 350-043 M4x10mm Pozi Pan 4
3 370-007 Washer M4 Plain 4
4 370-008 Washer M4 Internal Lock 4
Assembly -
Tools required (not supplied)
PZ2 screw driver/ bit.
Mounting Procedure
Note that brackets are screwed to both
panels.
With the Large Soft panels located as
you require, take 1st Fader panel from
left and turn the panels over with top
of the panels towards you.
Align holes in bracket (Item 1) with Fader
panel and attach using 4 x M4 screws
(Item 2) with washers (Items 3 & 4).
Note plain washer should be nearest
bracket, as shown Fig 4.
Do not over tighten. Typically 1N/m
Return the panels right way up on desk.
If you are mounting linking brackets for
more than 2 panels an assistant may be
required to lift them after they are linked
together.
Alternatively fix the bracket in place from
the rear when they are mounted on their
stands.
