Canon EOS 90D - Page 33

33

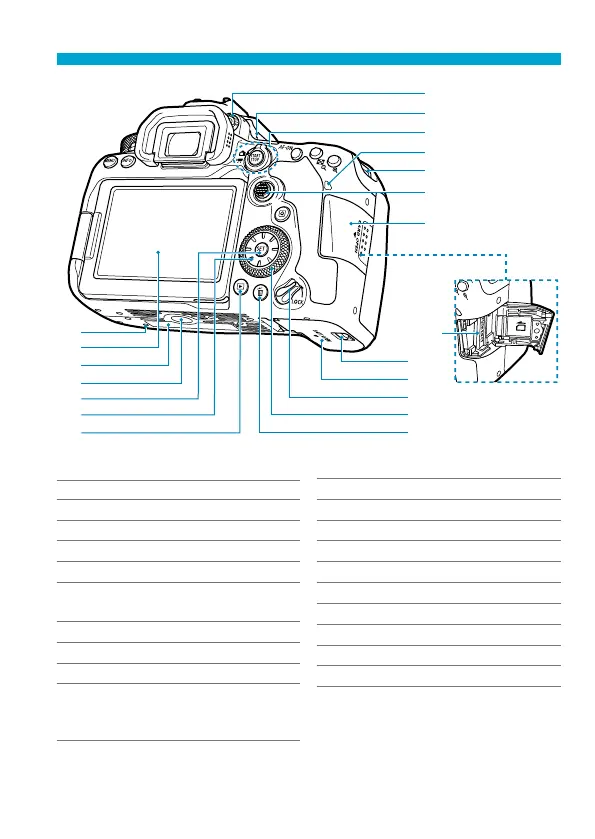

Part Names
(10)
(8)
(12)
(14)
(16)
(17)
(18)
(20)
(19)
(1)
(3)
(2)
(4)
(5)
(6)
(7)
(11)
(13)
(9)
(15)
(1) Accessory positioning hole
(2) Screen
(3) Serial number
(4) Tripod socket
(5) <
0
> Setting button
(6) <
9
> <
W
> <
X
> <
Y
> <
Z
>
Multi-controller 2
(7) <
x
> Playback button
(8) Dioptric adjustment knob
(9) <
V
> Focal plane mark
(10) <
A
> Live View shooting/
<
k
> Movie shooting switch
<
0
> Start/Stop button
(11) Access lamp
(12) Strap mount
(13) <
j
> Multi-controller 1
(14) Card slot cover
(15) Card slot
(16) Battery compartment cover lock
(17) Battery compartment cover
(18) Multi-function lock switch
(19) <
5
> Quick control dial
(20) <
L
> Erase button
