2.3.3 Paper Path
2.3.3.1 Outline
2.3.3.1.1 Overview of Paper Path
0023-2511
iPF650 / iPF655
The paper pass comprises an roll unit, a feed roller, a pinch roller pressure drive unit that pressurizes and depressurizes the pinch roller, a roll holder drive unit that
drives the roll holder and sensors that detect the transport status of paper to feed paper in one way, and transport and eject the paper.

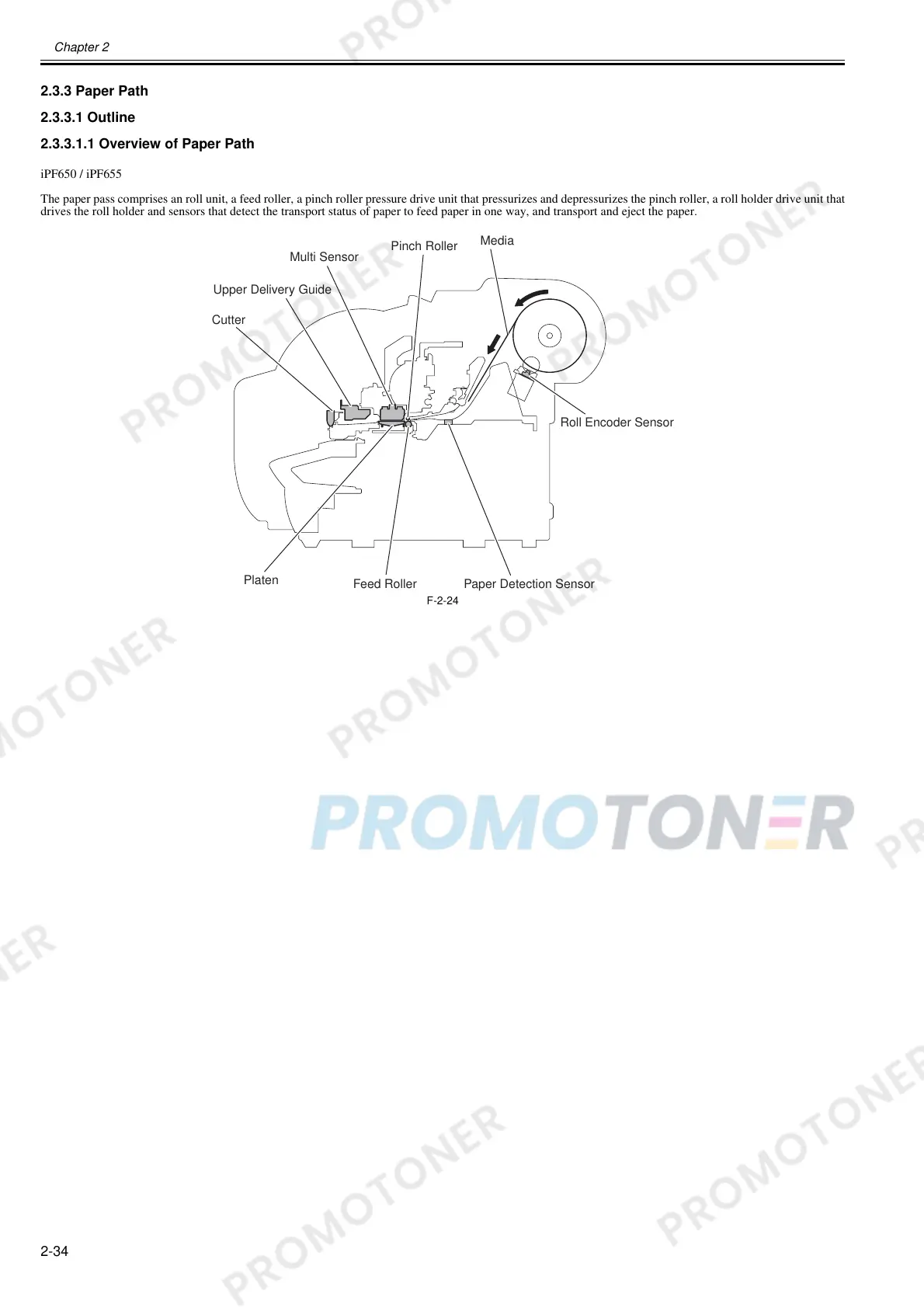

F-2-24
Media
Pinch Roller
Multi Sensor
Upper Delivery Guide
Cutter
Platen
Feed Roller
Paper Detection Sensor
Roll Encoder Sensor
