2.5.2 Ink passage system
0023-2556
iPF650 / iPF655

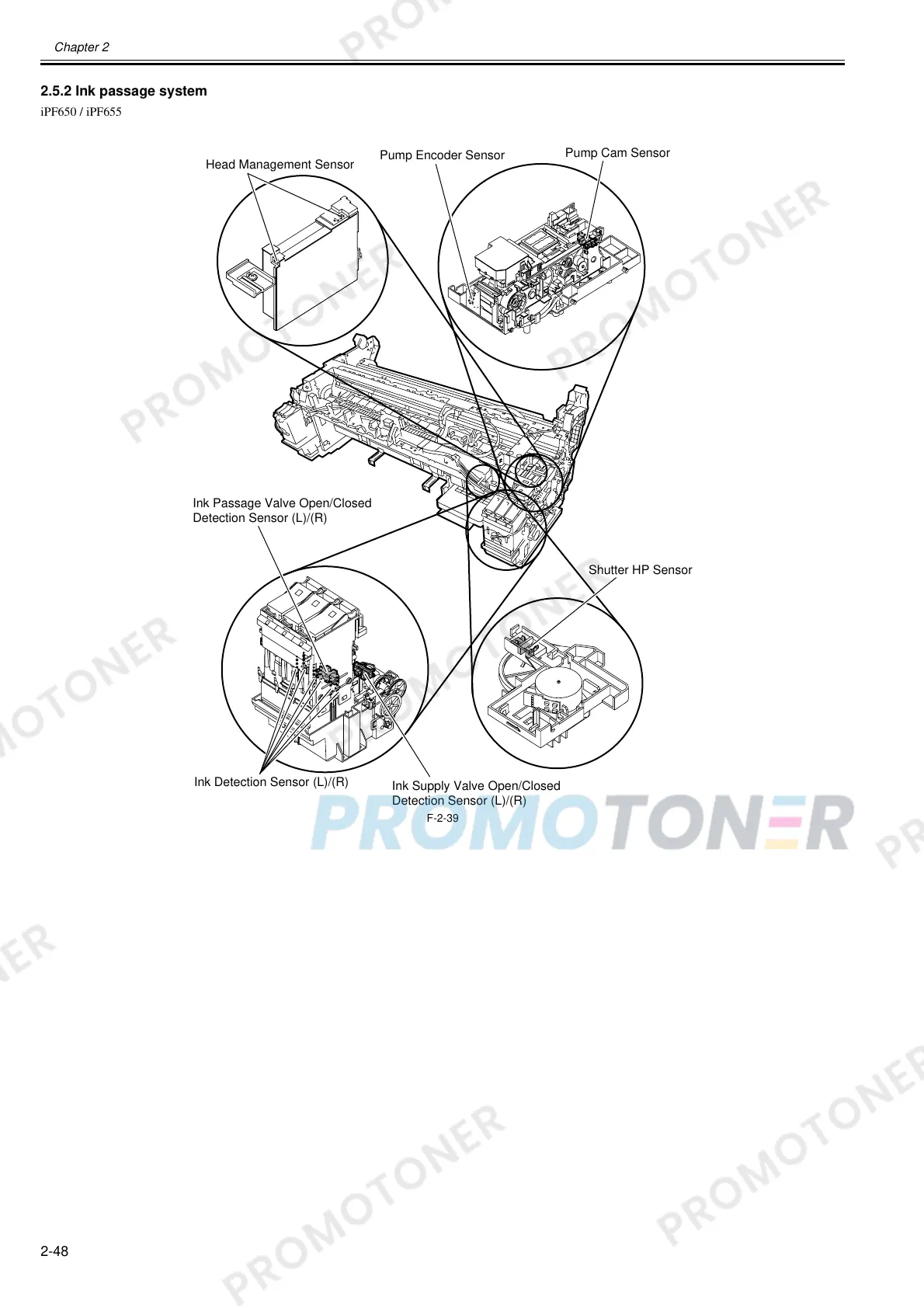

F-2-39
Head Management Sensor
Pump Encoder Sensor
Ink Detection Sensor (L)/(R)
Ink Passage Valve Open/Closed
Detection Sensor (L)/(R)
Ink Supply Valve Open/Closed
Detection Sensor (L)/(R)
Shutter HP Sensor
Pump Cam Sensor
