Chapter 1
1-15

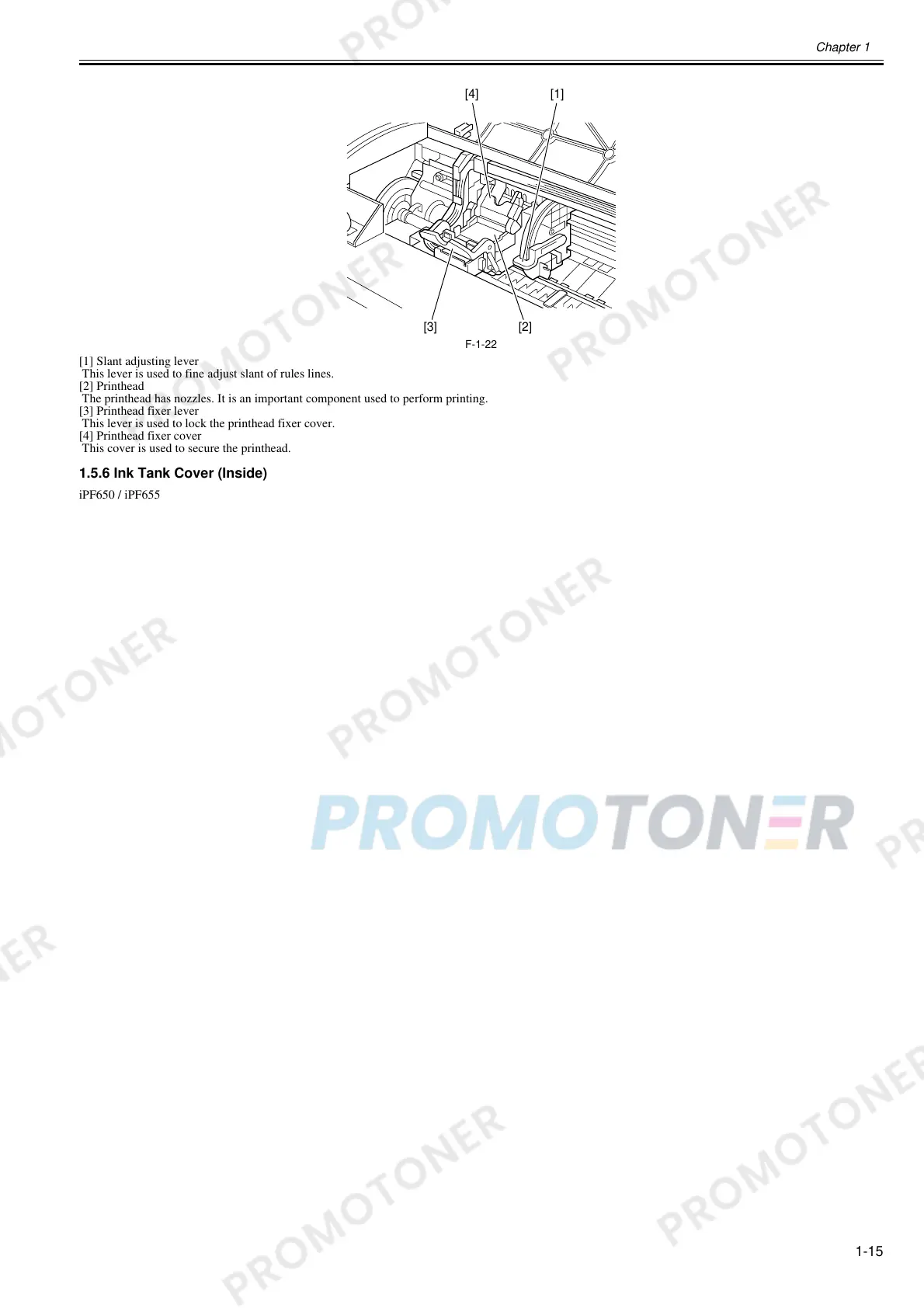

F-1-22
[1] Slant adjusting lever
This lever is used to fine adjust slant of rules lines.
[2] Printhead
The printhead has nozzles. It is an important component used to perform printing.
[3] Printhead fixer lever
This lever is used to lock the printhead fixer cover.
[4] Printhead fixer cover
This cover is used to secure the printhead.
1.5.6 Ink Tank Cover (Inside)
0023-1268
iPF650 / iPF655
[1][4]
[3] [2]
