Chapter 4
4-15

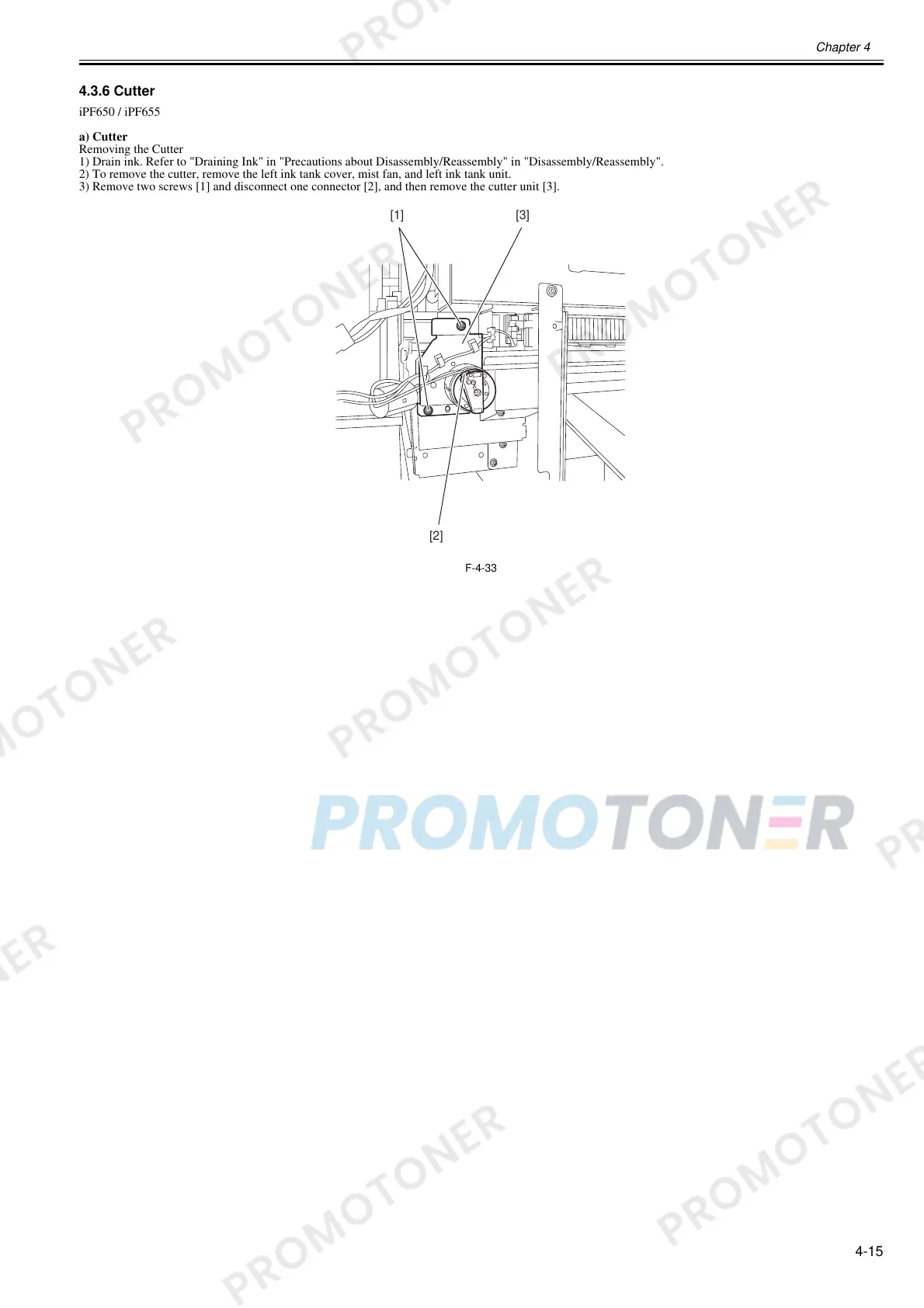

4.3.6 Cutter
0023-5529
iPF650 / iPF655
a) Cutter
Removing the Cutter
1) Drain ink. Refer to "Draining Ink" in "Precautions about Disassembly/Reassembly" in "Disassembly/Reassembly".
2) To remove the cutter, remove the left ink tank cover, mist fan, and left ink tank unit.
3) Remove two screws [1] and disconnect one connector [2], and then remove the cutter unit [3].
F-4-33
[2]
[3][1]
