Chapter 1
1-38

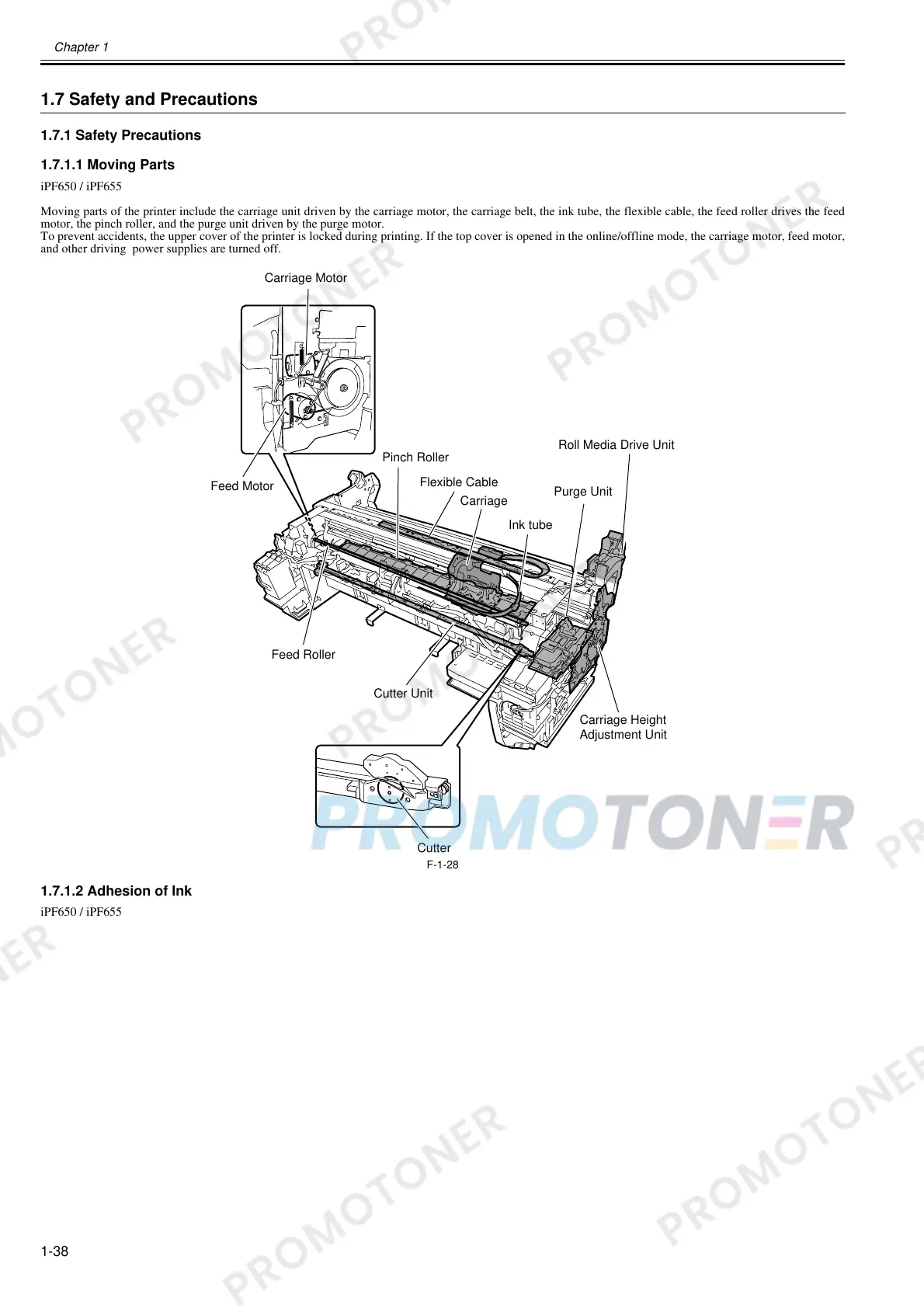

1.7 Safety and Precautions
1.7.1 Safety Precautions
1.7.1.1 Moving Parts
0023-1446
iPF650 / iPF655
Moving parts of the printer include the carriage unit driven by the carriage motor, the carriage belt, the ink tube, the flexible cable, the feed roller drives the feed
motor, the pinch roller, and the purge unit driven by the purge motor.
To prevent accidents, the upper cover of the printer is locked during printing. If the top cover is opened in the online/offline mode, the carriage motor, feed motor,
and other driving power supplies are turned off.
F-1-28
1.7.1.2 Adhesion of Ink
0023-1463
iPF650 / iPF655
Carriage Motor
Feed Motor
Pinch Roller
Flexible Cable
Feed Roller
Cutter Unit
Cutter
Carriage
Ink tube
Purge Unit
Roll Media Drive Unit
Carriage Height
Adjustment Unit
