Chapter 2
2-47
2.5 Detection Functions with Sensors
2.5.1 Sensors for covers
0023-2554
iPF650 / iPF655

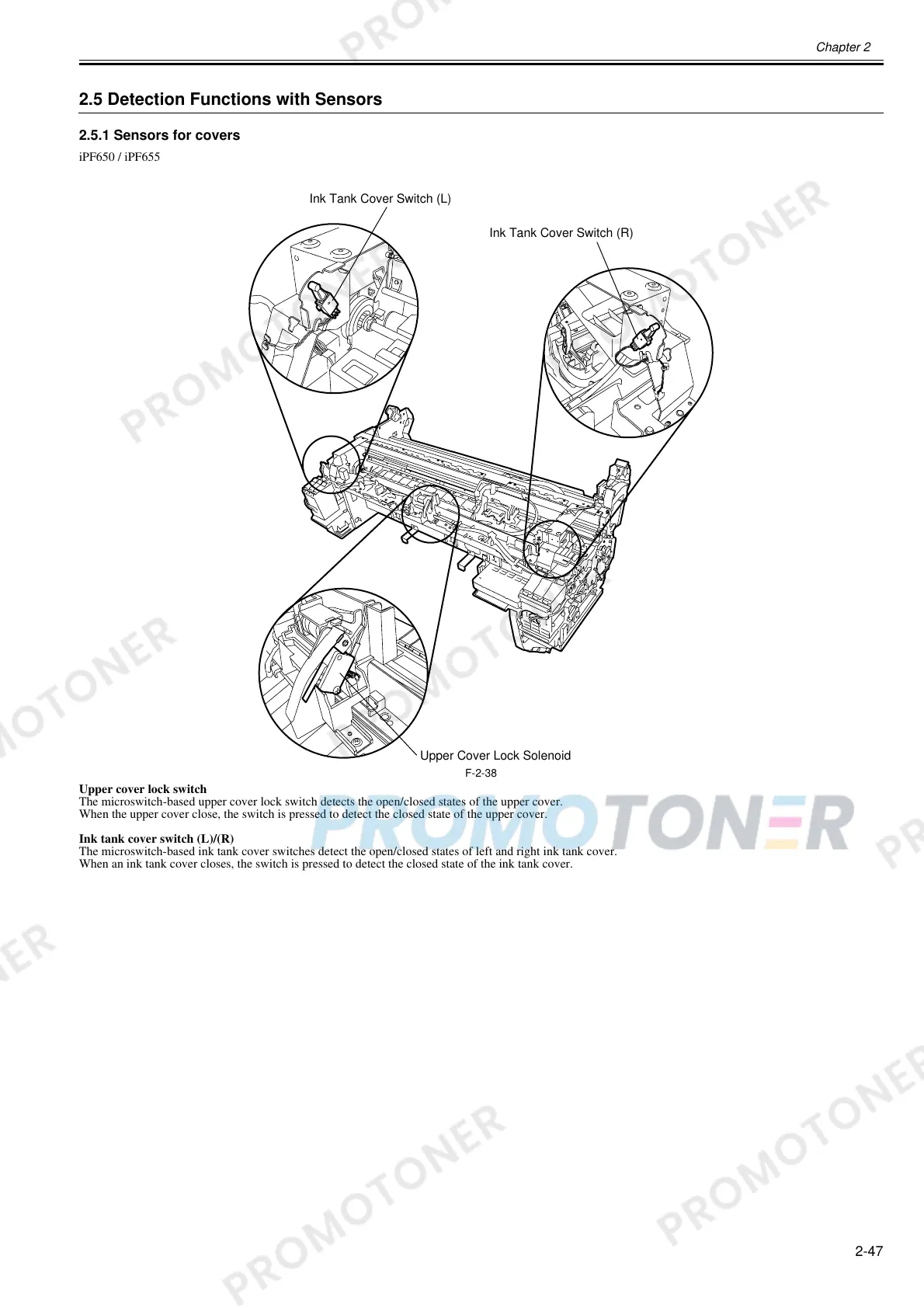

F-2-38
Upper cover lock switch
The microswitch-based upper cover lock switch detects the open/closed states of the upper cover.
When the upper cover close, the switch is pressed to detect the closed state of the upper cover.
Ink tank cover switch (L)/(R)
The microswitch-based ink tank cover switches detect the open/closed states of left and right ink tank cover.
When an ink tank cover closes, the switch is pressed to detect the closed state of the ink tank cover.
Ink Tank Cover Switch (L)
Ink Tank Cover Switch (R)
Upper Cover Lock Solenoid
