Chapter 2
2-6

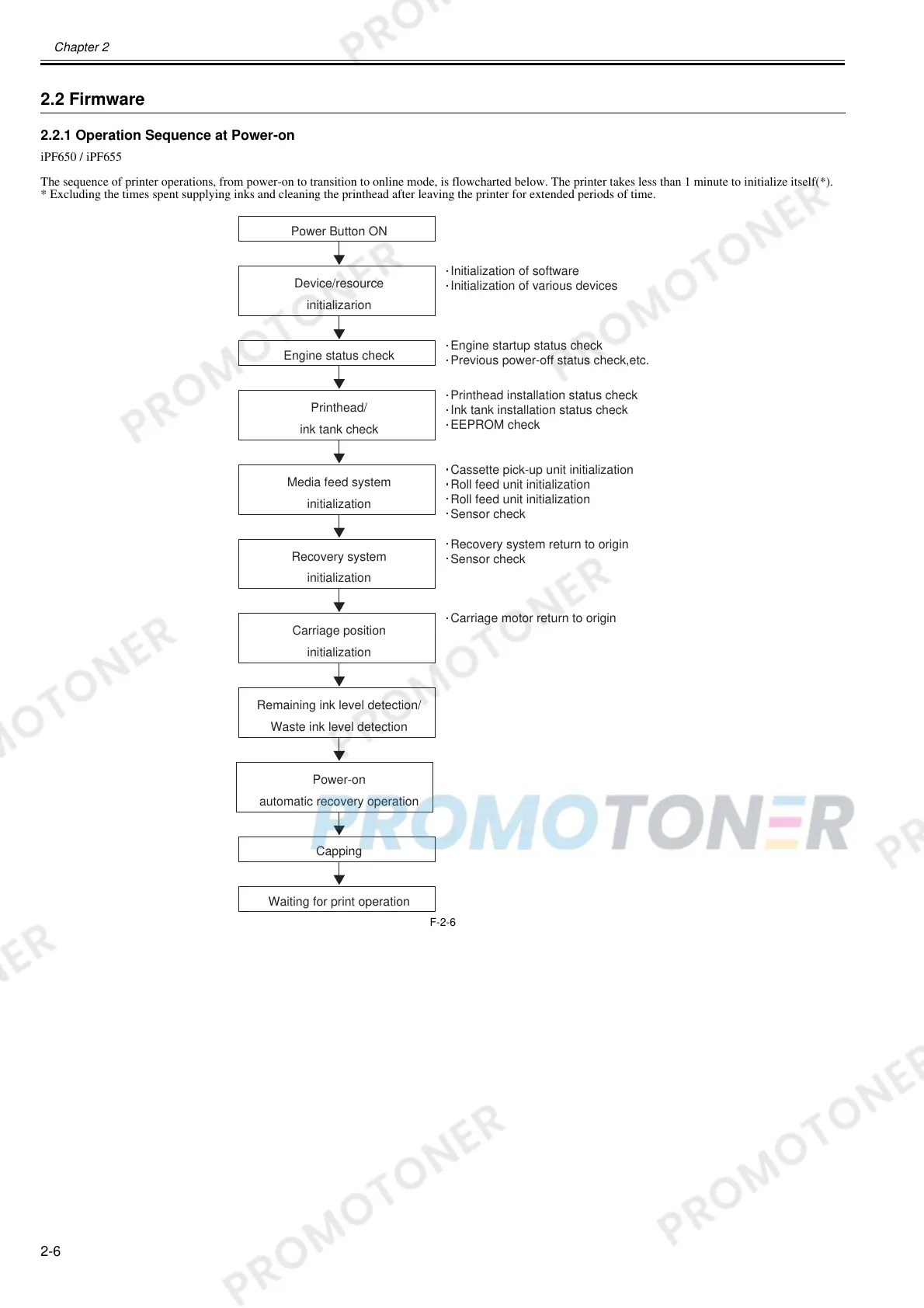

2.2 Firmware
2.2.1 Operation Sequence at Power-on
0012-6310
iPF650 / iPF655
The sequence of printer operations, from power-on to transition to online mode, is flowcharted below. The printer takes less than 1 minute to initialize itself(*).
* Excluding the times spent supplying inks and cleaning the printhead after leaving the printer for extended periods of time.
F-2-6
Power Button ON
Device/resource
initializarion
Printhead/
ink tank check
Media feed system
initialization
Recovery system
initialization
Carriage position
initialization
Remaining ink level detection/
Waste ink level detection
Power-on
automatic recovery operation
Capping
Waiting for print operation
Initialization of software
Initialization of various devices
Engine status check
Engine startup status check
Previous power-off status check,etc.
Printhead installation status check
Ink tank installation status check
EEPROM check
Cassette pick-up unit initialization
Roll feed unit initialization
Roll feed unit initialization
Sensor check
Recovery system return to origin
Sensor check
Carriage motor return to origin

Canon ImagePROGRAF iPF650 Series Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Number of Ink Colors	5
Maximum Media Width	24 inches
Interface	USB 2.0, Ethernet
Weight	approximately 97 lbs
Technology	Inkjet
Number of Nozzles	15, 360
Cutter	Automatic
Memory	256 MB
Interface Type	USB 2.0, Ethernet
Power Supply	AC 100-240V (50-60Hz)
Dimensions (W x D x H)	39.3 x 34.3 x 42.2 inches
Printer Type	Large Format Printer
Print Technology	Inkjet
Ink Type	Dye/Pigment Reactive Ink
Media Width	8 - 24 in
Media Thickness	0.07 - 0.8 mm
Roll Paper Size	8 - 24 in
Hard Drive	No
Operating System Compatibility	Windows, Mac
Power Consumption (Operating)	140W (or less)
Media Sizes	Up to 24 inches
Operating Systems Supported	Windows, Mac
Power Consumption	140W (or less)
