Canon ImagePROGRAF iPF650 Series User Manual

Chapter 2
2-46
2.4.5 Power Supply

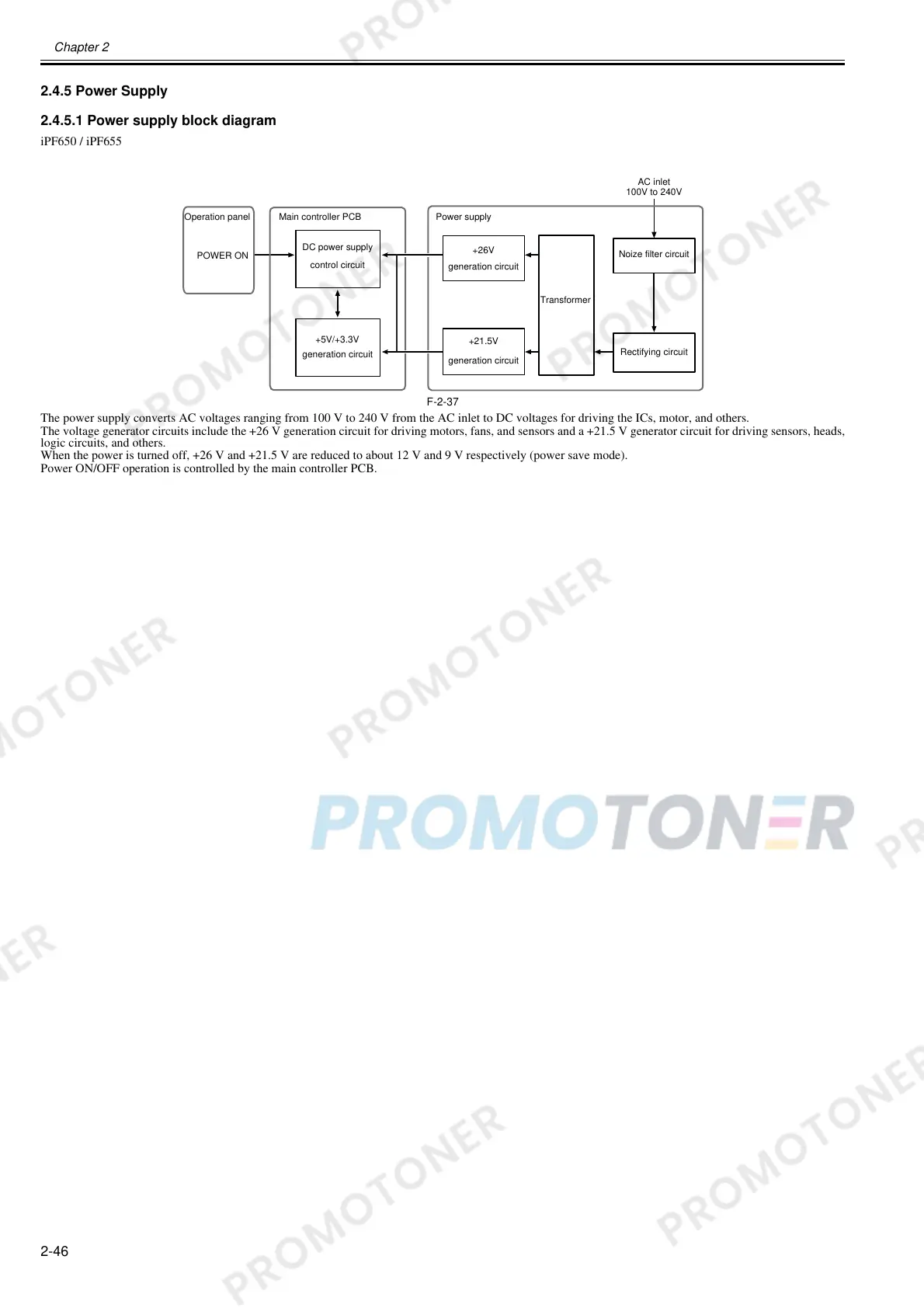

2.4.5.1 Power supply block diagram
0013-4333
iPF650 / iPF655
F-2-37
The power supply converts AC voltages ranging from 100 V to 240 V from the AC inlet to DC voltages for driving the ICs, motor, and others.
The voltage generator circuits include the +26 V generation circuit for driving motors, fans, and sensors and a +21.5 V generator circuit for driving sensors, heads,
logic circuits, and others.
When the power is turned off, +26 V and +21.5 V are reduced to about 12 V and 9 V respectively (power save mode).
Power ON/OFF operation is controlled by the main controller PCB.
Operation panel
Transformer
DC power supply
control circuit
+21.5V
generation circuit
+26V
generation circuit
POWER ON
Rectifying circuit
Noize filter circuit
AC inlet
100V to 240V
Power supplyMain controller PCB
+5V/+3.3V
generation circuit

Canon ImagePROGRAF iPF650 Series Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Number of Ink Colors	5
Maximum Media Width	24 inches
Interface	USB 2.0, Ethernet
Weight	approximately 97 lbs
Technology	Inkjet
Number of Nozzles	15, 360
Cutter	Automatic
Memory	256 MB
Interface Type	USB 2.0, Ethernet
Power Supply	AC 100-240V (50-60Hz)
Dimensions (W x D x H)	39.3 x 34.3 x 42.2 inches
Printer Type	Large Format Printer
Print Technology	Inkjet
Ink Type	Dye/Pigment Reactive Ink
Media Width	8 - 24 in
Media Thickness	0.07 - 0.8 mm
Roll Paper Size	8 - 24 in
Hard Drive	No
Operating System Compatibility	Windows, Mac
Power Consumption (Operating)	140W (or less)
Media Sizes	Up to 24 inches
Operating Systems Supported	Windows, Mac
Power Consumption	140W (or less)
