Chapter 1
1-19

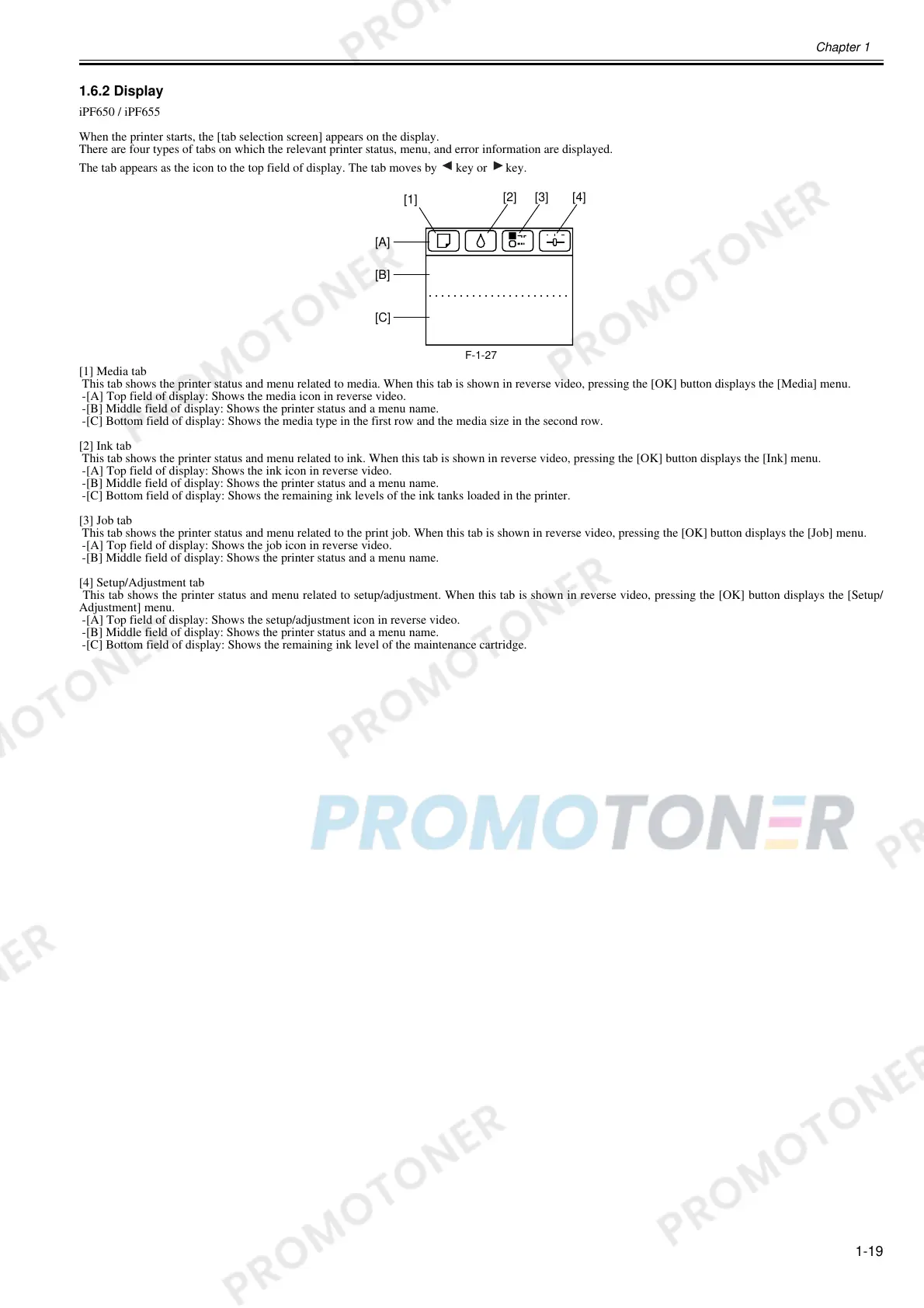

1.6.2 Display
0023-1271
iPF650 / iPF655
When the printer starts, the [tab selection screen] appears on the display.
There are four types of tabs on which the relevant printer status, menu, and error information are displayed.
The tab appears as the icon to the top field of display. The tab moves by key or key.
F-1-27
[1] Media tab
This tab shows the printer status and menu related to media. When this tab is shown in reverse video, pressing the [OK] button displays the [Media] menu.
-[A] Top field of display: Shows the media icon in reverse video.
-[B] Middle field of display: Shows the printer status and a menu name.
-[C] Bottom field of display: Shows the media type in the first row and the media size in the second row.
[2] Ink tab
This tab shows the printer status and menu related to ink. When this tab is shown in reverse video, pressing the [OK] button displays the [Ink] menu.
-[A] Top field of display: Shows the ink icon in reverse video.
-[B] Middle field of display: Shows the printer status and a menu name.
-[C] Bottom field of display: Shows the remaining ink levels of the ink tanks loaded in the printer.
[3] Job tab
This tab shows the printer status and menu related to the print job. When this tab is shown in reverse video, pressing the [OK] button displays the [Job] menu.
-[A] Top field of display: Shows the job icon in reverse video.
-[B] Middle field of display: Shows the printer status and a menu name.
[4] Setup/Adjustment tab
This tab shows the printer status and menu related to setup/adjustment. When this tab is shown in reverse video, pressing the [OK] button displays the [Setup/
Adjustment] menu.
-[A] Top field of display: Shows the setup/adjustment icon in reverse video.
-[B] Middle field of display: Shows the printer status and a menu name.
-[C] Bottom field of display: Shows the remaining ink level of the maintenance cartridge.
[1]
[A]
[2] [3] [4]
[B]
[C]
