Canon ImagePROGRAF iPF650 Series User Manual

Chapter 1
1-12

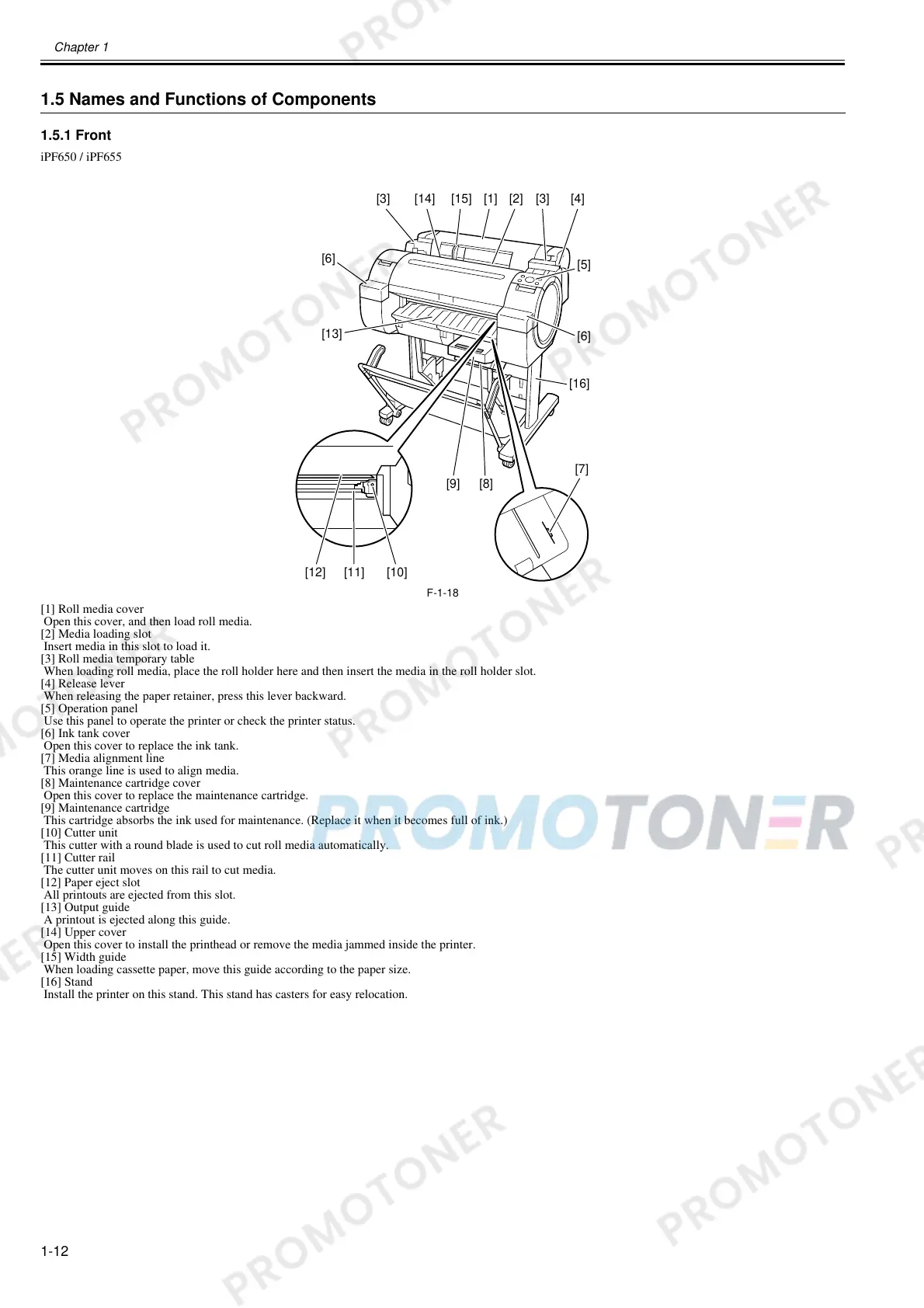

1.5 Names and Functions of Components
1.5.1 Front
0023-5230
iPF650 / iPF655
F-1-18
[1] Roll media cover
Open this cover, and then load roll media.
[2] Media loading slot
Insert media in this slot to load it.
[3] Roll media temporary table
When loading roll media, place the roll holder here and then insert the media in the roll holder slot.
[4] Release lever
When releasing the paper retainer, press this lever backward.
[5] Operation panel
Use this panel to operate the printer or check the printer status.
[6] Ink tank cover
Open this cover to replace the ink tank.
[7] Media alignment line
This orange line is used to align media.
[8] Maintenance cartridge cover
Open this cover to replace the maintenance cartridge.
[9] Maintenance cartridge
This cartridge absorbs the ink used for maintenance. (Replace it when it becomes full of ink.)
[10] Cutter unit
This cutter with a round blade is used to cut roll media automatically.
[11] Cutter rail
The cutter unit moves on this rail to cut media.
[12] Paper eject slot
All printouts are ejected from this slot.
[13] Output guide
A printout is ejected along this guide.
[14] Upper cover
Open this cover to install the printhead or remove the media jammed inside the printer.
[15] Width guide
When loading cassette paper, move this guide according to the paper size.
[16] Stand
Install the printer on this stand. This stand has casters for easy relocation.
[3] [14] [15] [1]
[5]
[6]
[6]
[13]
[16]
[7]
[9]
[10][11][12]
[8]
[2] [3] [4]

Canon ImagePROGRAF iPF650 Series Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Number of Ink Colors	5
Maximum Media Width	24 inches
Interface	USB 2.0, Ethernet
Weight	approximately 97 lbs
Technology	Inkjet
Number of Nozzles	15, 360
Cutter	Automatic
Memory	256 MB
Interface Type	USB 2.0, Ethernet
Power Supply	AC 100-240V (50-60Hz)
Dimensions (W x D x H)	39.3 x 34.3 x 42.2 inches
Printer Type	Large Format Printer
Print Technology	Inkjet
Ink Type	Dye/Pigment Reactive Ink
Media Width	8 - 24 in
Media Thickness	0.07 - 0.8 mm
Roll Paper Size	8 - 24 in
Hard Drive	No
Operating System Compatibility	Windows, Mac
Power Consumption (Operating)	140W (or less)
Media Sizes	Up to 24 inches
Operating Systems Supported	Windows, Mac
Power Consumption	140W (or less)
