Canon ImagePROGRAF iPF650 Series User Manual

Chapter 1
1-14

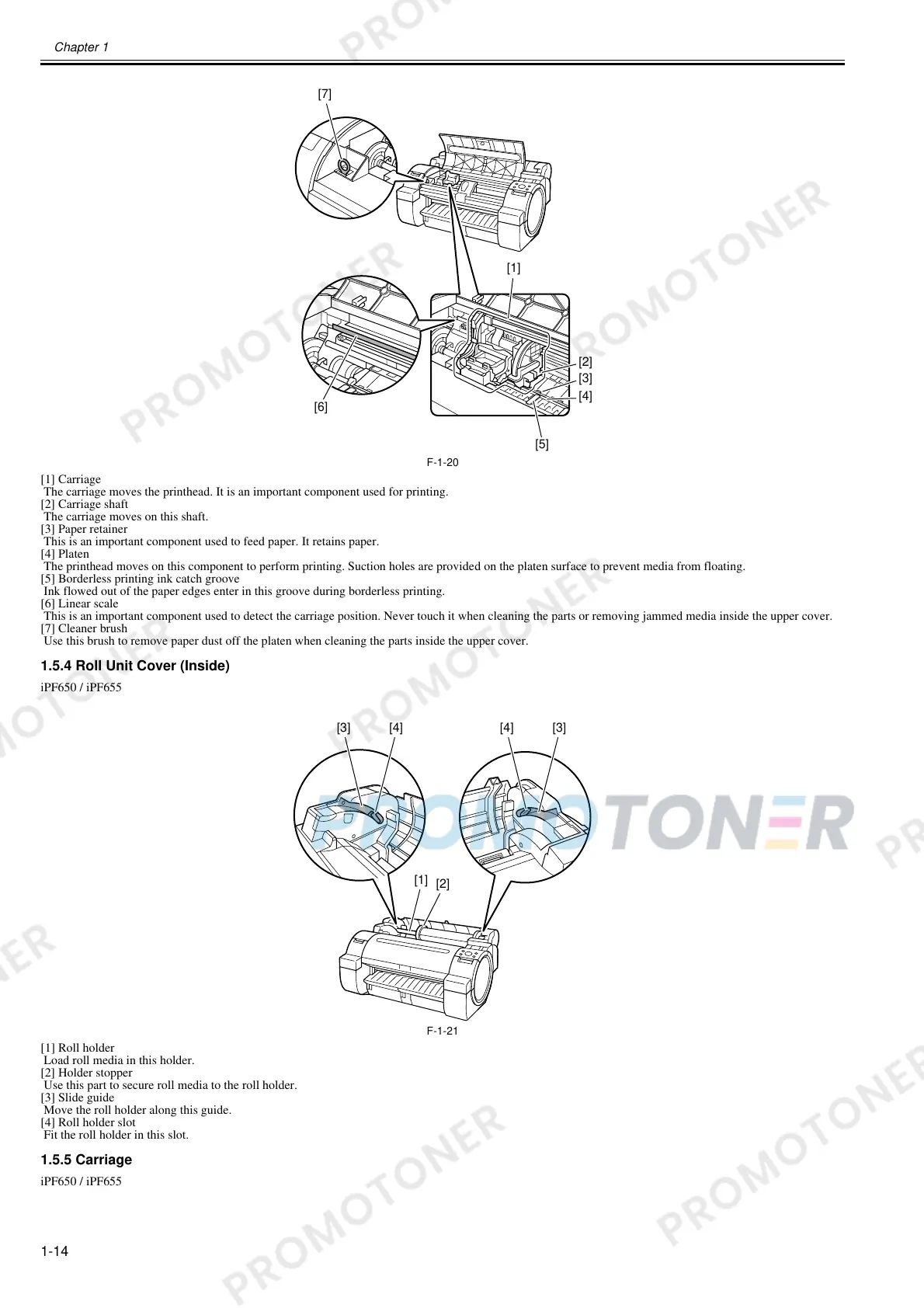

F-1-20
[1] Carriage
The carriage moves the printhead. It is an important component used for printing.
[2] Carriage shaft
The carriage moves on this shaft.
[3] Paper retainer
This is an important component used to feed paper. It retains paper.
[4] Platen
The printhead moves on this component to perform printing. Suction holes are provided on the platen surface to prevent media from floating.
[5] Borderless printing ink catch groove
Ink flowed out of the paper edges enter in this groove during borderless printing.
[6] Linear scale
This is an important component used to detect the carriage position. Never touch it when cleaning the parts or removing jammed media inside the upper cover.
[7] Cleaner brush
Use this brush to remove paper dust off the platen when cleaning the parts inside the upper cover.
1.5.4 Roll Unit Cover (Inside)
0023-5233
iPF650 / iPF655
F-1-21
[1] Roll holder
Load roll media in this holder.
[2] Holder stopper
Use this part to secure roll media to the roll holder.
[3] Slide guide
Move the roll holder along this guide.
[4] Roll holder slot
Fit the roll holder in this slot.
1.5.5 Carriage
0023-1267
iPF650 / iPF655
[2]
[3]
[4]
[1]
[7]
[5]
[6]
[2]
[1]
[3] [4] [3][4]

Canon ImagePROGRAF iPF650 Series Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Number of Ink Colors	5
Maximum Media Width	24 inches
Interface	USB 2.0, Ethernet
Weight	approximately 97 lbs
Technology	Inkjet
Number of Nozzles	15, 360
Cutter	Automatic
Memory	256 MB
Interface Type	USB 2.0, Ethernet
Power Supply	AC 100-240V (50-60Hz)
Dimensions (W x D x H)	39.3 x 34.3 x 42.2 inches
Printer Type	Large Format Printer
Print Technology	Inkjet
Ink Type	Dye/Pigment Reactive Ink
Media Width	8 - 24 in
Media Thickness	0.07 - 0.8 mm
Roll Paper Size	8 - 24 in
Hard Drive	No
Operating System Compatibility	Windows, Mac
Power Consumption (Operating)	140W (or less)
Media Sizes	Up to 24 inches
Operating Systems Supported	Windows, Mac
Power Consumption	140W (or less)
