Canon ImagePROGRAF iPF650 Series User Manual

Chapter 2
2-2

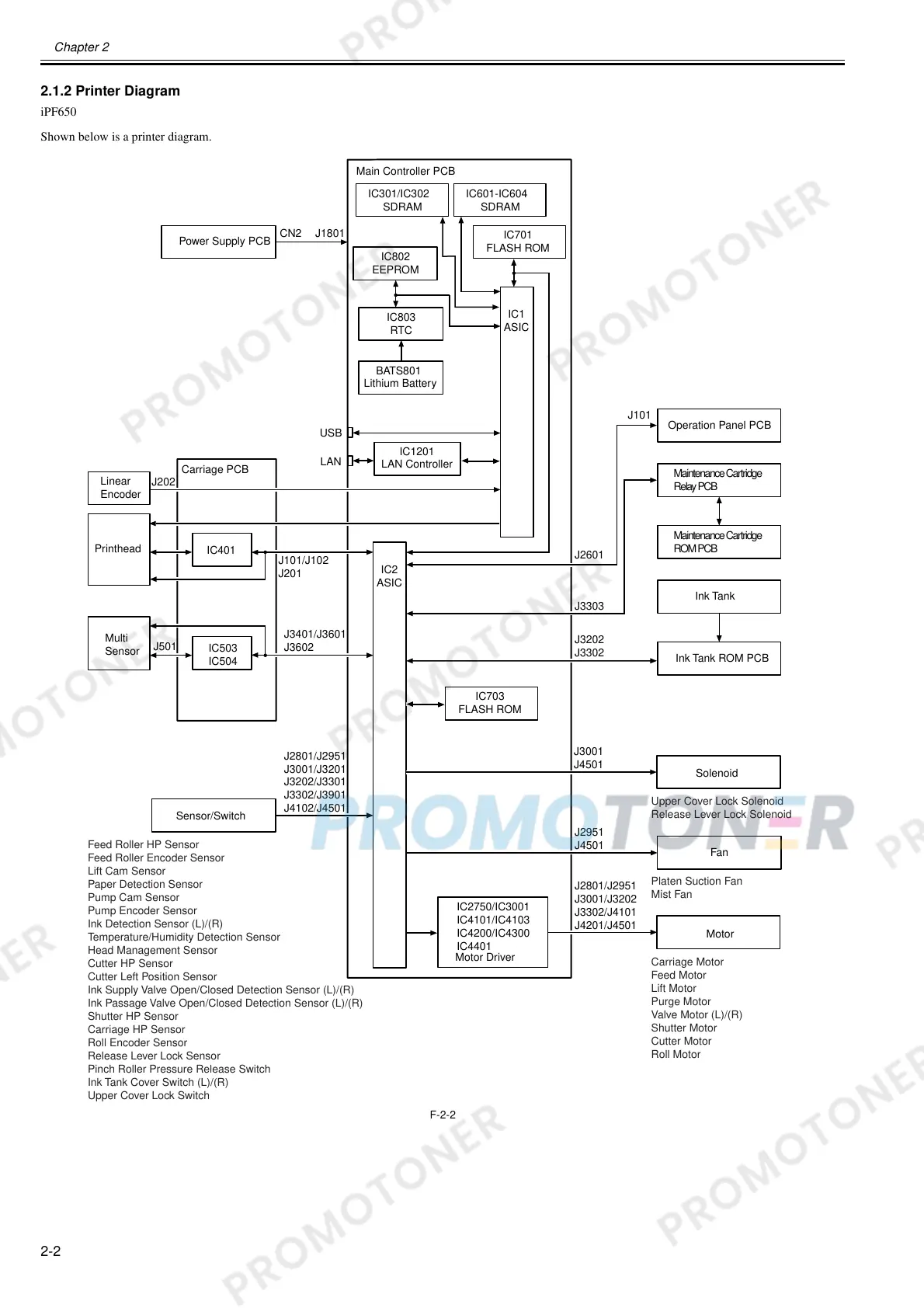

2.1.2 Printer Diagram
0023-2523
iPF650
Shown below is a printer diagram.
F-2-2
IC1
ASIC
IC2
ASIC
IC401
IC503
IC504
USB
LAN
CN2 J1801
J2601
J101
J3303
J2951
J4501
J2801/J2951
J3001/J3202
J3302/J4101
J4201/J4501
J2801/J2951
J3001/J3201
J3202/J3301
J3302/J3901
J4102/J4501
J3202
J3302
Power Supply PCB
Main Controller PCB
IC802
EEPROM
IC803
RTC
BATS801
Lithium Battery
IC701
FLASH ROM
IC601-IC604
SDRAM
Linear
Encoder
Printhead
Carriage PCB
Multi
Sensor
J101/J102
J201
J3401/J3601
J3602
J202
J501
Operation Panel PCB
Maintenance Cartridge
Relay PCB
Maintenance Cartridge
ROM PCB
Ink Tank ROM PCB
Ink Tank
Fan
Motor
Sensor/Switch
IC2750/IC3001
IC4101/IC4103
IC4200/IC4300
IC4401
Motor Driver
IC1201
LAN Controller
IC301/IC302
SDRAM
IC703
FLASH ROM
J3001
J4501
Solenoid
Feed Roller HP Sensor
Feed Roller Encoder Sensor
Lift Cam Sensor
Paper Detection Sensor
Pump Cam Sensor
Pump Encoder Sensor
Ink Detection Sensor (L)/(R)
Temperature/Humidity Detection Sensor
Head Management Sensor
Cutter HP Sensor
Cutter Left Position Sensor
Ink Supply Valve Open/Closed Detection Sensor (L)/(R)
Ink Passage Valve Open/Closed Detection Sensor (L)/(R)
Shutter HP Sensor
Carriage HP Sensor
Roll Encoder Sensor
Release Lever Lock Sensor
Pinch Roller Pressure Release Switch
Ink Tank Cover Switch (L)/(R)
Upper Cover Lock Switch
Carriage Motor
Feed Motor
Lift Motor
Purge Motor
Valve Motor (L)/(R)
Shutter Motor
Cutter Motor
Roll Motor
Platen Suction Fan
Mist Fan
Upper Cover Lock Solenoid
Release Lever Lock Solenoid

Canon ImagePROGRAF iPF650 Series Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Number of Ink Colors	5
Maximum Media Width	24 inches
Interface	USB 2.0, Ethernet
Weight	approximately 97 lbs
Technology	Inkjet
Number of Nozzles	15, 360
Cutter	Automatic
Memory	256 MB
Interface Type	USB 2.0, Ethernet
Power Supply	AC 100-240V (50-60Hz)
Dimensions (W x D x H)	39.3 x 34.3 x 42.2 inches
Printer Type	Large Format Printer
Print Technology	Inkjet
Ink Type	Dye/Pigment Reactive Ink
Media Width	8 - 24 in
Media Thickness	0.07 - 0.8 mm
Roll Paper Size	8 - 24 in
Hard Drive	No
Operating System Compatibility	Windows, Mac
Power Consumption (Operating)	140W (or less)
Media Sizes	Up to 24 inches
Operating Systems Supported	Windows, Mac
Power Consumption	140W (or less)
