Canon ImagePROGRAF iPF650 Series User Manual

Chapter 2
2-45

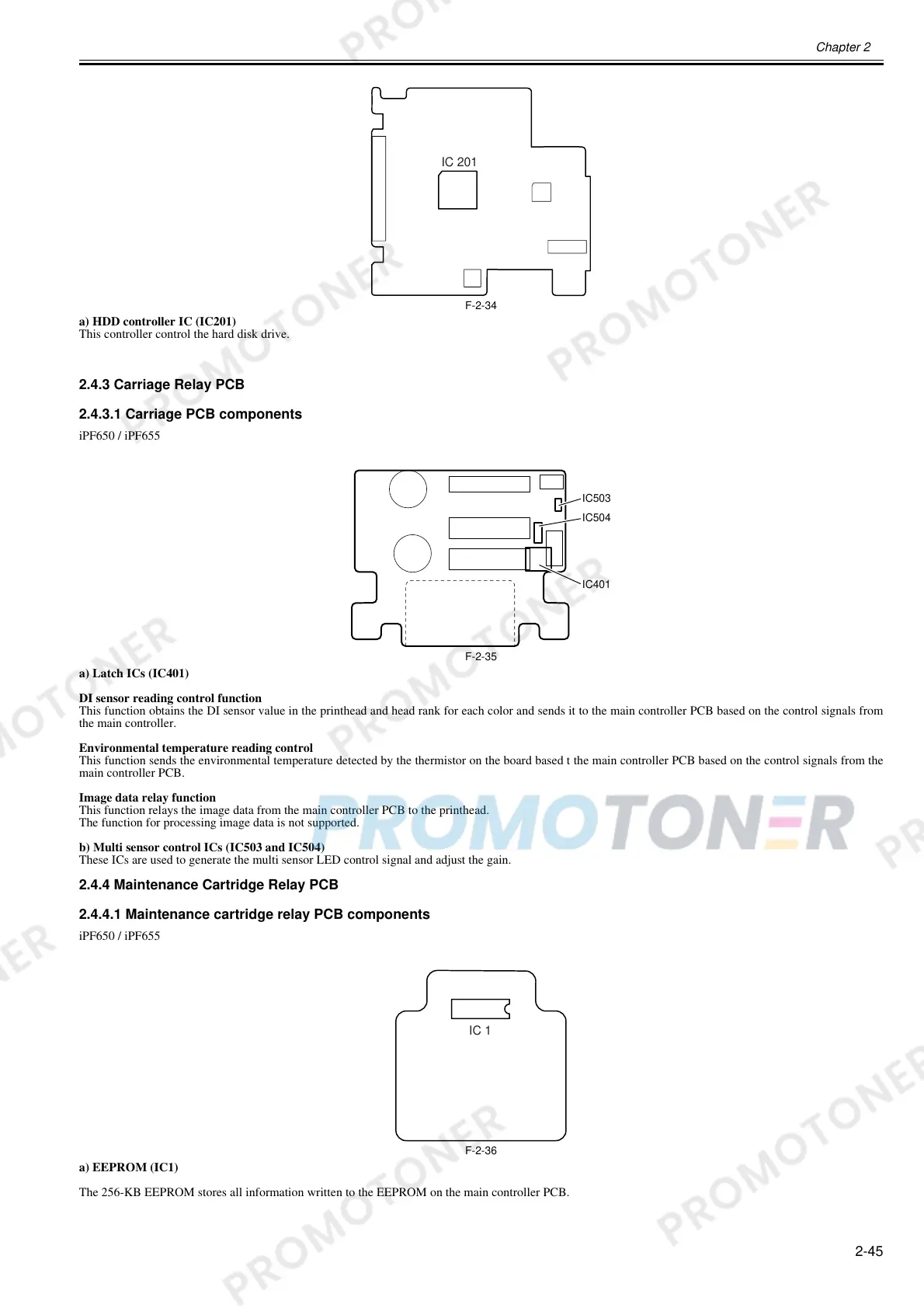

F-2-34
a) HDD controller IC (IC201)
This controller control the hard disk drive.
2.4.3 Carriage Relay PCB
2.4.3.1 Carriage PCB components
0023-2551
iPF650 / iPF655
F-2-35
a) Latch ICs (IC401)
DI sensor reading control function
This function obtains the DI sensor value in the printhead and head rank for each color and sends it to the main controller PCB based on the control signals from
the main controller.
Environmental temperature reading control
This function sends the environmental temperature detected by the thermistor on the board based t the main controller PCB based on the control signals from the
main controller PCB.
Image data relay function
This function relays the image data from the main controller PCB to the printhead.
The function for processing image data is not supported.
b) Multi sensor control ICs (IC503 and IC504)
These ICs are used to generate the multi sensor LED control signal and adjust the gain.
2.4.4 Maintenance Cartridge Relay PCB
2.4.4.1 Maintenance cartridge relay PCB components
0023-2553
iPF650 / iPF655
F-2-36
a) EEPROM (IC1)
The 256-KB EEPROM stores all information written to the EEPROM on the main controller PCB.
IC 201
IC503
IC504
IC401
IC 1

Canon ImagePROGRAF iPF650 Series Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Number of Ink Colors	5
Maximum Media Width	24 inches
Interface	USB 2.0, Ethernet
Weight	approximately 97 lbs
Technology	Inkjet
Number of Nozzles	15, 360
Cutter	Automatic
Memory	256 MB
Interface Type	USB 2.0, Ethernet
Power Supply	AC 100-240V (50-60Hz)
Dimensions (W x D x H)	39.3 x 34.3 x 42.2 inches
Printer Type	Large Format Printer
Print Technology	Inkjet
Ink Type	Dye/Pigment Reactive Ink
Media Width	8 - 24 in
Media Thickness	0.07 - 0.8 mm
Roll Paper Size	8 - 24 in
Hard Drive	No
Operating System Compatibility	Windows, Mac
Power Consumption (Operating)	140W (or less)
Media Sizes	Up to 24 inches
Operating Systems Supported	Windows, Mac
Power Consumption	140W (or less)
