Chapter 4
4-30

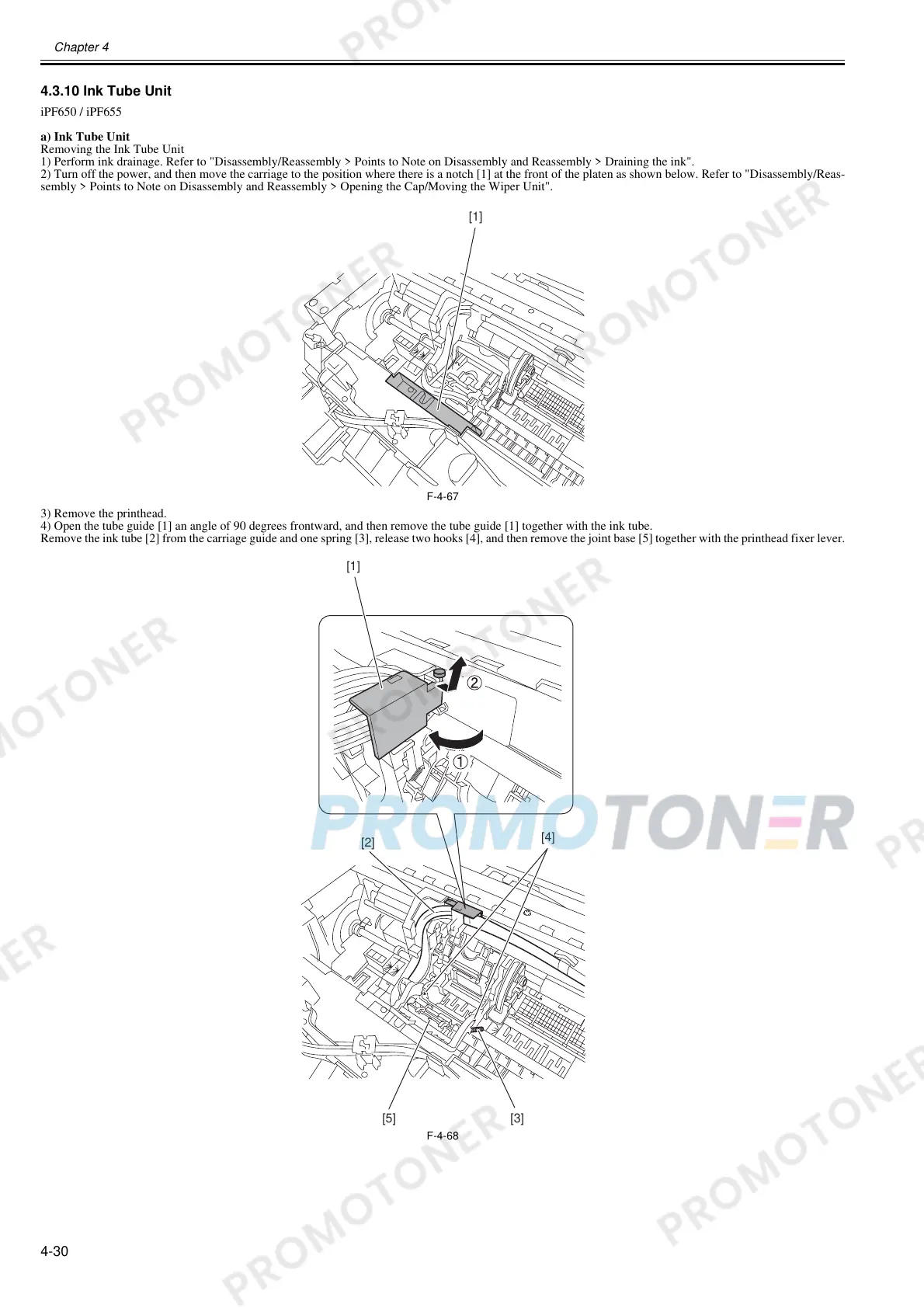

4.3.10 Ink Tube Unit
0023-3328
iPF650 / iPF655
a) Ink Tube Unit
Removing the Ink Tube Unit
1) Perform ink drainage. Refer to "Disassembly/Reassembly > Points to Note on Disassembly and Reassembly > Draining the ink".
2) Turn off the power, and then move the carriage to the position where there is a notch [1] at the front of the platen as shown below. Refer to "Disassembly/Reas-
sembly > Points to Note on Disassembly and Reassembly > Opening the Cap/Moving the Wiper Unit".
F-4-67
3) Remove the printhead.
4) Open the tube guide [1] an angle of 90 degrees frontward, and then remove the tube guide [1] together with the ink tube.
Remove the ink tube [2] from the carriage guide and one spring [3], release two hooks [4], and then remove the joint base [5] together with the printhead fixer lever.
F-4-68
[1]
[4]
[1]
[3][5]
[2]
