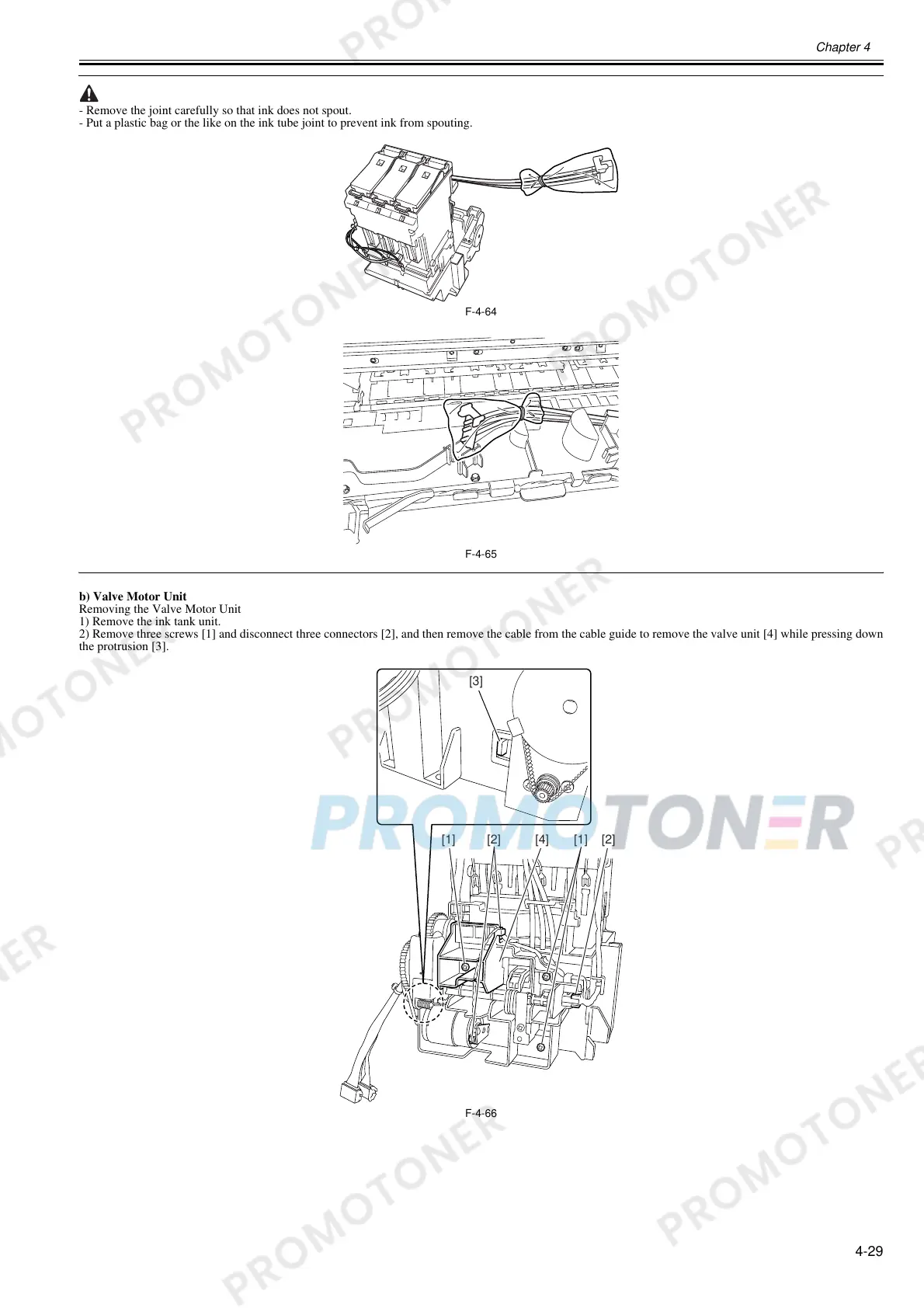

Chapter 4
4-29
- Remove the joint carefully so that ink does not spout.
- Put a plastic bag or the like on the ink tube joint to prevent ink from spouting.
F-4-64
F-4-65
b) Valve Motor Unit
Removing the Valve Motor Unit
1) Remove the ink tank unit.
2) Remove three screws [1] and disconnect three connectors [2], and then remove the cable from the cable guide to remove the valve unit [4] while pressing down
the protrusion [3].
F-4-66
[3]
[1] [1][2] [2][4]
To Next Page
