Canon ImagePROGRAF iPF650 Series - Map of the Service Mode

Chapter 7
7-2

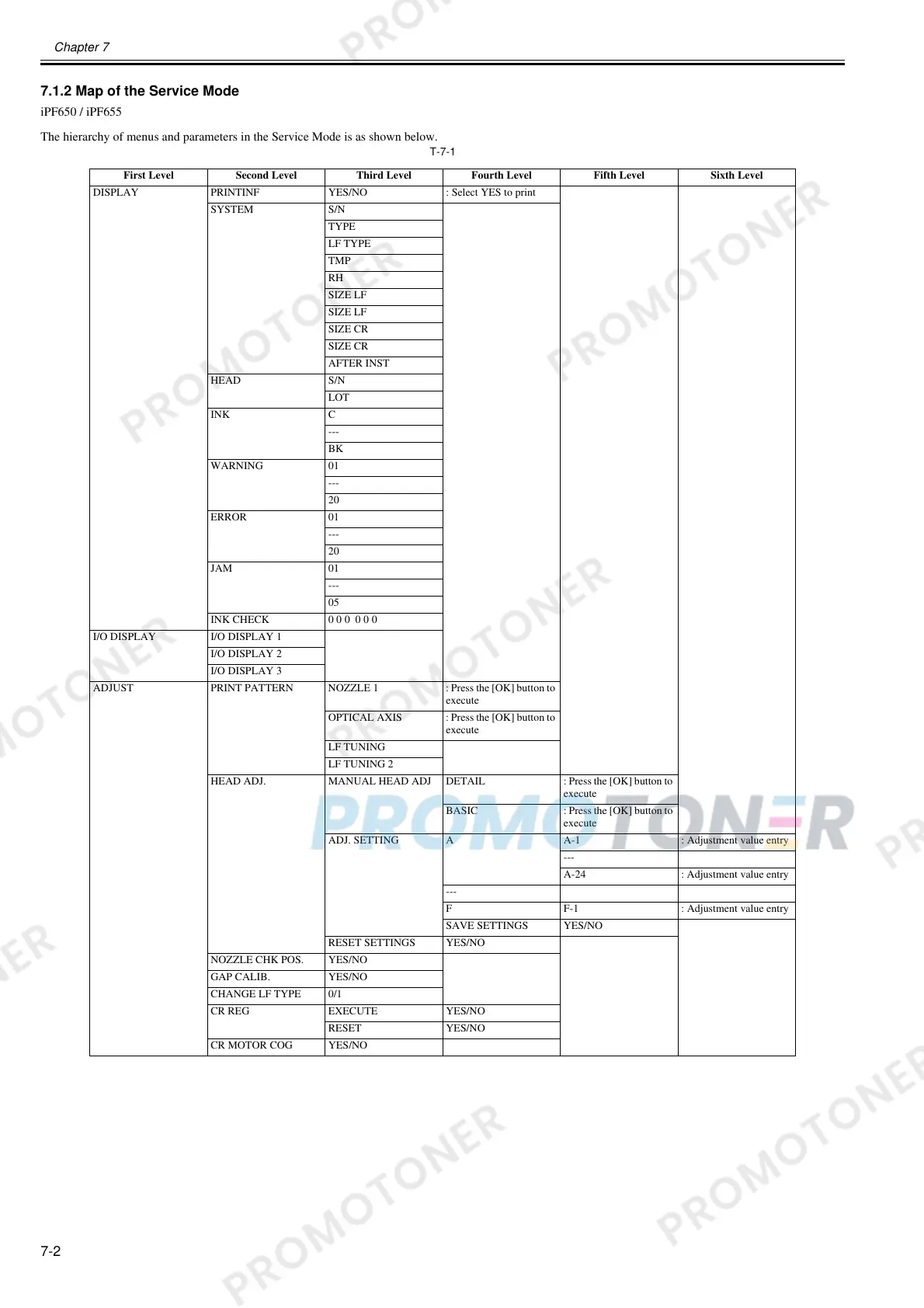

7.1.2 Map of the Service Mode
0023-5296
iPF650 / iPF655
The hierarchy of menus and parameters in the Service Mode is as shown below.
T-7-1
First Level Second Level Third Level Fourth Level Fifth Level Sixth Level
DISPLAY PRINTINF YES/NO : Select YES to print
SYSTEM S/N
TYPE
LF TYPE
TMP
RH
SIZE LF
SIZE LF
SIZE CR
SIZE CR
AFTER INST
HEAD S/N
LOT
INK C
---
BK
WARNING 01
---
20
ERROR 01
---
20
JAM 01
---
05
INK CHECK 0 0 0 0 0 0
I/O DISPLAY I/O DISPLAY 1
I/O DISPLAY 2
I/O DISPLAY 3
ADJUST PRINT PATTERN NOZZLE 1 : Press the [OK] button to
execute
OPTICAL AXIS : Press the [OK] button to
execute
LF TUNING
LF TUNING 2
HEAD ADJ. MANUAL HEAD ADJ DETAIL : Press the [OK] button to
execute
BASIC : Press the [OK] button to
execute
ADJ. SETTING A A-1 : Adjustment value entry
---
A-24 : Adjustment value entry
---
F F-1 : Adjustment value entry
SAVE SETTINGS YES/NO
RESET SETTINGS YES/NO
NOZZLE CHK POS. YES/NO
GAP CALIB. YES/NO
CHANGE LF TYPE 0/1
CR REG EXECUTE YES/NO
RESET YES/NO
CR MOTOR COG YES/NO
