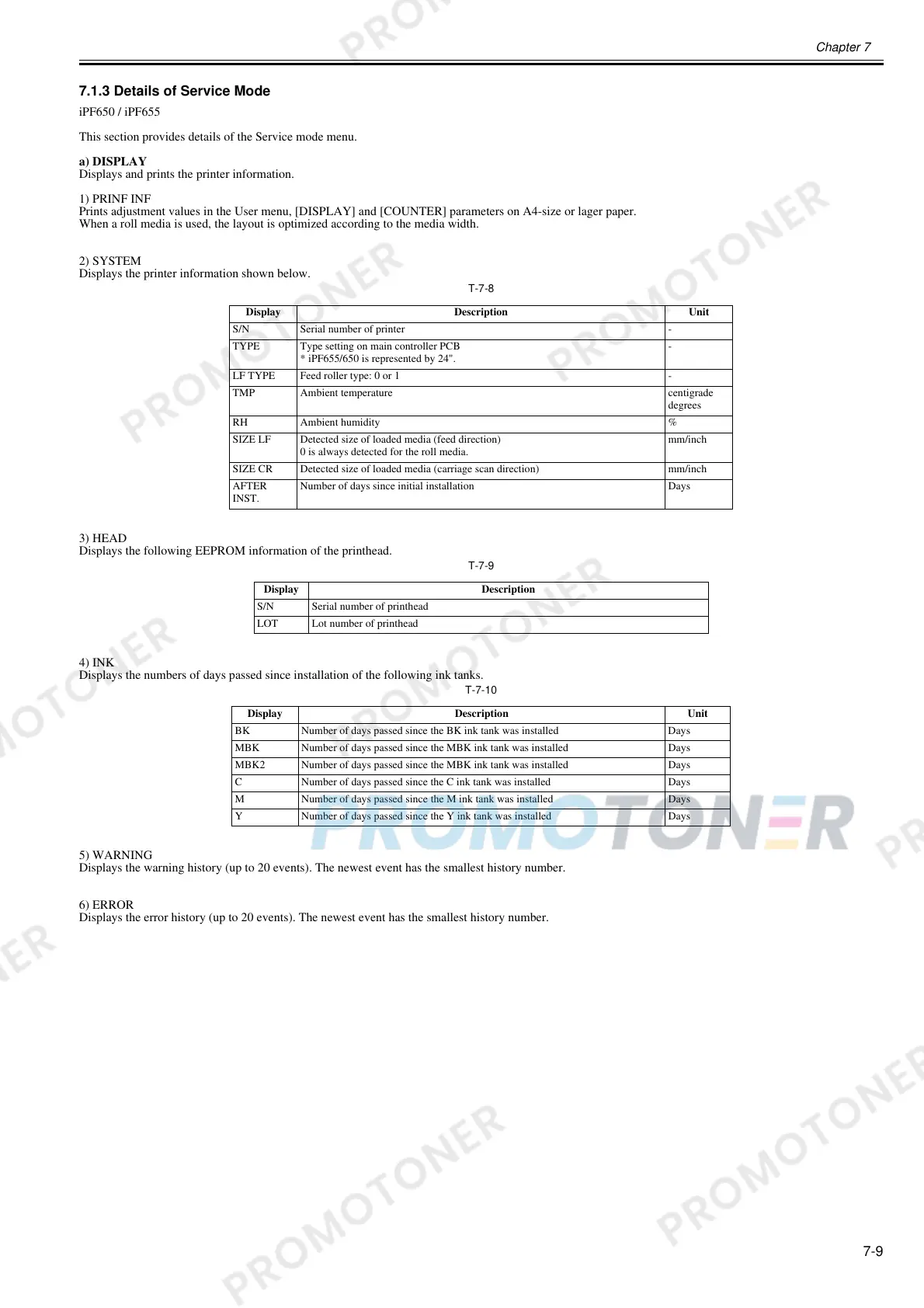

7.1.3 Details of Service Mode
0023-5341
iPF650 / iPF655
This section provides details of the Service mode menu.
a) DISPLAY
Displays and prints the printer information.
1) PRINF INF
Prints adjustment values in the User menu, [DISPLAY] and [COUNTER] parameters on A4-size or lager paper.
When a roll media is used, the layout is optimized according to the media width.
2) SYSTEM
Displays the printer information shown below.
T-7-8
3) HEAD
Displays the following EEPROM information of the printhead.
T-7-9
4) INK
Displays the numbers of days passed since installation of the following ink tanks.
T-7-10
5) WARNING
Displays the warning history (up to 20 events). The newest event has the smallest history number.
6) ERROR
Displays the error history (up to 20 events). The newest event has the smallest history number.
Display Description Unit
S/N Serial number of printer -
TYPE Type setting on main controller PCB
* iPF655/650 is represented by 24".
-
LF TYPE Feed roller type: 0 or 1 -
TMP Ambient temperature centigrade
degrees
RH Ambient humidity %
SIZE LF Detected size of loaded media (feed direction)
0 is always detected for the roll media.
mm/inch
SIZE CR Detected size of loaded media (carriage scan direction) mm/inch
AFTER
INST.
Number of days since initial installation Days
Display Description
S/N Serial number of printhead
LOT Lot number of printhead
Display Description Unit
BK Number of days passed since the BK ink tank was installed Days
MBK Number of days passed since the MBK ink tank was installed Days
MBK2 Number of days passed since the MBK ink tank was installed Days
C Number of days passed since the C ink tank was installed Days
M Number of days passed since the M ink tank was installed Days
Y Number of days passed since the Y ink tank was installed Days
