Canon ImagePROGRAF iPF650 Series User Manual

Chapter 8
8-11

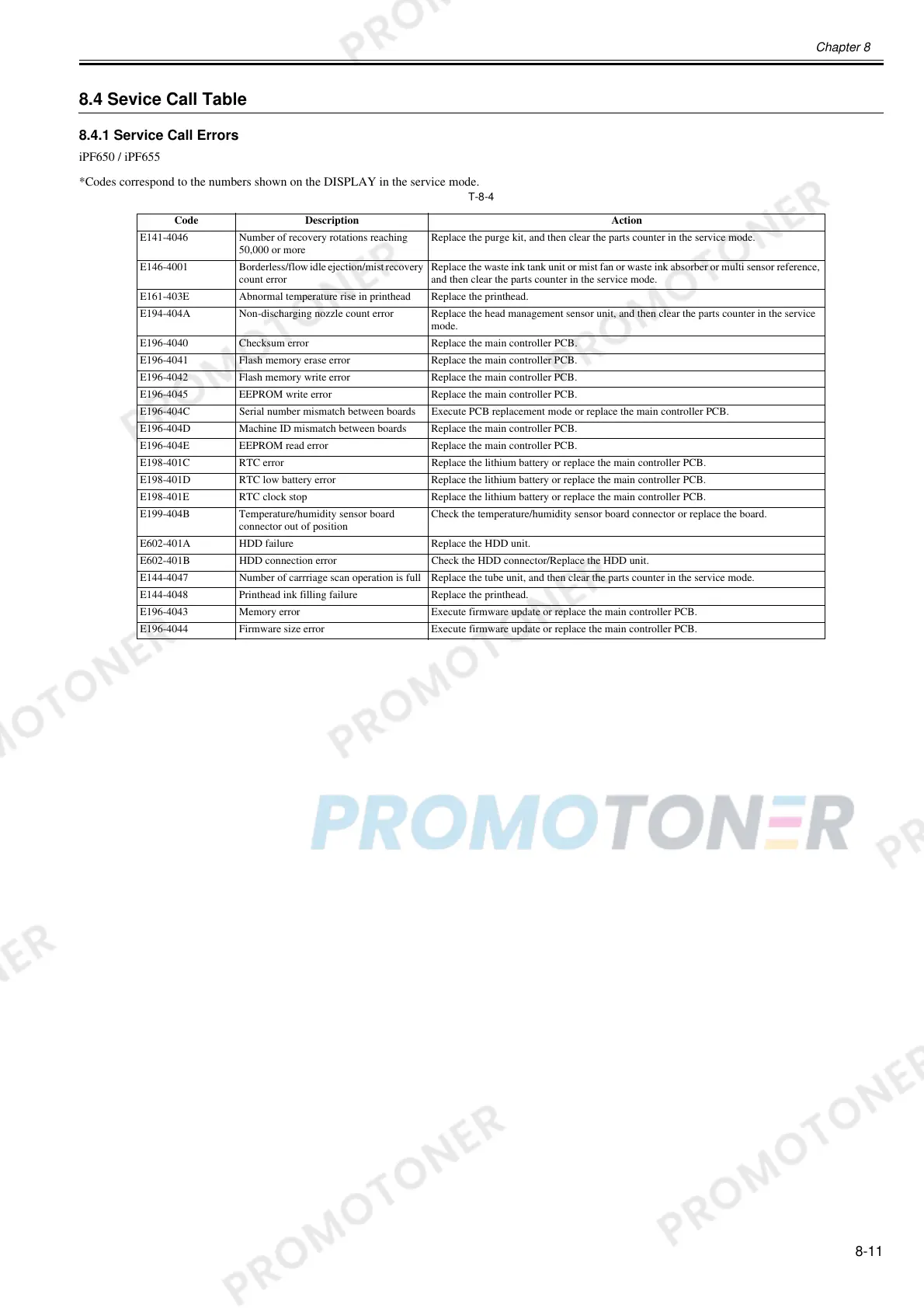

8.4 Sevice Call Table
8.4.1 Service Call Errors
0023-3208
iPF650 / iPF655
*Codes correspond to the numbers shown on the DISPLAY in the service mode.
T-8-4
Code Description Action
E141-4046 Number of recovery rotations reaching
50,000 or more
Replace the purge kit, and then clear the parts counter in the service mode.
E146-4001 Borderless/flow idle ejection/mist recovery
count error
Replace the waste ink tank unit or mist fan or waste ink absorber or multi sensor reference,
and then clear the parts counter in the service mode.
E161-403E Abnormal temperature rise in printhead Replace the printhead.
E194-404A Non-discharging nozzle count error Replace the head management sensor unit, and then clear the parts counter in the service
mode.
E196-4040 Checksum error Replace the main controller PCB.
E196-4041 Flash memory erase error Replace the main controller PCB.
E196-4042 Flash memory write error Replace the main controller PCB.
E196-4045 EEPROM write error Replace the main controller PCB.
E196-404C Serial number mismatch between boards Execute PCB replacement mode or replace the main controller PCB.
E196-404D Machine ID mismatch between boards Replace the main controller PCB.
E196-404E EEPROM read error Replace the main controller PCB.
E198-401C RTC error Replace the lithium battery or replace the main controller PCB.
E198-401D RTC low battery error Replace the lithium battery or replace the main controller PCB.
E198-401E RTC clock stop Replace the lithium battery or replace the main controller PCB.
E199-404B Temperature/humidity sensor board
connector out of position
Check the temperature/humidity sensor board connector or replace the board.
E602-401A HDD failure Replace the HDD unit.
E602-401B HDD connection error Check the HDD connector/Replace the HDD unit.
E144-4047 Number of carrriage scan operation is full Replace the tube unit, and then clear the parts counter in the service mode.
E144-4048 Printhead ink filling failure Replace the printhead.
E196-4043 Memory error Execute firmware update or replace the main controller PCB.
E196-4044 Firmware size error Execute firmware update or replace the main controller PCB.
