Canon ImagePROGRAF iPF650 Series User Manual

Chapter 2
2-36

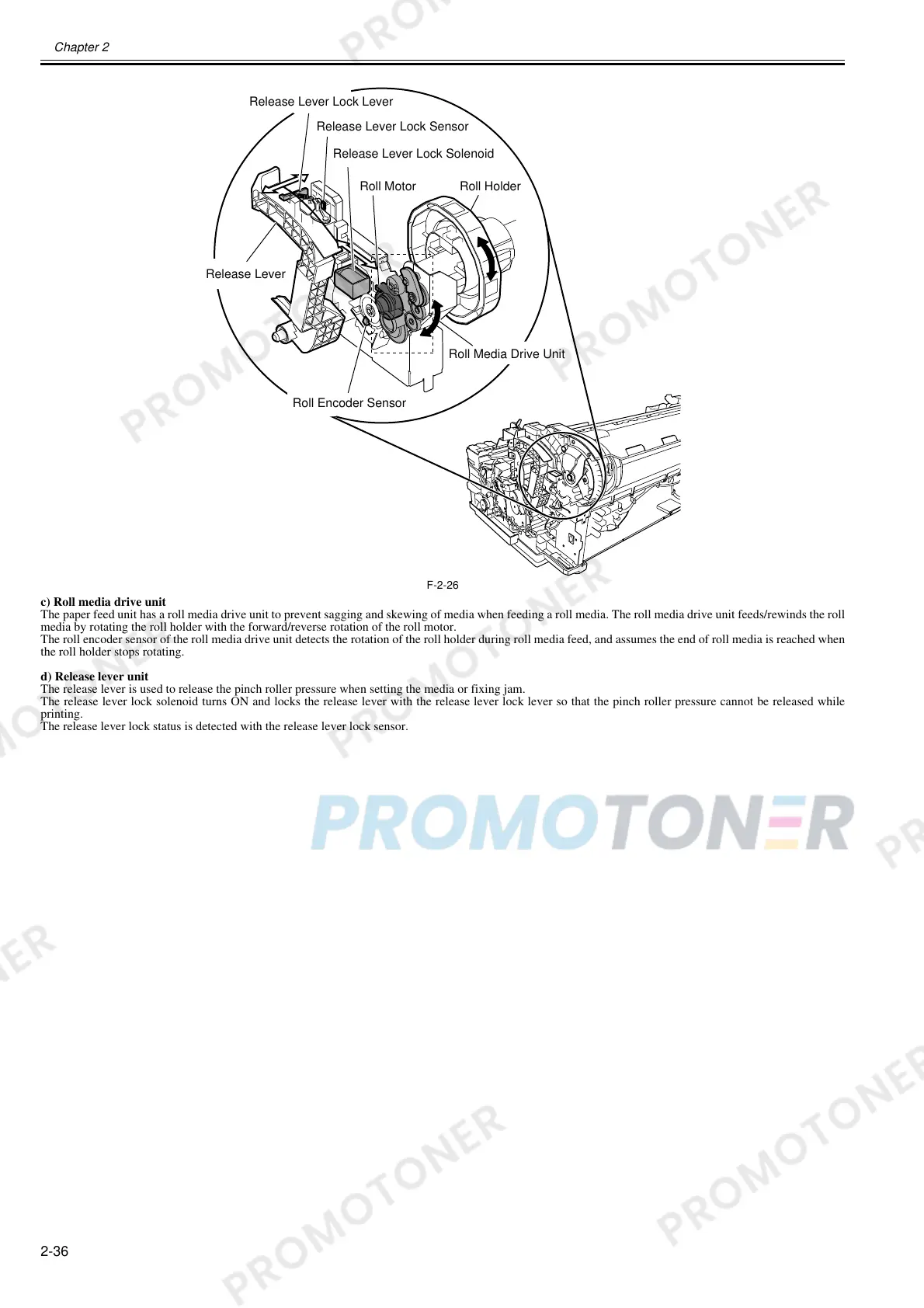

F-2-26
c) Roll media drive unit
The paper feed unit has a roll media drive unit to prevent sagging and skewing of media when feeding a roll media. The roll media drive unit feeds/rewinds the roll
media by rotating the roll holder with the forward/reverse rotation of the roll motor.
The roll encoder sensor of the roll media drive unit detects the rotation of the roll holder during roll media feed, and assumes the end of roll media is reached when
the roll holder stops rotating.
d) Release lever unit
The release lever is used to release the pinch roller pressure when setting the media or fixing jam.
The release lever lock solenoid turns ON and locks the release lever with the release lever lock lever so that the pinch roller pressure cannot be released while
printing.
The release lever lock status is detected with the release lever lock sensor.
Roll Motor
Release Lever Lock Solenoid
Release Lever Lock Sensor
Release Lever Lock Lever
Release Lever
Roll Media Drive Unit
Roll Holder
Roll Encoder Sensor

Canon ImagePROGRAF iPF650 Series Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Number of Ink Colors	5
Maximum Media Width	24 inches
Interface	USB 2.0, Ethernet
Weight	approximately 97 lbs
Technology	Inkjet
Number of Nozzles	15, 360
Cutter	Automatic
Memory	256 MB
Interface Type	USB 2.0, Ethernet
Power Supply	AC 100-240V (50-60Hz)
Dimensions (W x D x H)	39.3 x 34.3 x 42.2 inches
Printer Type	Large Format Printer
Print Technology	Inkjet
Ink Type	Dye/Pigment Reactive Ink
Media Width	8 - 24 in
Media Thickness	0.07 - 0.8 mm
Roll Paper Size	8 - 24 in
Hard Drive	No
Operating System Compatibility	Windows, Mac
Power Consumption (Operating)	140W (or less)
Media Sizes	Up to 24 inches
Operating Systems Supported	Windows, Mac
Power Consumption	140W (or less)
