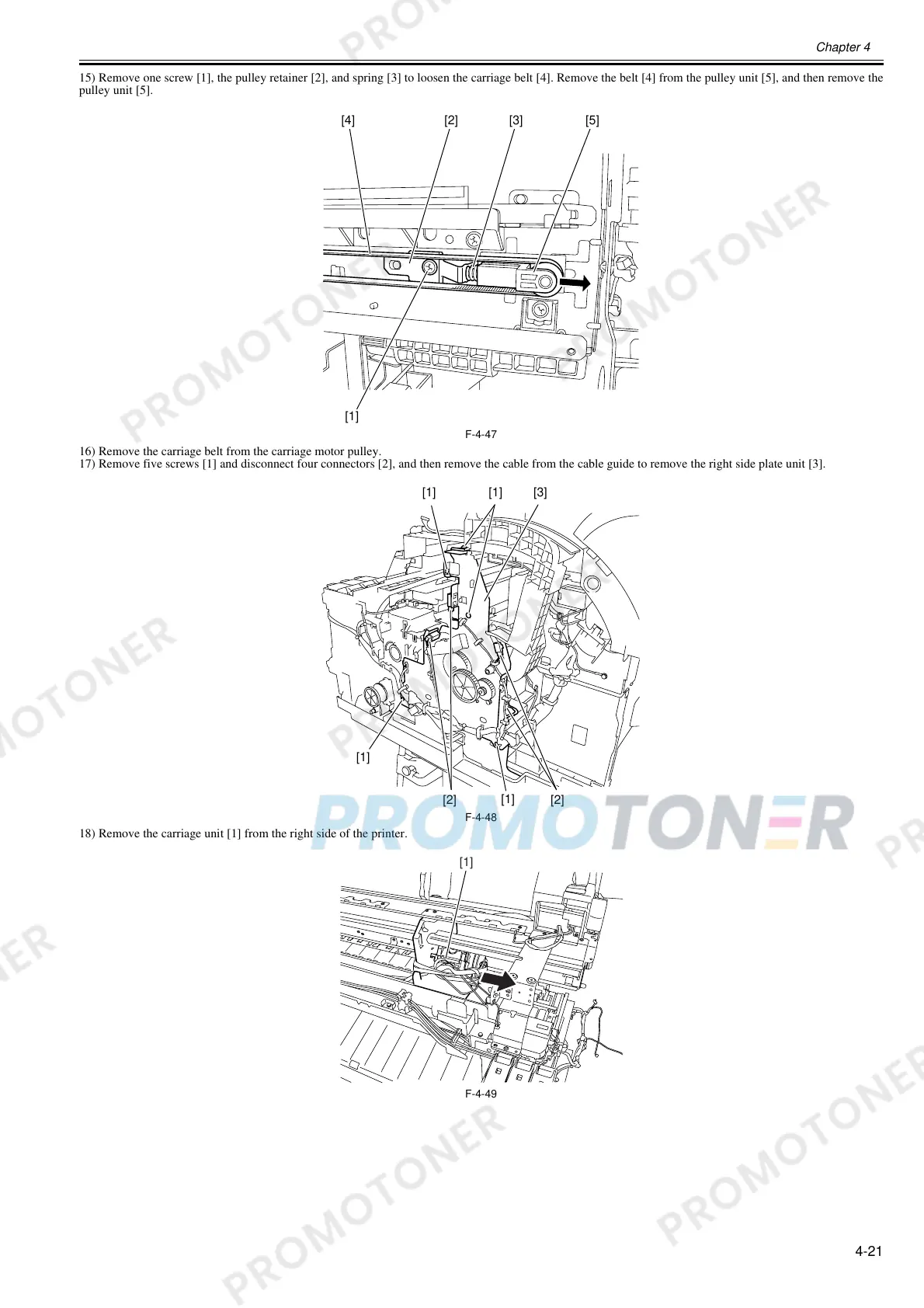

15) Remove one screw [1], the pulley retainer [2], and spring [3] to loosen the carriage belt [4]. Remove the belt [4] from the pulley unit [5], and then remove the
pulley unit [5].
F-4-47
16) Remove the carriage belt from the carriage motor pulley.
17) Remove five screws [1] and disconnect four connectors [2], and then remove the cable from the cable guide to remove the right side plate unit [3].
F-4-48
18) Remove the carriage unit [1] from the right side of the printer.
F-4-49
[5][3][2][4]
[1]
[1]
[1] [3][1]
[1]
[2] [2]
[1]
To Next Page
