Canon ImagePROGRAF iPF650 Series User Manual

Chapter 4
4-34

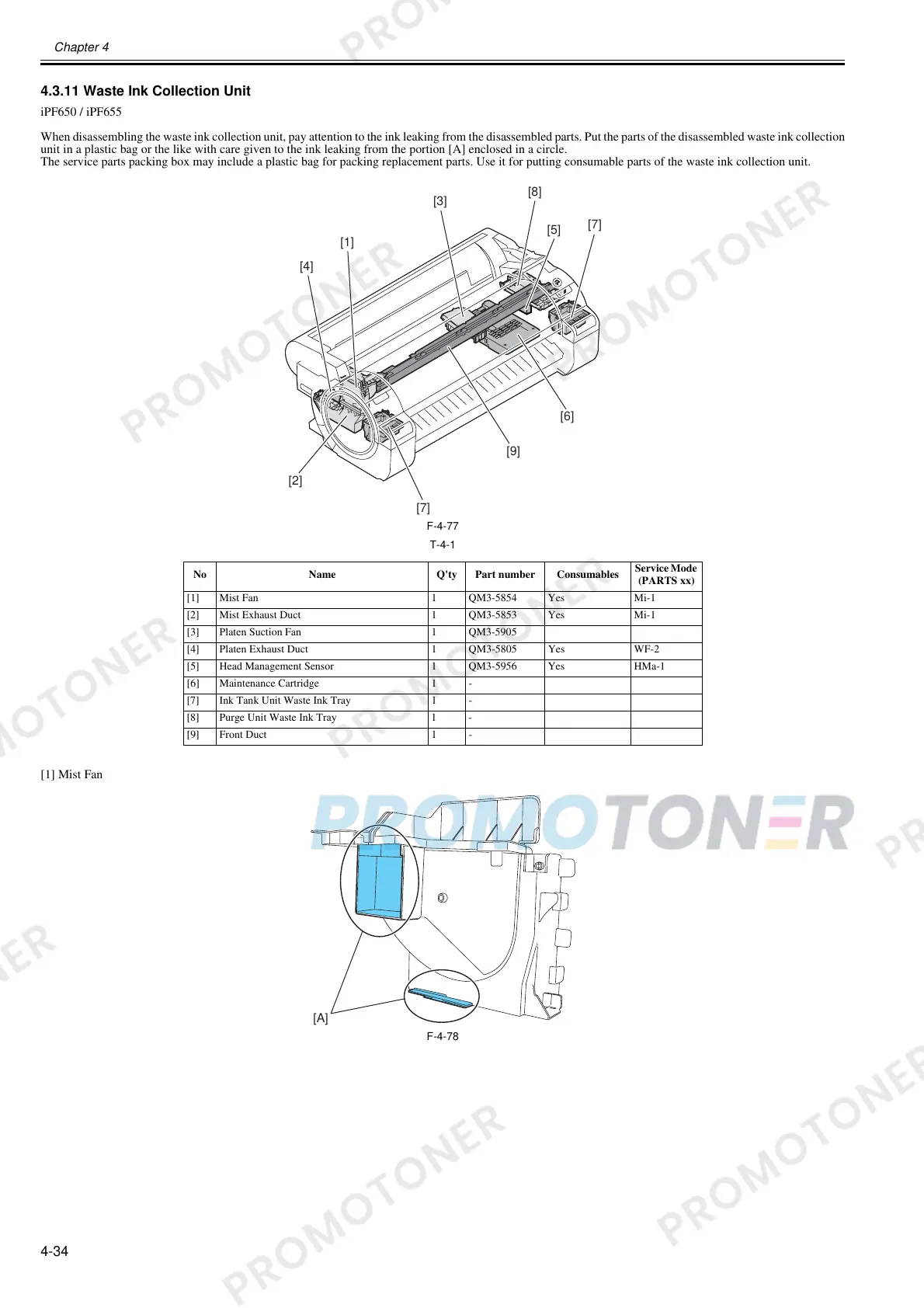

4.3.11 Waste Ink Collection Unit
0023-5290
iPF650 / iPF655
When disassembling the waste ink collection unit, pay attention to the ink leaking from the disassembled parts. Put the parts of the disassembled waste ink collection
unit in a plastic bag or the like with care given to the ink leaking from the portion [A] enclosed in a circle.
The service parts packing box may include a plastic bag for packing replacement parts. Use it for putting consumable parts of the waste ink collection unit.
F-4-77
T-4-1
[1] Mist Fan
F-4-78
No Name Q'ty Part number Consumables
Service Mode
(PARTS xx)
[1] Mist Fan 1 QM3-5854 Yes Mi-1
[2] Mist Exhaust Duct 1 QM3-5853 Yes Mi-1
[3] Platen Suction Fan 1 QM3-5905
[4] Platen Exhaust Duct 1 QM3-5805 Yes WF-2
[5] Head Management Sensor 1 QM3-5956 Yes HMa-1
[6] Maintenance Cartridge 1 -
[7] Ink Tank Unit Waste Ink Tray 1 -
[8] Purge Unit Waste Ink Tray 1 -
[9] Front Duct 1 -
[3]
[4]
[8]
[7]
[7]
[2]
[1]
[6]
[9]
[5]
[A]

Canon ImagePROGRAF iPF650 Series Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Number of Ink Colors	5
Maximum Media Width	24 inches
Interface	USB 2.0, Ethernet
Weight	approximately 97 lbs
Technology	Inkjet
Number of Nozzles	15, 360
Cutter	Automatic
Memory	256 MB
Interface Type	USB 2.0, Ethernet
Power Supply	AC 100-240V (50-60Hz)
Dimensions (W x D x H)	39.3 x 34.3 x 42.2 inches
Printer Type	Large Format Printer
Print Technology	Inkjet
Ink Type	Dye/Pigment Reactive Ink
Media Width	8 - 24 in
Media Thickness	0.07 - 0.8 mm
Roll Paper Size	8 - 24 in
Hard Drive	No
Operating System Compatibility	Windows, Mac
Power Consumption (Operating)	140W (or less)
Media Sizes	Up to 24 inches
Operating Systems Supported	Windows, Mac
Power Consumption	140W (or less)
