Chapter 1
1-6

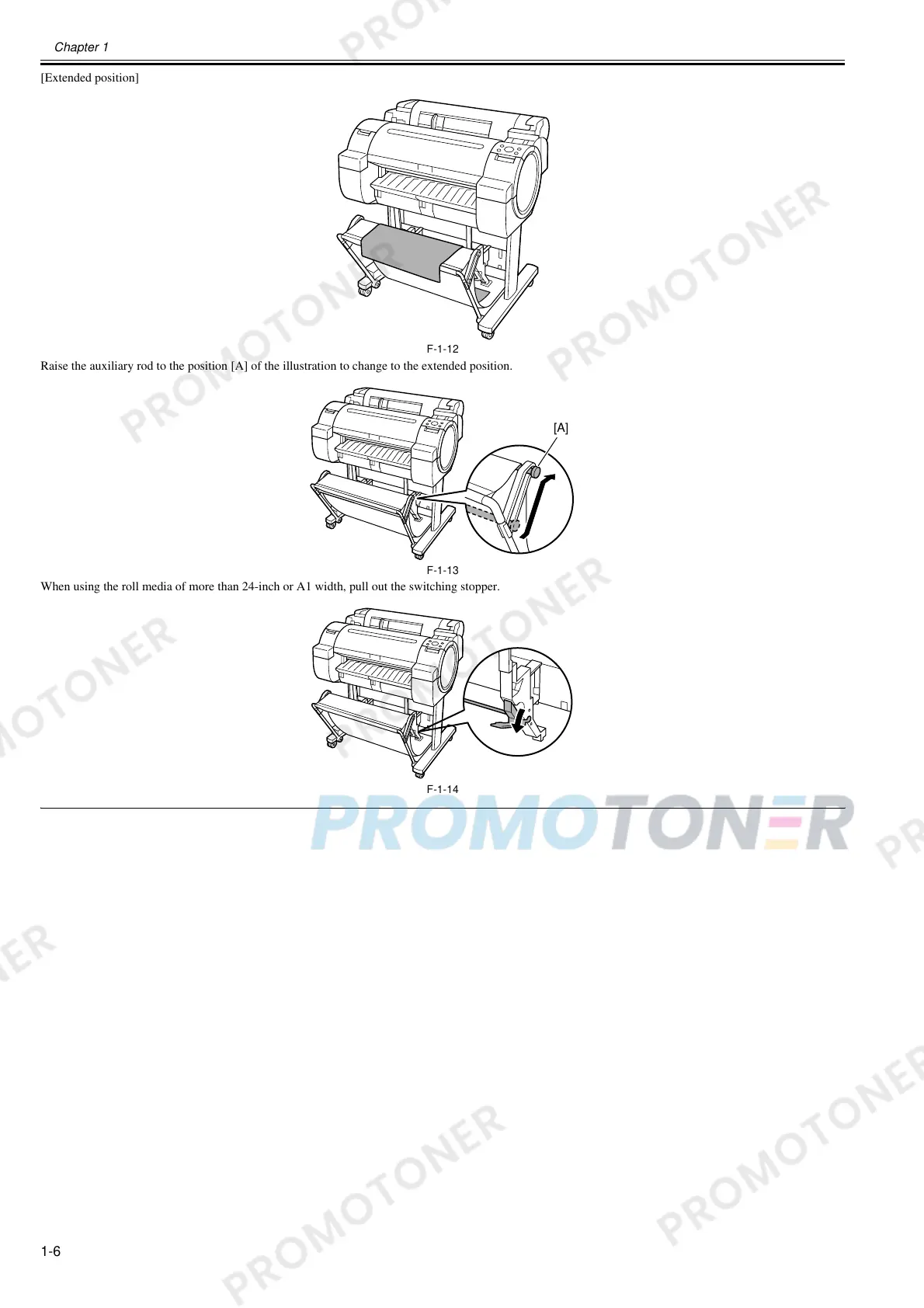

[Extended position]
F-1-12
Raise the auxiliary rod to the position [A] of the illustration to change to the extended position.
F-1-13
When using the roll media of more than 24-inch or A1 width, pull out the switching stopper.
F-1-14
[A]
