Canon ImagePROGRAF iPF650 Series User Manual

Chapter 7
7-16

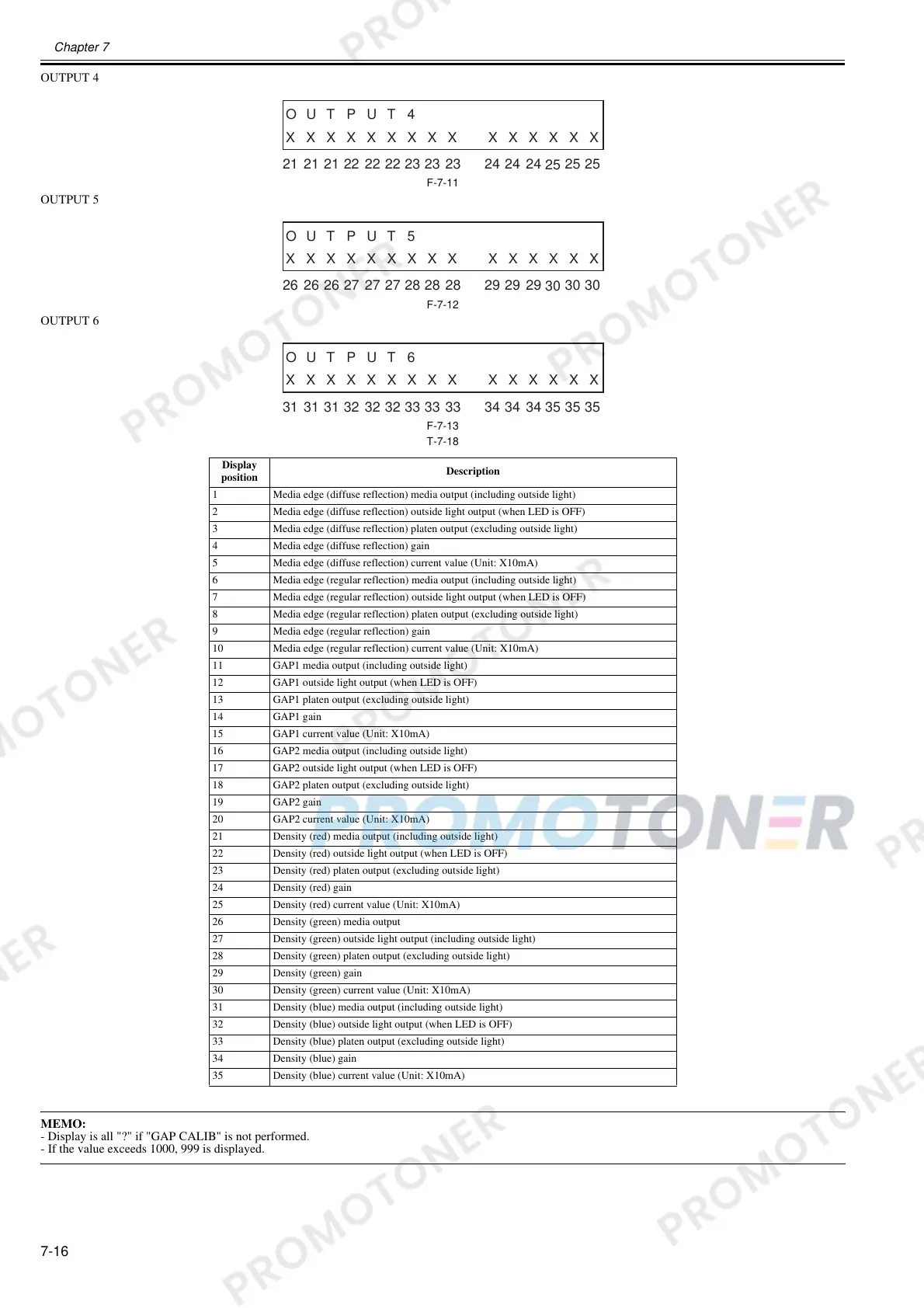

OUTPUT 4
F-7-11
OUTPUT 5
F-7-12
OUTPUT 6
F-7-13
T-7-18
MEMO:
- Display is all "?" if "GAP CALIB" is not performed.
- If the value exceeds 1000, 999 is displayed.
Display
position
Description
1 Media edge (diffuse reflection) media output (including outside light)
2 Media edge (diffuse reflection) outside light output (when LED is OFF)
3 Media edge (diffuse reflection) platen output (excluding outside light)
4 Media edge (diffuse reflection) gain
5 Media edge (diffuse reflection) current value (Unit: X10mA)
6 Media edge (regular reflection) media output (including outside light)
7 Media edge (regular reflection) outside light output (when LED is OFF)
8 Media edge (regular reflection) platen output (excluding outside light)
9 Media edge (regular reflection) gain
10 Media edge (regular reflection) current value (Unit: X10mA)
11 GAP1 media output (including outside light)
12 GAP1 outside light output (when LED is OFF)
13 GAP1 platen output (excluding outside light)
14 GAP1 gain
15 GAP1 current value (Unit: X10mA)
16 GAP2 media output (including outside light)
17 GAP2 outside light output (when LED is OFF)
18 GAP2 platen output (excluding outside light)
19 GAP2 gain
20 GAP2 current value (Unit: X10mA)
21 Density (red) media output (including outside light)
22 Density (red) outside light output (when LED is OFF)
23 Density (red) platen output (excluding outside light)
24 Density (red) gain
25 Density (red) current value (Unit: X10mA)
26 Density (green) media output
27 Density (green) outside light output (including outside light)
28 Density (green) platen output (excluding outside light)
29 Density (green) gain
30 Density (green) current value (Unit: X10mA)
31 Density (blue) media output (including outside light)
32 Density (blue) outside light output (when LED is OFF)
33 Density (blue) platen output (excluding outside light)
34 Density (blue) gain
35 Density (blue) current value (Unit: X10mA)
XXXXXXXXX XXXXXX
OUT PUT 4
21 21 21 22 22 22 23 23 23 24 24 24
25
25 25
XXXXXXXXX XXXXXX
OUT PUT 5
26 26 26 27 27 27 28 28 28 29 29 29
30
30 30
XXXXXXXXX XXXXXX
OUT PUT 6
31 31 31 32 32 32 33 33 33 34 34 34
35
35 35
