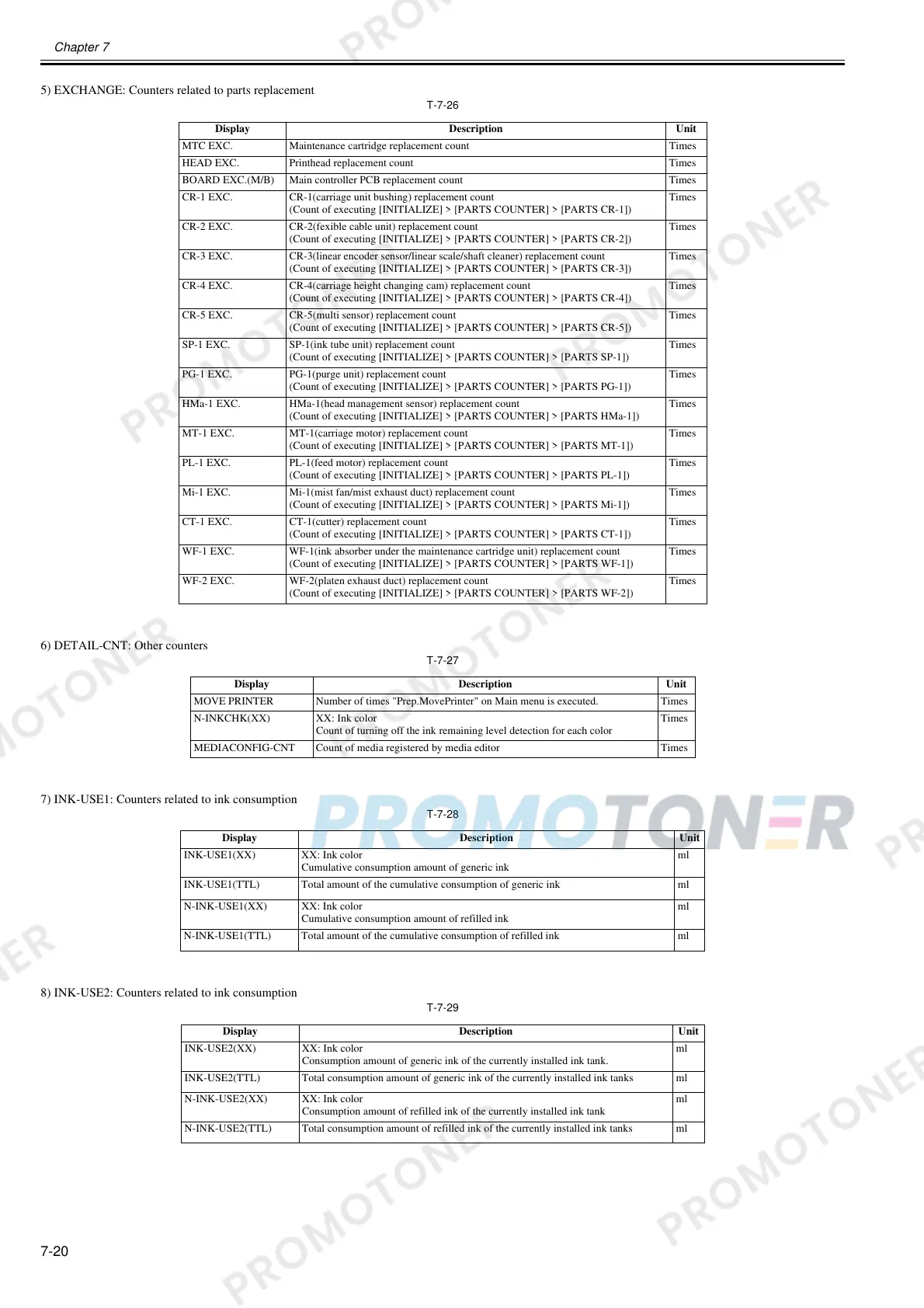

Chapter 7
7-20
5) EXCHANGE: Counters related to parts replacement
T-7-26
6) DETAIL-CNT: Other counters
T-7-27
7) INK-USE1: Counters related to ink consumption
T-7-28
8) INK-USE2: Counters related to ink consumption
T-7-29
Display Description Unit
MTC EXC. Maintenance cartridge replacement count Times
HEAD EXC. Printhead replacement count Times
BOARD EXC.(M/B) Main controller PCB replacement count Times
CR-1 EXC. CR-1(carriage unit bushing) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS CR-1])
Times
CR-2 EXC. CR-2(fexible cable unit) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS CR-2])
Times
CR-3 EXC. CR-3(linear encoder sensor/linear scale/shaft cleaner) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS CR-3])
Times
CR-4 EXC. CR-4(carriage height changing cam) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS CR-4])
Times
CR-5 EXC. CR-5(multi sensor) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS CR-5])
Times
SP-1 EXC. SP-1(ink tube unit) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS SP-1])
Times
PG-1 EXC. PG-1(purge unit) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS PG-1])
Times
HMa-1 EXC. HMa-1(head management sensor) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS HMa-1])
Times
MT-1 EXC. MT-1(carriage motor) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS MT-1])
Times
PL-1 EXC. PL-1(feed motor) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS PL-1])
Times
Mi-1 EXC. Mi-1(mist fan/mist exhaust duct) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS Mi-1])
Times
CT-1 EXC. CT-1(cutter) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS CT-1])
Times
WF-1 EXC. WF-1(ink absorber under the maintenance cartridge unit) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS WF-1])
Times
WF-2 EXC. WF-2(platen exhaust duct) replacement count
(Count of executing [INITIALIZE] > [PARTS COUNTER] > [PARTS WF-2])
Times
Display Description Unit
MOVE PRINTER Number of times "Prep.MovePrinter" on Main menu is executed. Times
N-INKCHK(XX) XX: Ink color
Count of turning off the ink remaining level detection for each color
Times
MEDIACONFIG-CNT Count of media registered by media editor Times
Display Description Unit
INK-USE1(XX) XX: Ink color
Cumulative consumption amount of generic ink
ml
INK-USE1(TTL) Total amount of the cumulative consumption of generic ink ml
N-INK-USE1(XX) XX: Ink color
Cumulative consumption amount of refilled ink
ml
N-INK-USE1(TTL) Total amount of the cumulative consumption of refilled ink ml
Display Description Unit
INK-USE2(XX) XX: Ink color
Consumption amount of generic ink of the currently installed ink tank.
ml
INK-USE2(TTL) Total consumption amount of generic ink of the currently installed ink tanks ml
N-INK-USE2(XX) XX: Ink color
Consumption amount of refilled ink of the currently installed ink tank
ml
N-INK-USE2(TTL) Total consumption amount of refilled ink of the currently installed ink tanks ml
