Canon ImagePROGRAF iPF650 Series User Manual

Chapter 2
2-20
f) Ink supply valve
The ink supply valve is located between the ink tank and ink tube to prevent ink leakage from occurring when the ink tube on the ink tank side is opened during
replacement of the ink tank.
The ink supply valve is opened and closed by the valve open/close mechanism which is driven by the valve motor.
The ink tank unit (Left/Right) consist of tank bases each of which contains ink tanks for three colors and the ink tubes for three colors.
The ink supply valve for each color is driven by the valve cam though a link. Ink supply valves for all colors are opened and closed at the same time.
g) Ink passage valve
The sub tank is separated to the two block so that the ink remaining of the sub tank can detect.The ink passage valve connect the two block of the sub tank.
The ink passage valve is opened and closed by the valve open/close mechanism which is driven by the valve motor.

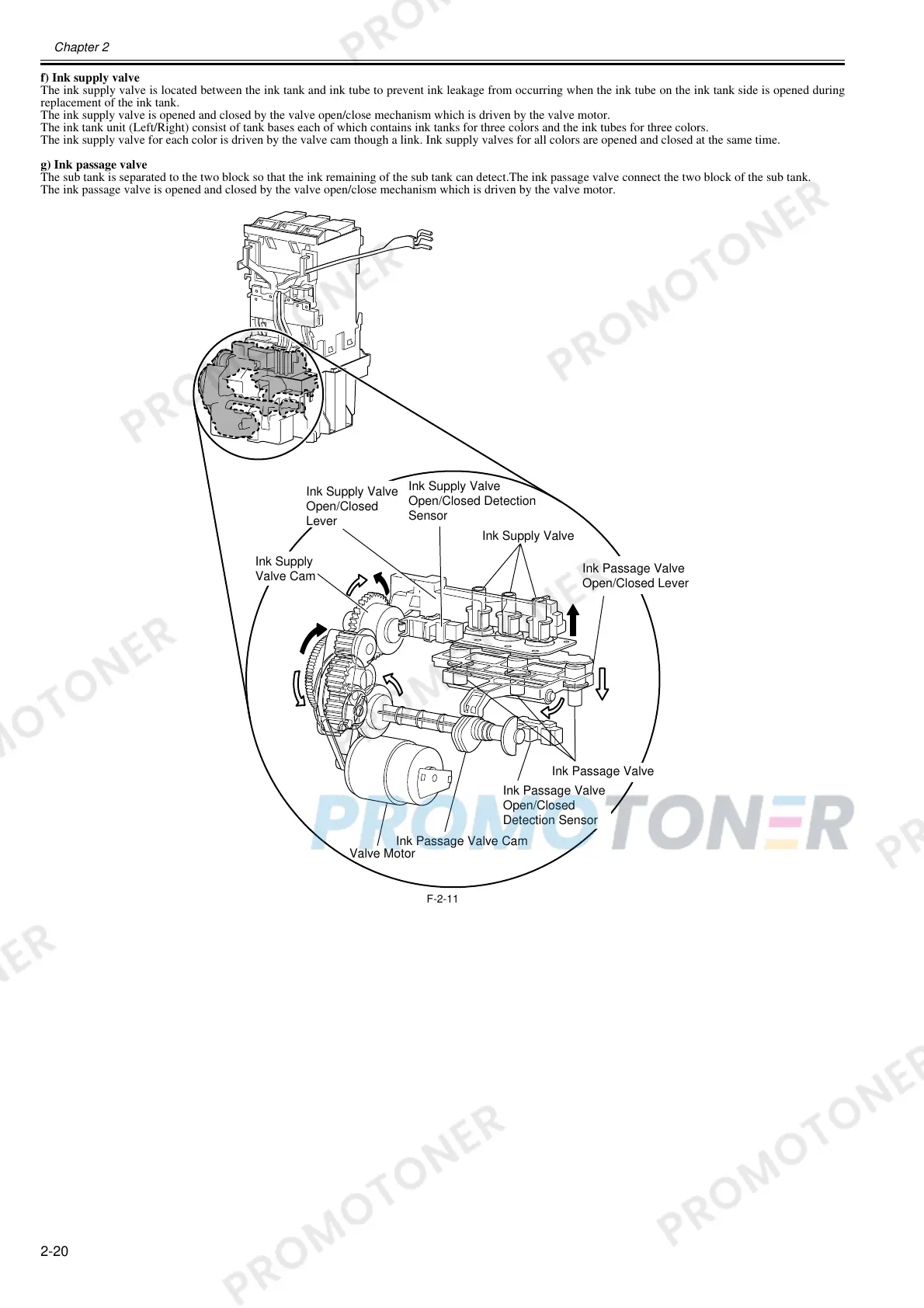

F-2-11
Ink Supply Valve
Open/Closed
Lever
Ink Supply
Valve Cam
Ink Passage Valve
Open/Closed Lever
Ink Passage Valve
Ink Supply Valve
Ink Supply Valve
Open/Closed Detection
Sensor
Ink Passage Valve
Open/Closed
Detection Sensor
Ink Passage Valve Cam
Valve Motor

Canon ImagePROGRAF iPF650 Series Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Number of Ink Colors	5
Maximum Media Width	24 inches
Interface	USB 2.0, Ethernet
Weight	approximately 97 lbs
Technology	Inkjet
Number of Nozzles	15, 360
Cutter	Automatic
Memory	256 MB
Interface Type	USB 2.0, Ethernet
Power Supply	AC 100-240V (50-60Hz)
Dimensions (W x D x H)	39.3 x 34.3 x 42.2 inches
Printer Type	Large Format Printer
Print Technology	Inkjet
Ink Type	Dye/Pigment Reactive Ink
Media Width	8 - 24 in
Media Thickness	0.07 - 0.8 mm
Roll Paper Size	8 - 24 in
Hard Drive	No
Operating System Compatibility	Windows, Mac
Power Consumption (Operating)	140W (or less)
Media Sizes	Up to 24 inches
Operating Systems Supported	Windows, Mac
Power Consumption	140W (or less)
