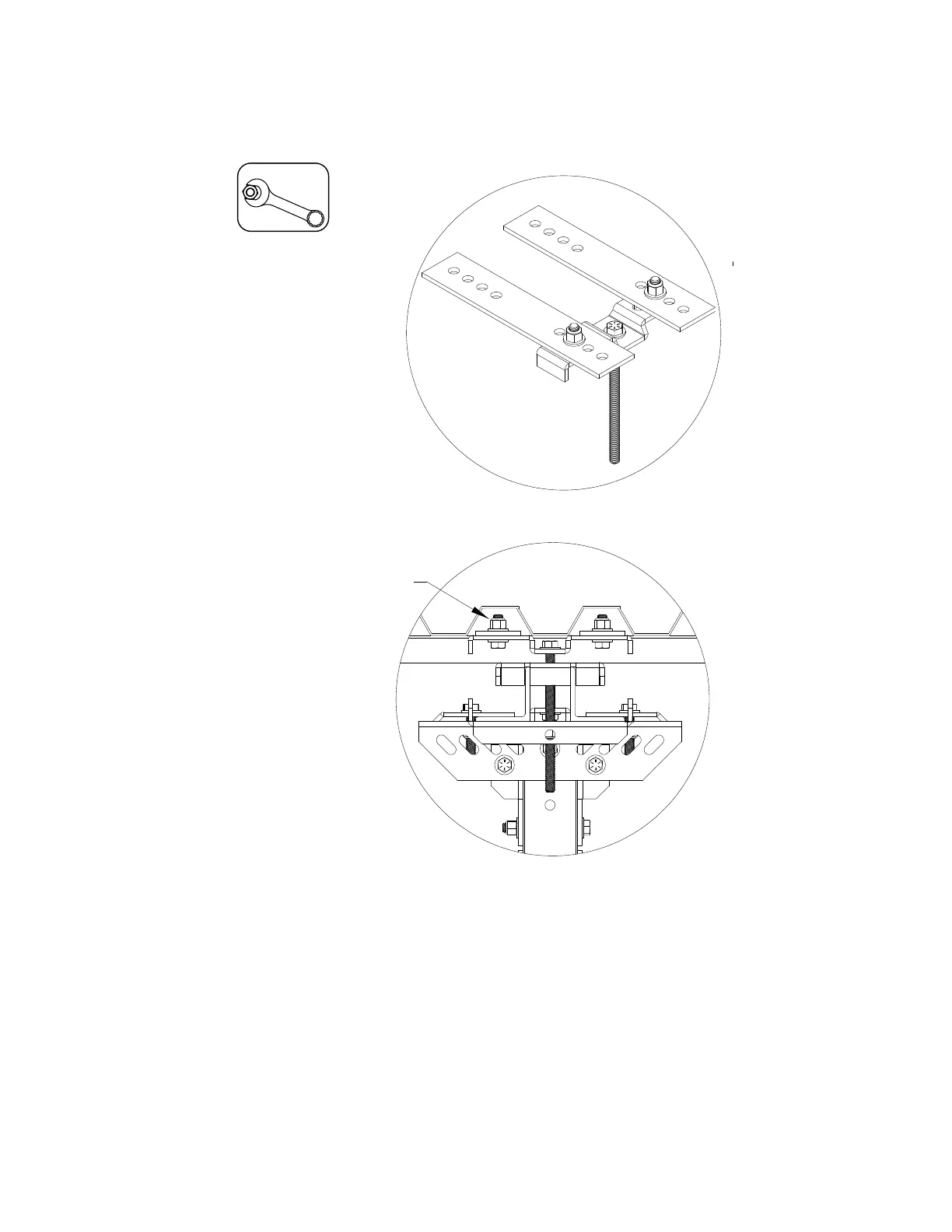

Figure 19 - OWSJ Top Mount Assembly Details

Hardware Torque

1/2” Hardware

75 Ft-lbs/101 Nm

NOTE: All hardware must

be minimum Grade 8.

Detail A

Detail B

Bolts and Nuts Should

Mount Between Roof Gap
