Installing an MPC Open XPIO expander
Carrier® ChillerVu™
(OPN-PSM-MPCXPE) Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation and Start-up Guide 13 All rights reserved

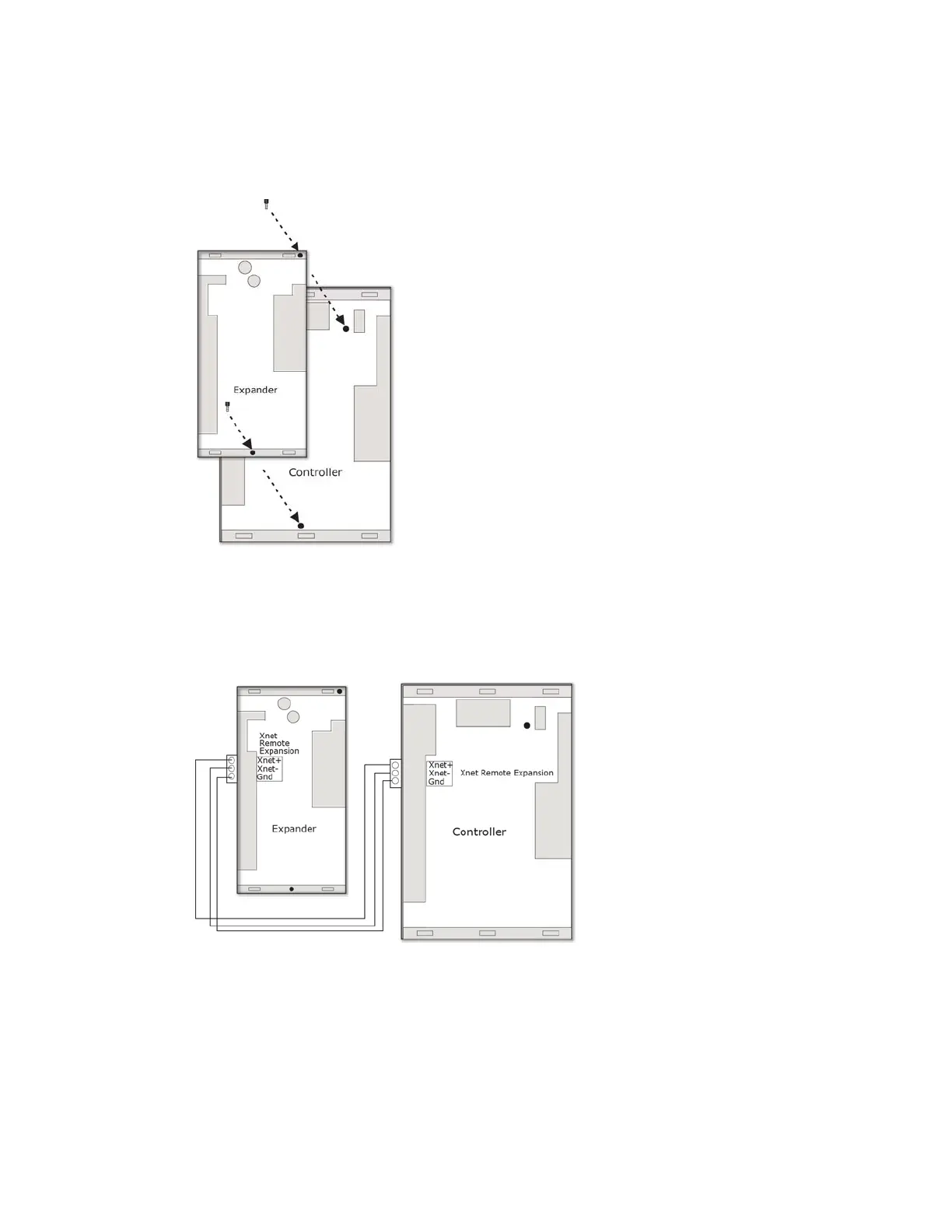

You can mount the expander in one of the following locations:
• On top of a Carrier® ChillerVu™, using the two allen cap screws provided. Connect
to
,
to
,
to
.
• Beside the Carrier® ChillerVu™, by screwing the expander into an enclosed panel using the mounting slots on
the coverplate. Leave about 2 in. (5 cm) on each side of the expander for wiring. Mounting hole dimensions
1.5" from the left (width) by 10.2" (height). Connect
to
,
to
,
to
. You can
mount the expander up to 100 ft away from the controller.
