Configuring BACnet Device Instance and network number
Carrier® ChillerVu™
(OPN-PSM-MPCXPE) Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation and Start-up Guide 41 All rights reserved
To change the BACnet settings:
1 Enter the BACnet selection# from the menu. Type the new setting and click
Enter
. The new setting will appear
on the
Router Configuration
screen.
2 Cycle power to the router for the new settings to take effect.
NOTE
If the BACnet MS/TP or ARC156 network number of the router is assigned and not auto-generated,
and the Open controllers connected to that router are set such that their BACnet settings are auto-generated,
then the Open controller BACnet settings will be auto-generated based on the assigned MS/TP network
number in the router:
Example
A router's BACnet MS/TP or ARC156 network has been assigned to 200.
If the connected Open controllers are using autogenerate, then their settings will be:
BACnet MS/TP Network Number = 200
BACnet Device Instance Number = 200yy
BACnet Device Instance Name = device200yy
BACnet MS/TP MAC Address = yy

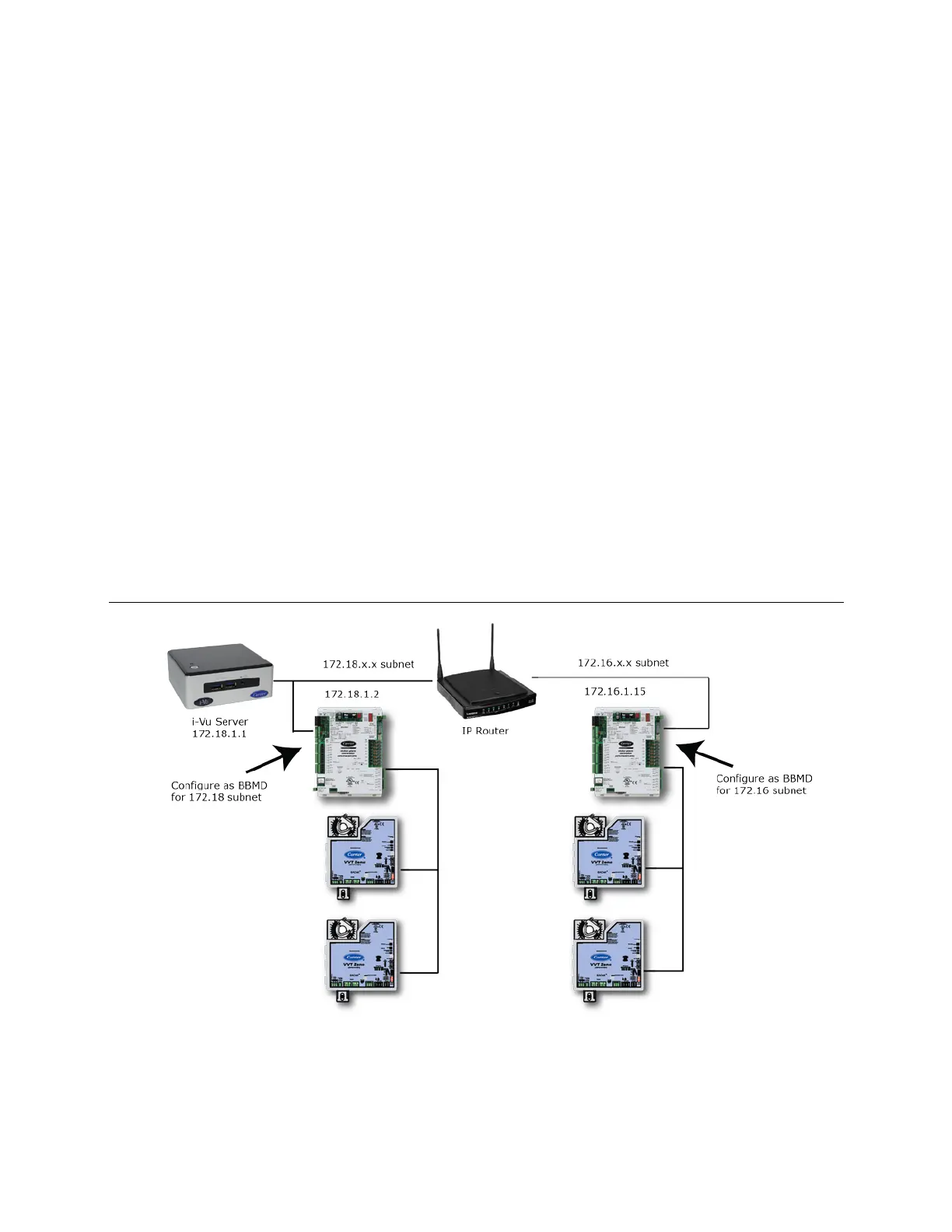

To set up BACnet Broadcast Management Devices (BBMDs)
