Carrier ChillerVu - To Connect to the Lonworks Network Using the Lonworks Option Card; To Connect to the Lonworks Network Using the SLTA-10

Wiring for third party protocols
Carrier® ChillerVu™
(OPN-PSM-MPCXPE) Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation and Start-up Guide 29 All rights reserved
To connect to the LonWorks network using the LonWorks Option Card
1 Turn
off
the Carrier® ChillerVu™'s power.
2 Set DIP switch 5 to
TPI
.

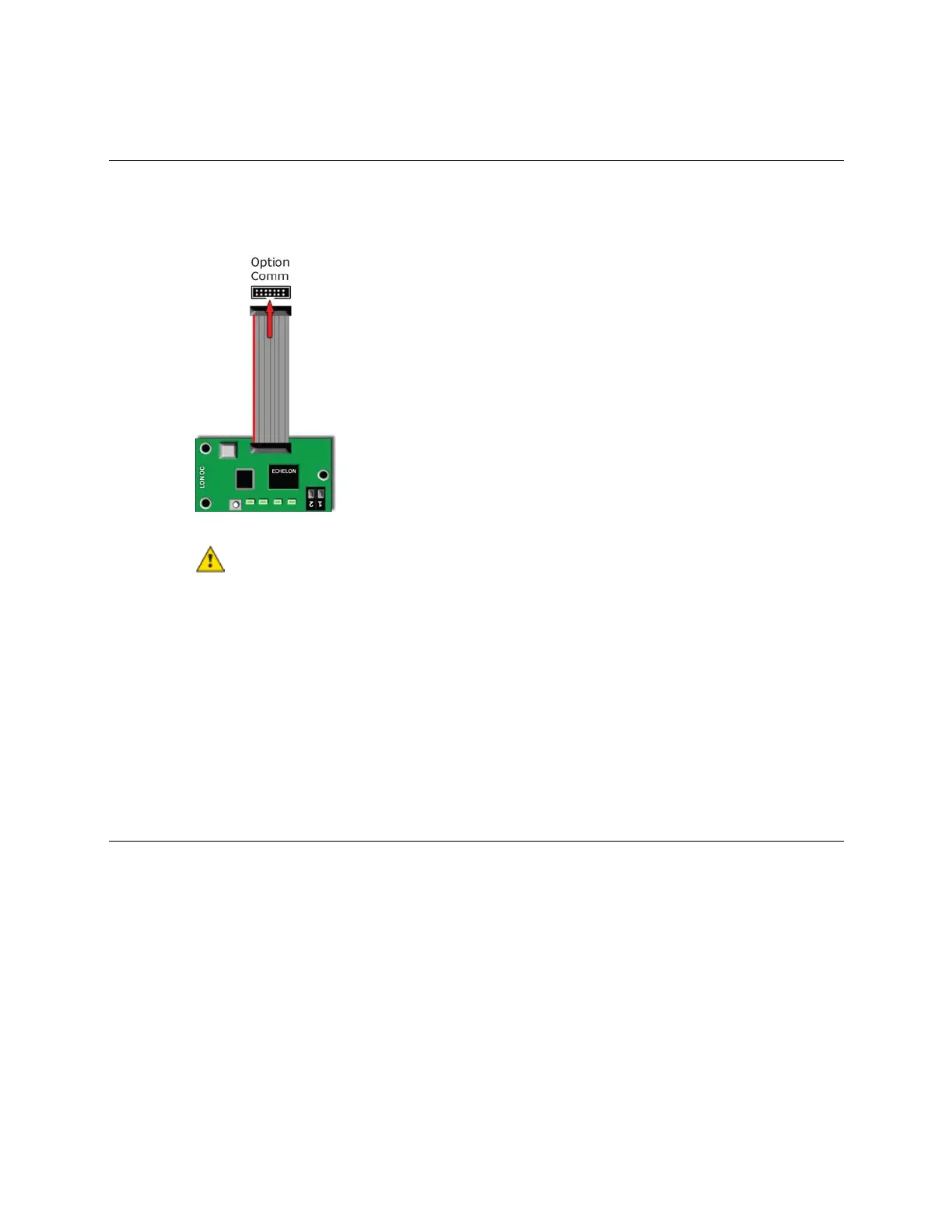

3 Plug the 's ribbon cable into the Option Comm port on the Carrier® ChillerVu™.
CAUTIONS
○ You
MUST
ground the Carrier® ChillerVu™ to earth ground, using the Rnet Gnd connector.
○ The controller must be
OFF
before being connected.
4 Connect LON network to pins
1
and
2
on the Option Card.
5 Turn
on
the Carrier® ChillerVu™'s power.
To connect to the LonWorks network using the SLTA-10
1 Turn
off
the Carrier® ChillerVu™'s power.
2 Set DIP switch 5 to
TPI
.
3 Set the jumper to EIA-232.
