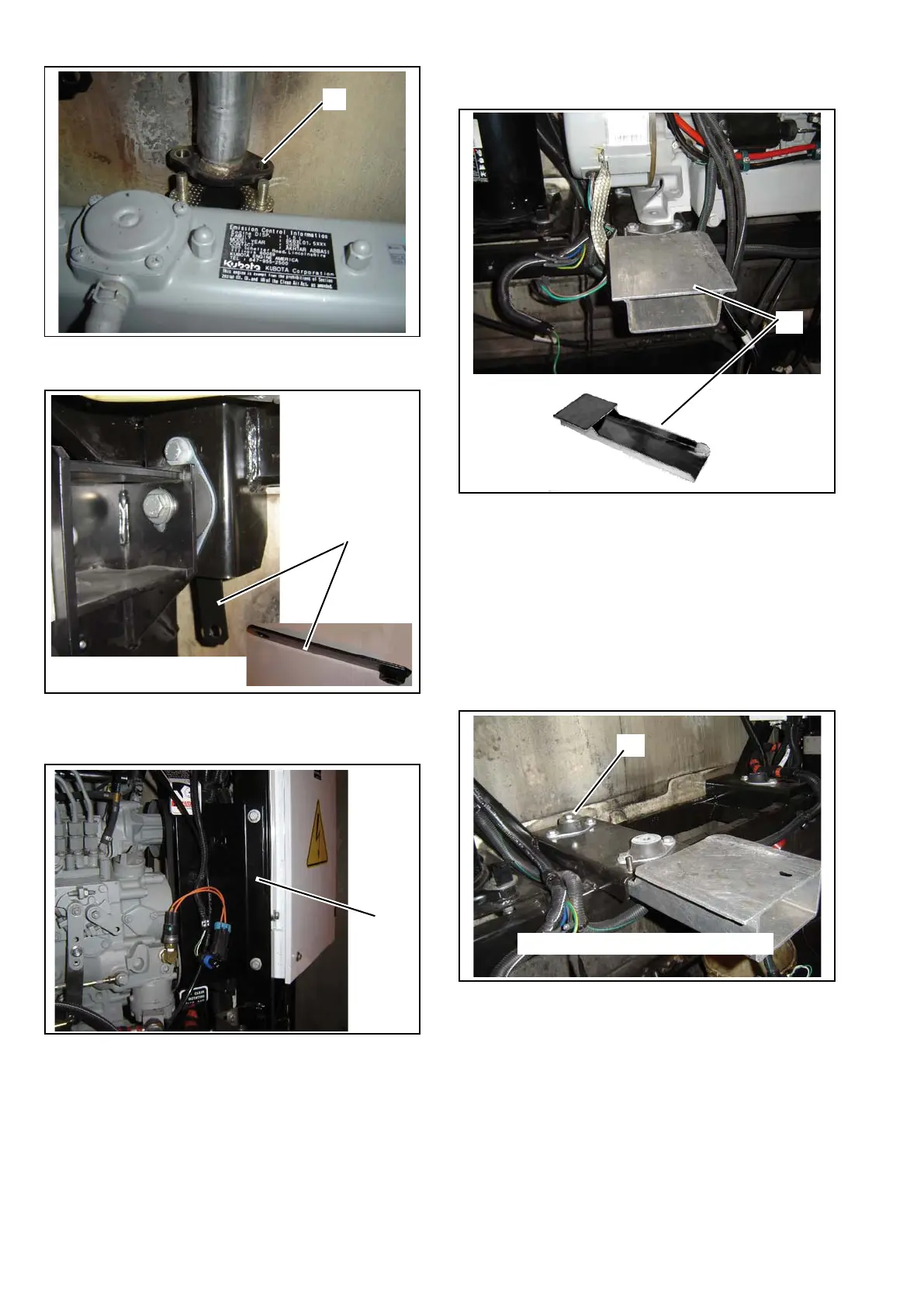

5. Remove the jam nuts (5) and gasket from the ex-
haust connection.
EXTENSION
BRACKET
6. Remove the upper engine mount. Note the mount-
ing nut is welded to an extension bracket for ease
of removal/installation.
7
7. Remove the tie-wraps holding connectors to the
belt guard and then remove belt guard.
8
8. Slide the generator removal bracket (Carrier
Transicold part number SKM-5670) into the rear
engine support channel.
NOTE
For additional security, the generator removal
bracket may be modified to add a slot under
the rear mount for installation of an engine
mounting bolt. If this slot has been added, in-
sert the bolt as shown in step 9. If slot is not
added, proceed to step 10.
9
VIEW WITH ENGINE REMOVED
9. Insert an engine mounting bolt in the rear mount
and trough the slot in the engine support to prevent
movement of the support.
