3-CONTROLSANDINSTRUMENTS
•

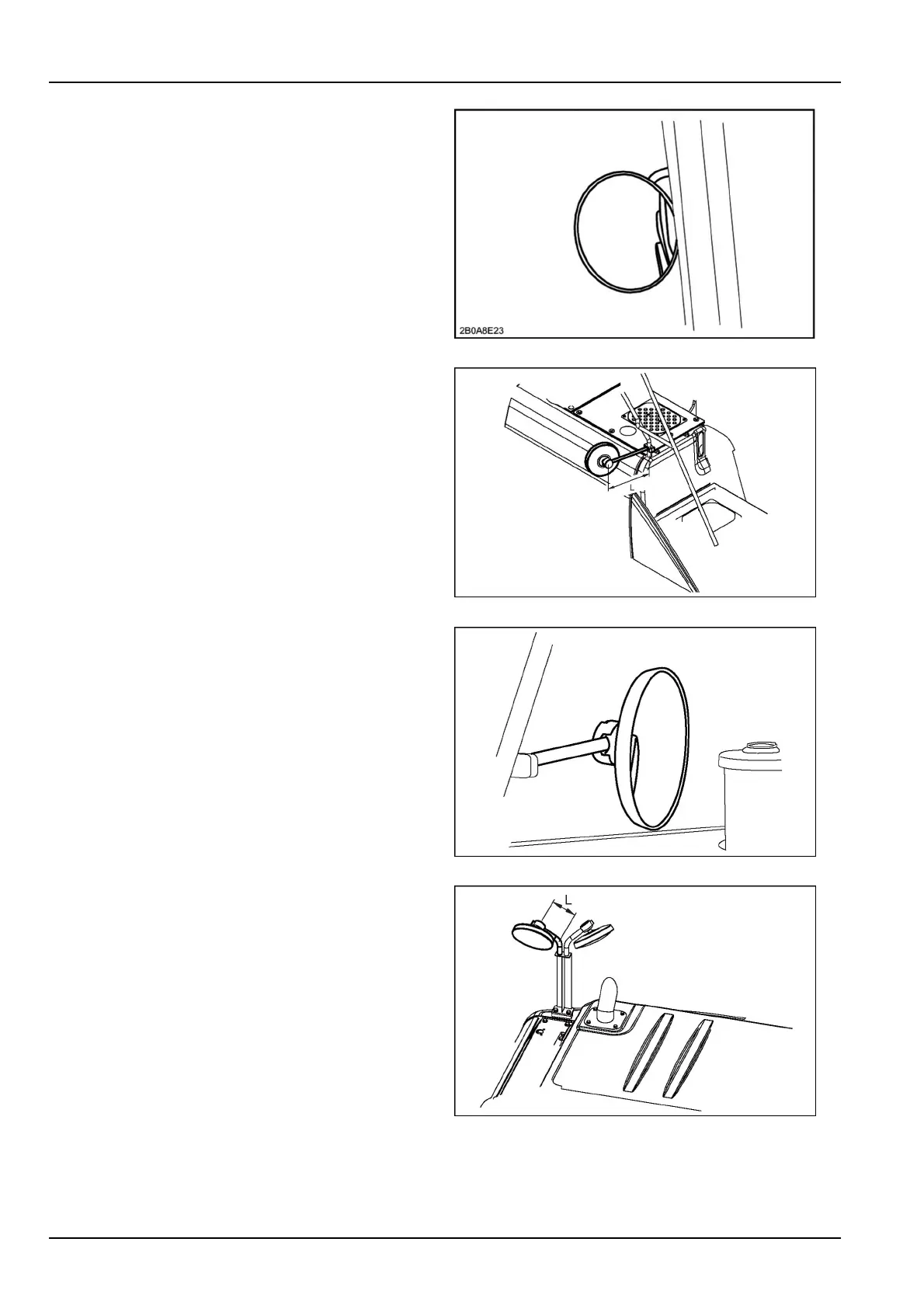

Asshownintherightillustration,adjustthemirrortosee
thesideofthemachineinthemirror.
Tighteningtorque:bolttotightthebodyofthemirror:
4.5-5.5N·m(3.4-4.0lbft)
2B0A8E234
MirrorB(Frontrighthouse)
Adjustthemirrortoseetherightrearedgeofthe
machinebysight.
•
Installthemirrorinthepositionintherightillustration.
L:335mm(13.2in)
SMIL15CEXX684AB5
•
Asshownintherightillustration,adjustthemirrortosee
thesideofthemachineinthemirror.
Tighteningtorque:bolttotightthebodyofthemirror:
4.5-5.5N·m(3.4-4.0lbft)
SMIL15CEXX685AA6
MirrorC(Counterweightright)
Adjustthemirrortoseetherightrearedgeofthe
machinebysight.
•
Installthemirrorinthepositionintherightillustration.
L:155mm(6.102in)
SMIL15CEXX686AB7
3-64
