CASE CONSTRUCTION CX160C - Machine Orientation

1-GENERALINFORMATION
Machineorientation
Theterms"Right-hand","Left-hand","Front"and"Rear"
areusedinthismanualtoindicatethesidesastheyare
seenfromtheoperator'sseatwhenthecabisoverthe
idlerwheels.

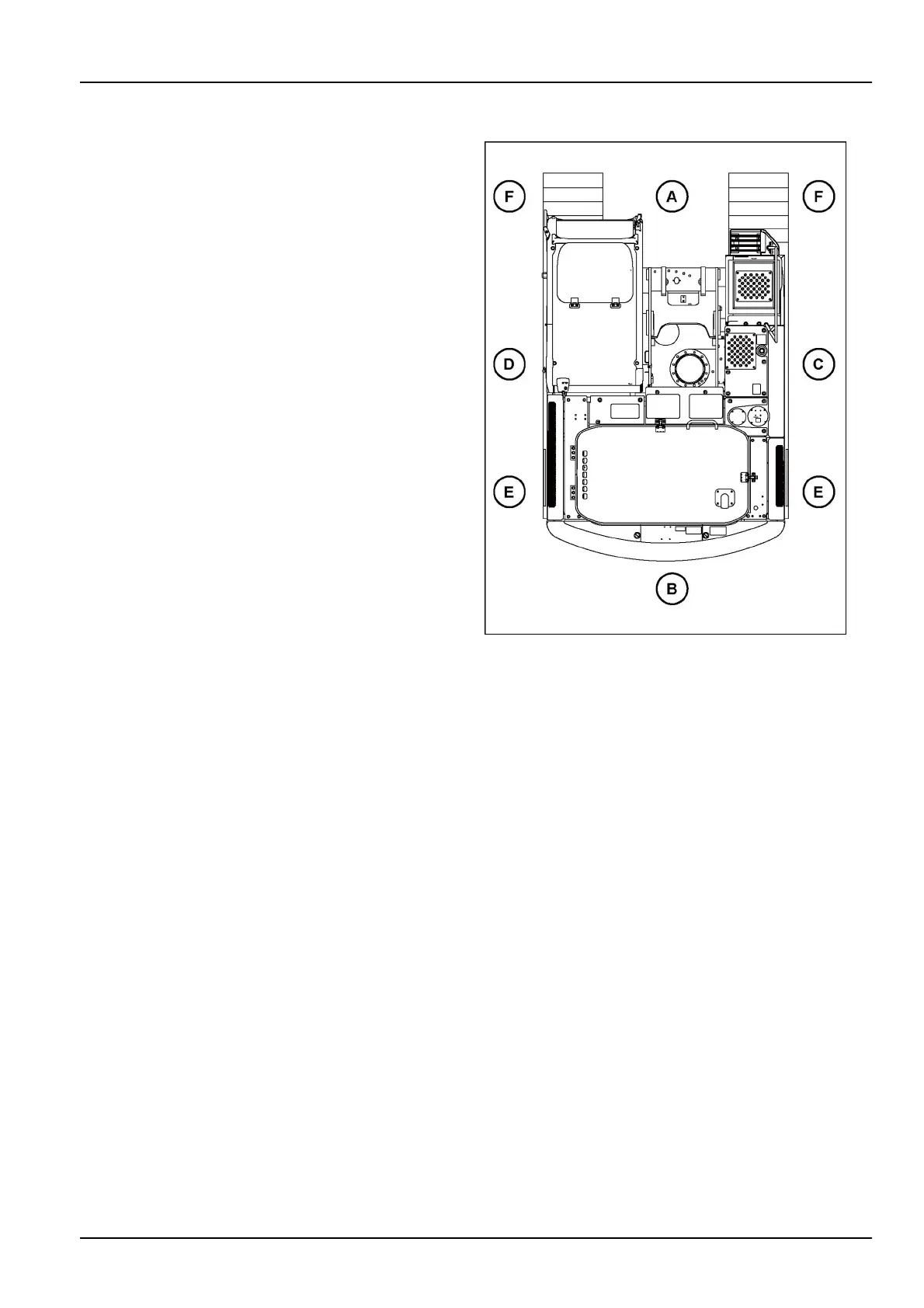

NOTICE:theillustrationoppositeshowsthemachinein
normaltravelposition.Innormaltravelposition,thecab
isovertheidlerwheels.Thetravelreductiongearsareat
therearoftheupperstructure.
(A)Front
(B)Rear
(C)Right-handside
(D)Left-handside
(E)Travelmotors
(F)Idlerwheels
SMIL15CEXX671BB1
1-7
