6-MAINTENANCE

Greasepoints

Typeofgrease:(refertopage6-4)

NOTE:Thenumberswithinbracketsmentionedontherightofthedescriptionindicatethenumberoflubricationpoints.

NOTE:Afterlubrication,rettheprotectiveandindicatingplasticcapstothegreasettings.

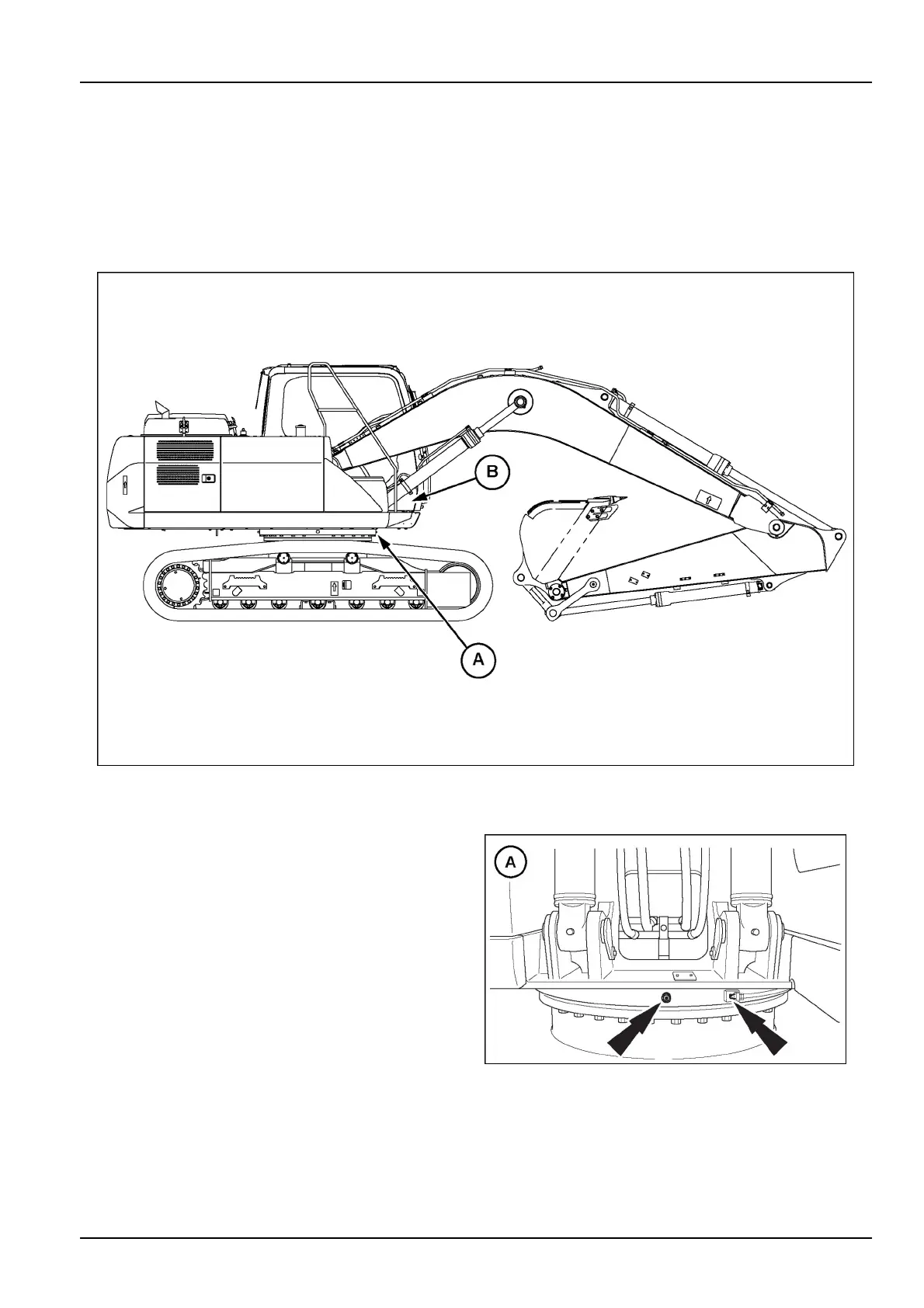

Machine

SMIL15CEXX710FB1

Every500hours

Turntable:(2)

Greasetheturntable,thenturntheupperstructure45°,

thengreaseagain.

SMIL15CEXX711AB2

6-11
