CASE CONSTRUCTION CX160C - Overall Machine Dimensions

8-SPECIFICATIONS
Dimensions

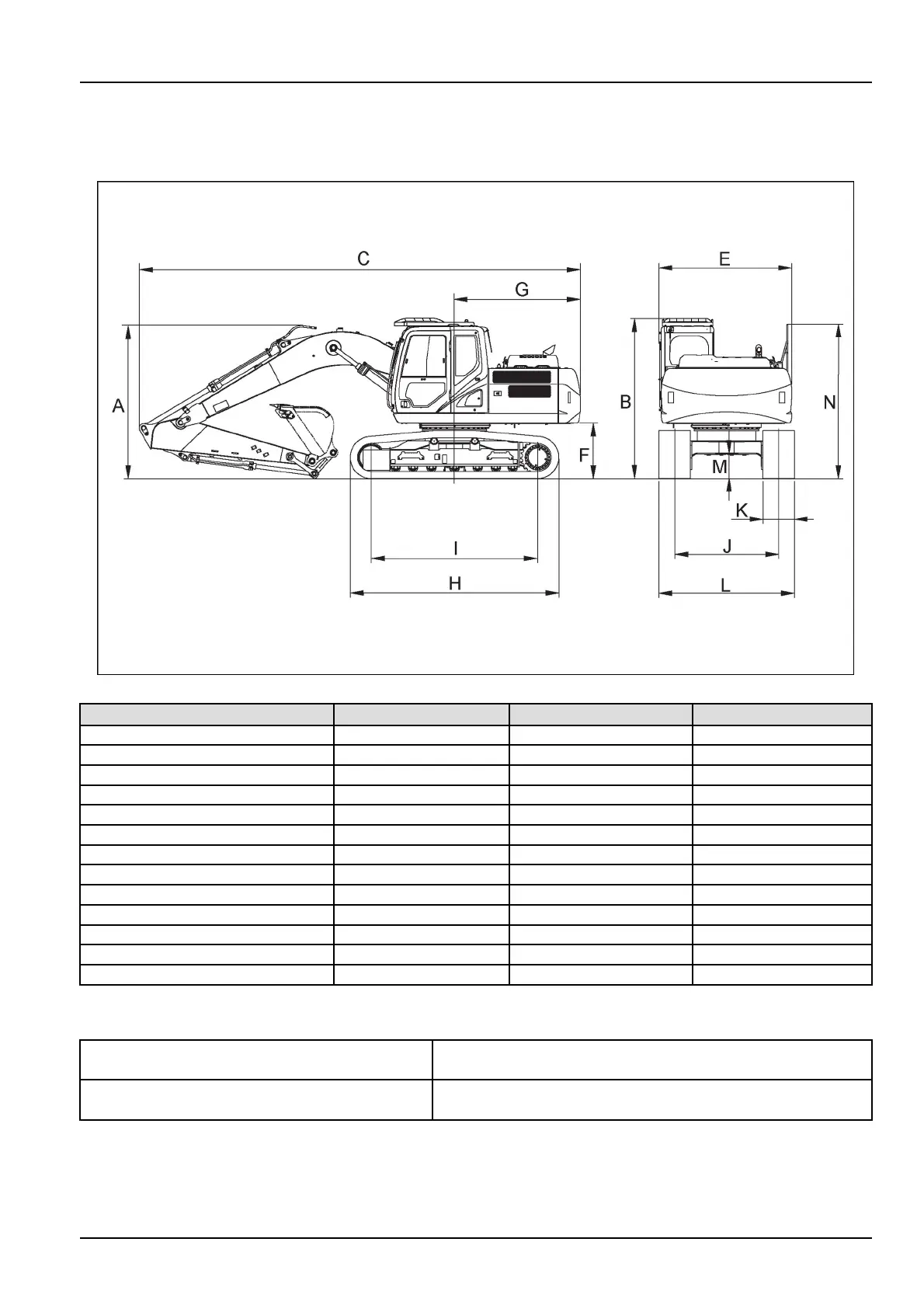

Overallmachinedimensions
SMIL15CEXX796FA1
Arms
2.23m(87.80in)2.62m(103.15in)3.05m(120.08in)
A
3m(118.11in)2.96m(116.54in)3.13m(123.23in)
B
3.05m(120.08in)3.05m(120.08in)3.05m(120.08in)
C8.47m(333.46in)8.44m(332.28in)8.50m(334.65in)
E
2.54m(100.00in)2.54m(100.00in)2.54m(100.00in)
F
1.02m(40.16in)1.02m(40.16in)1.02m(40.16in)
G2.41m(94.88in)2.41m(94.88in)2.41m(94.88in)
H
3.99m(157.09in)3.99m(157.09in)3.99m(157.09in)
I
3.19m(125.59in)3.19m(125.59in)3.19m(125.59in)
J
1.99m(78.35in)1.99m(78.35in)1.99m(78.35in)
K(Standardtrackpad)0.60m(31.50in)0.60m(31.50in)0.60m(31.50in)
L
2.59m(101.97in)2.59m(101.97in)2.59m(101.97in)
M
0.44m(17.32in)0.44m(17.32in)0.44m(17.32in)
N
2.95m(116.14in)2.95m(18.90in)2.95m(116.14in)
Boomandarm
Boom
Length
5.15m(202.76in)
Arms
Length
2.23m(87.80in),2.62m(103.15in)and3.05m(120.08in)
