4-OPERATINGINSTRUCTIONS

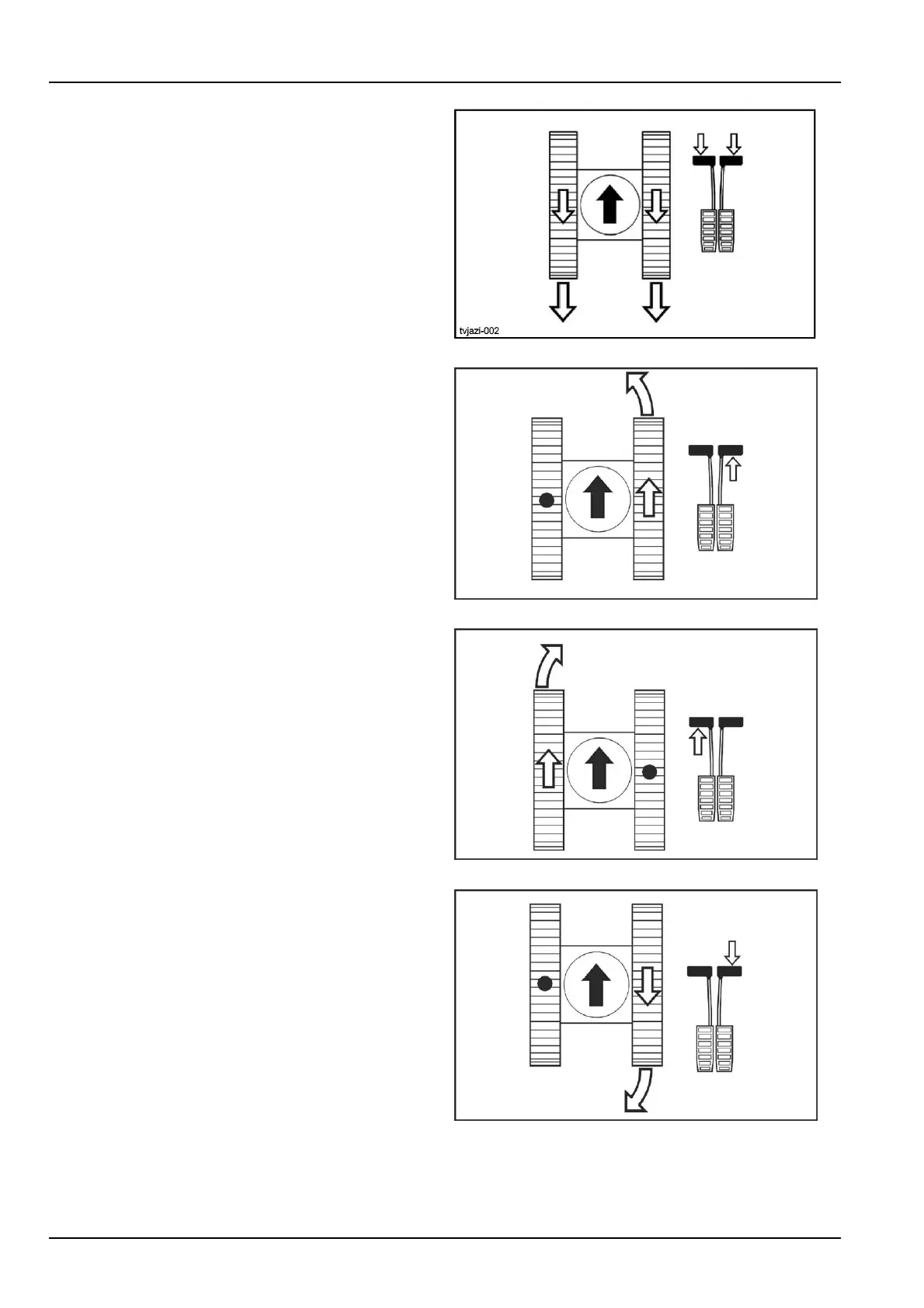

STRAIGHTLINETRAVEL(reversetravel)

Pressthetwopedals(orpushthetwolevers)rearwards

atthesametime.

TVJAZI-0023

TURNINGTOTHELEFT(forwardtravel)

Simplypresstheright-handpedalortheright-handlever

forward.

CS98M548TBP14

TURNINGTOTHERIGHT(forwardtravel)

Simplypresstheleft-handpedalortheleft-handleverfor-

ward.

CS98M551TBP15

TURNINGTOTHELEFT(reversetravel)

Simplypresstheright-handpedalortheright-handlever

rearward.

CS98M549TBP16
