6-MAINTENANCE

Filling

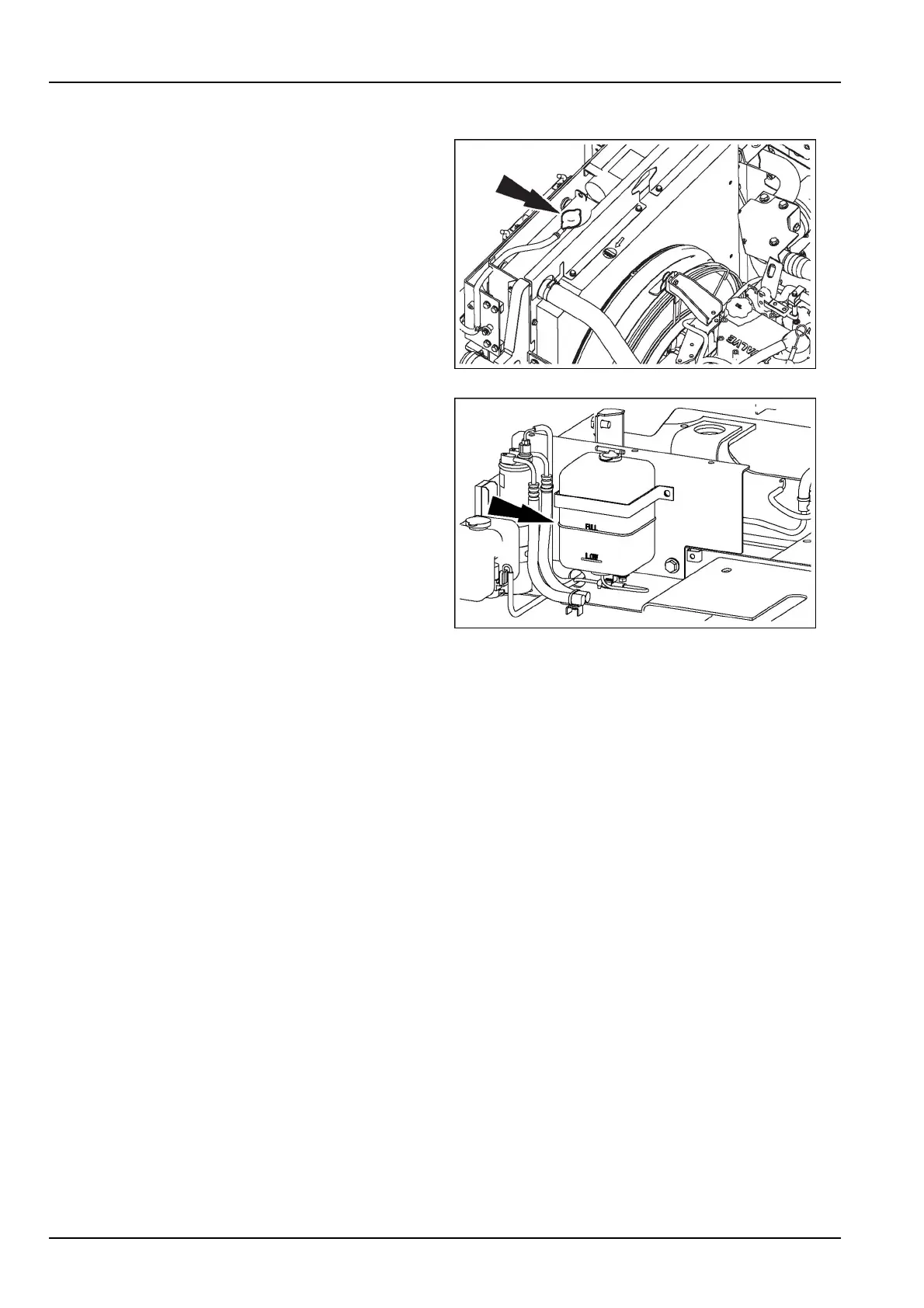

1.Fillwithcoolantsolutionviatheradiatoruntiloverow-

ingandinstalltheradiatorcap.

SMIL15CEXX731AA5

2.Filltheexpansionreservoirtothe"full"markandin-

stallthecap.

NOTE:Usethecorrectcoolantsolution.

SMIL15CEXX734AA6

5.Runtheengineatidlespeedforaboutveminutes.

Addcoolantsolutionifthelevelintheexpansionreser-

voirdrops.

NOTE:Donotlltheexpansionreservoirabovethe"

full"mark.

6-26
