CASE CONSTRUCTION CX160C - Replacing the Belt

6-MAINTENANCE
Replacingthebelt
Ifthebeltbreaks,themessage"ALTERNATOR"isdis-
playedonthemessagescreens.Shutdowntheengine,
removethestarterswitchkeyandchangethebelt.

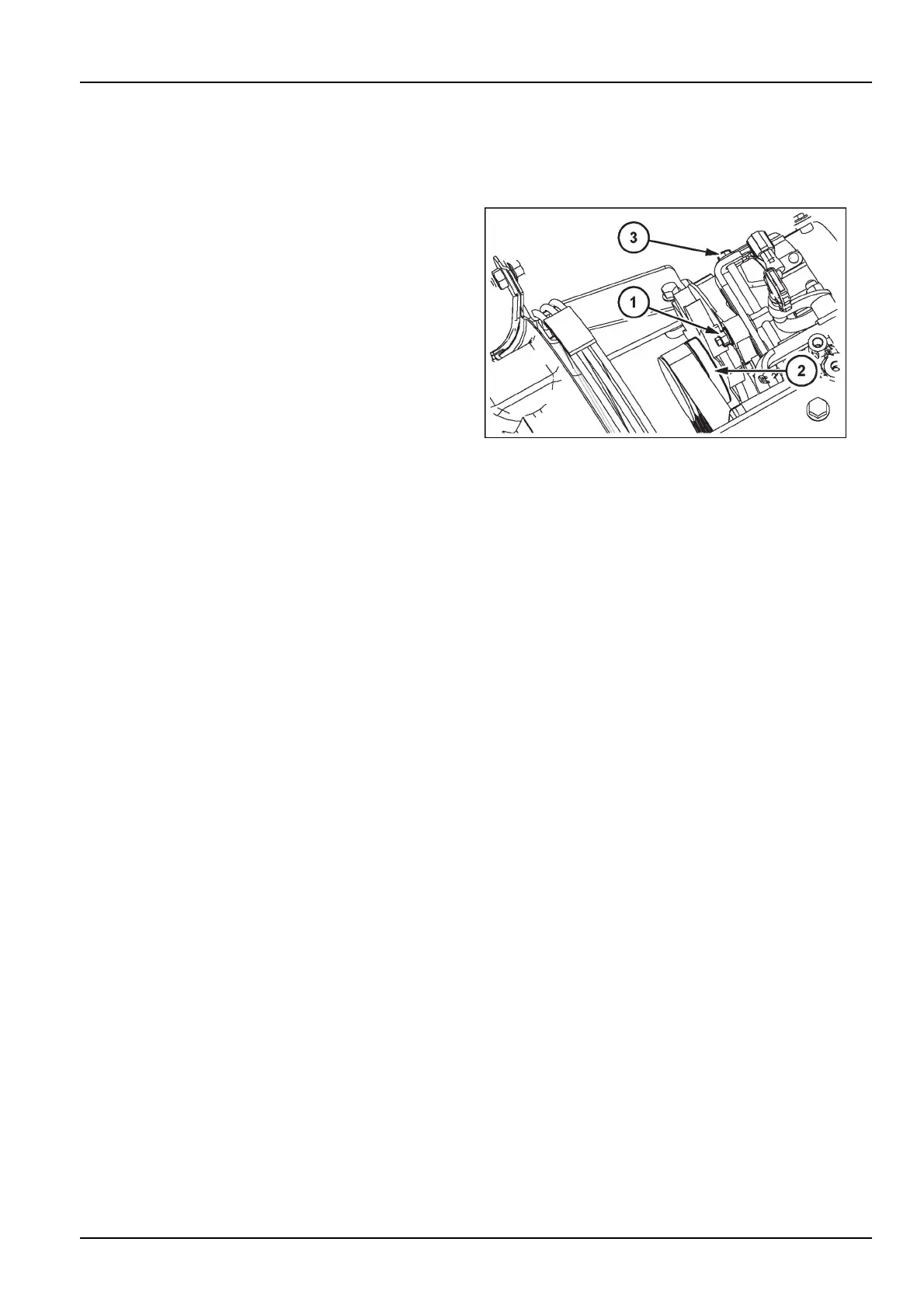

Removetheretainingscrews(1)and(2).Usetheadjust-
mentscrew(3)topushthealternatorinward.
Removethewornbelt.
Installanewbelt.
Adjustthebeltusingthescrew(3).
Retightentheretainingscrews(1)and(2).
Runtheengineforaboutanhourandthencheckthebelt
tensionagain.
SMIL15CEXX784AB4
6-59
