6-MAINTENANCE

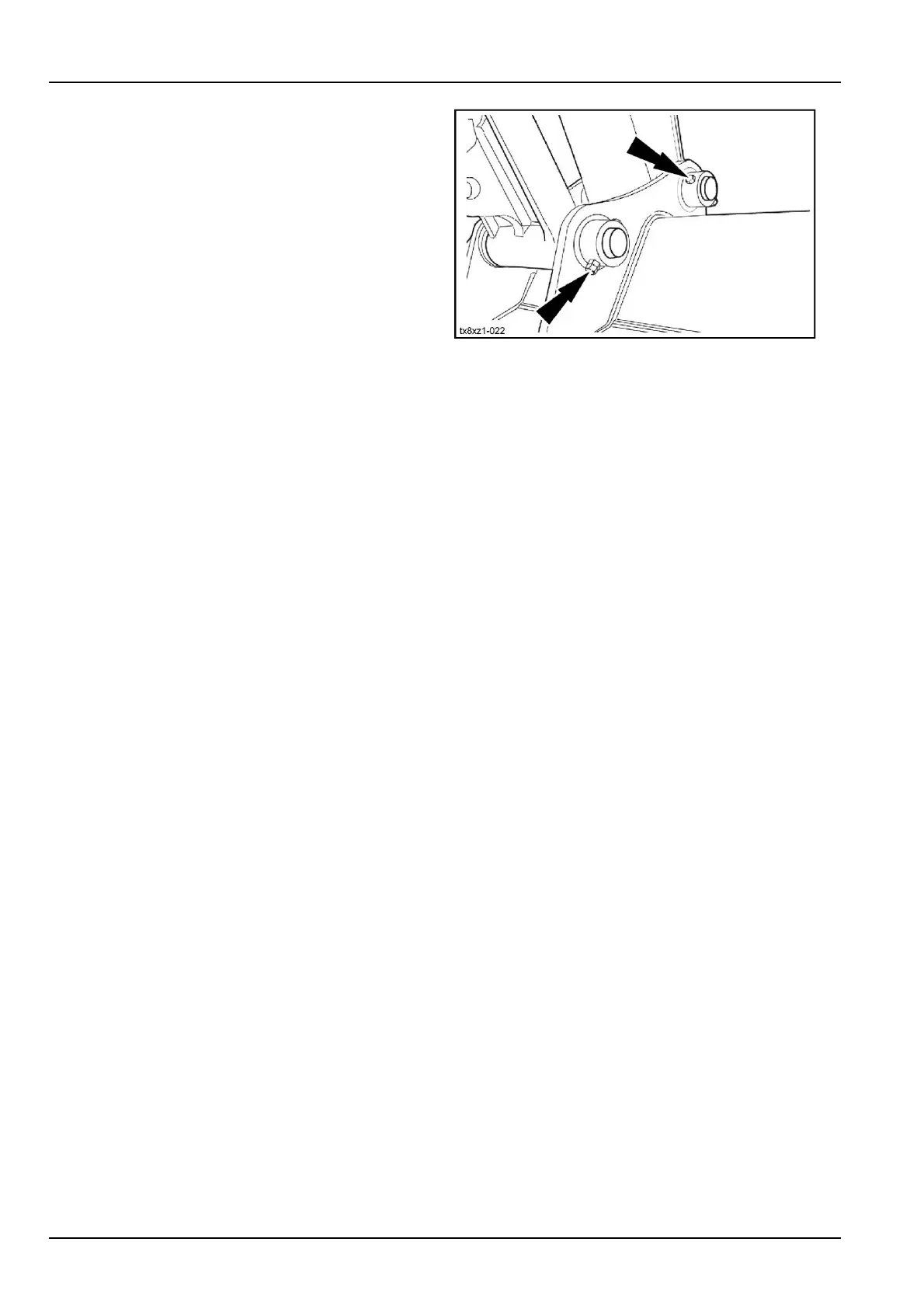

4.Installthearm/bucketlinkagepinanditshardware.

5.Starttheengine.

Bringthebucketrodintoitshousing.

Stoptheengineandremovethestarterswitchkey.

6.Installthelinkagesealsbetweentherodandthe

bucket.Changethemifnecessary.

7.Installtherod/bucketlinkagepinanditshardware.

8.Greasethelinkagepins.

TX8XZ1-0223

6-70
