2-SAFETYINFORMATION
Parkingthemachine

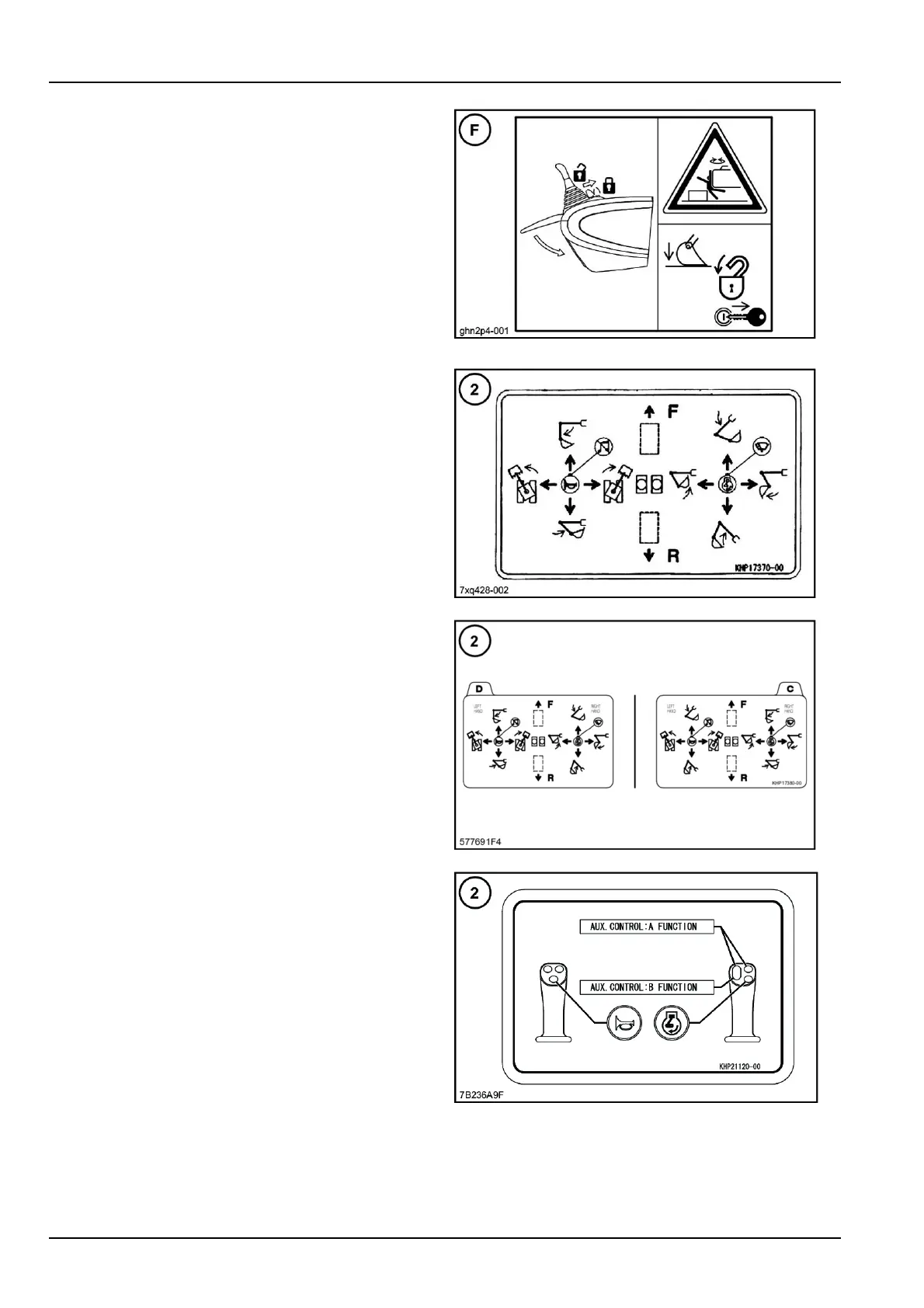

Thisdecalshowsthat,beforeleavingtheoperator’scom-
partment,thebucketmustbeloweredtotheground,the
functioncancellationlevermustbeactivated,theengine
stoppedandthestarterswitchkeyremovedinorderto
preventanymovementofthemachine.
GHN2P4-0019
Functionofthecontrollevers
Partnumber:
KHP17370
KHP17380(option)
KHP21120(option)
KHP21150(option)
KHP21160(option)
KHP11720(option)
KHP11730(option)
KHP1941(option)
Thisdecalshowsthefunctionoftheleft-handandright-
handcontrollevers.
7XQ428-00210
577691F411
7B236A9F12
2-22
