3-CONTROLSANDINSTRUMENTS

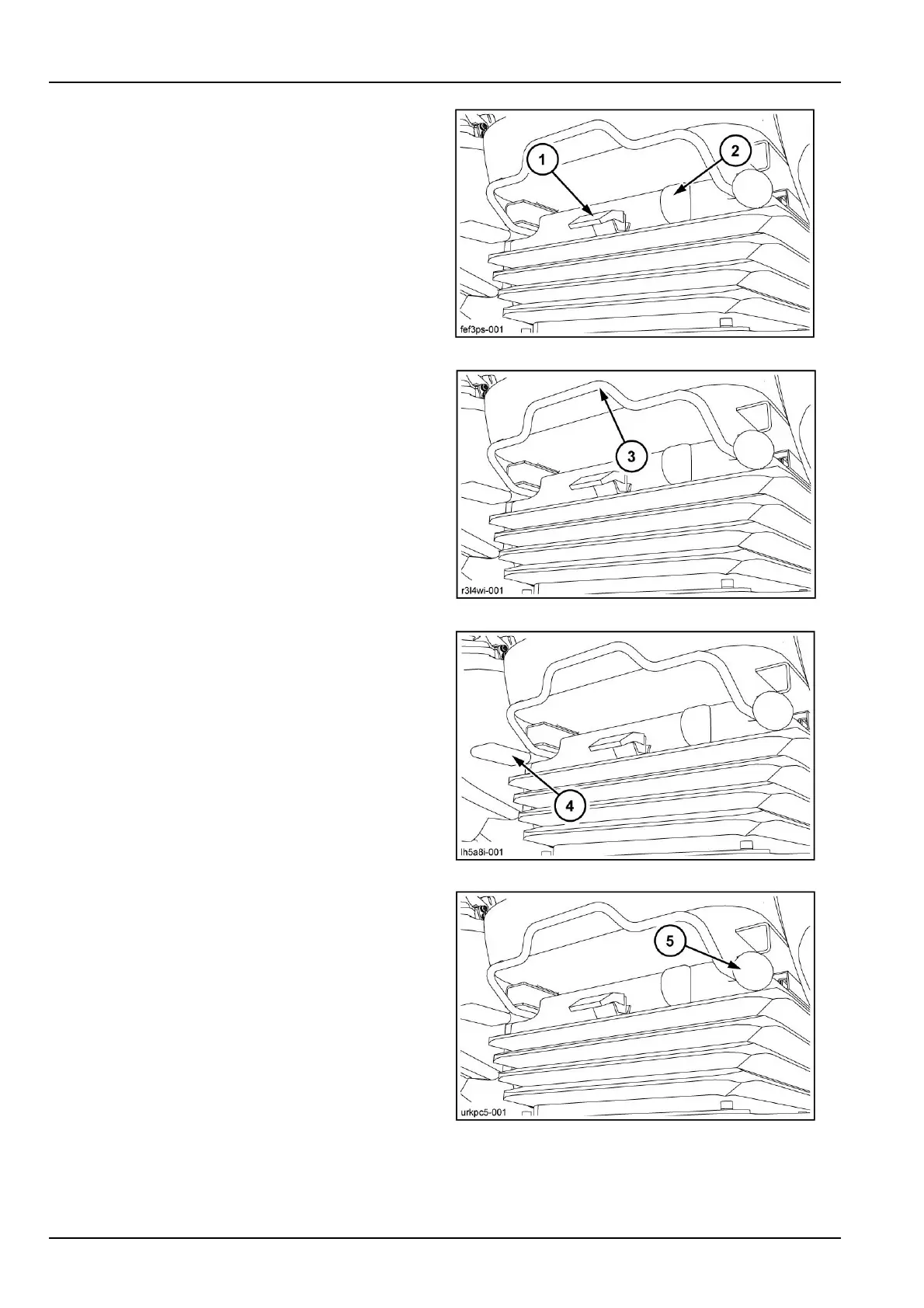

Combinedheightandweightadjustment

Lowerthehandle(1)todecreasetherigidityofthesus-

pension.Raisethelever(1)backwardtoobtainharder

suspension.Theindicator(2)mustbegreenwhenthe

operatorissittingontheseat.

FEF3PS-0012

Fore/aftadjustment

Holdthecontrol(3)intheraisedposition,slidetheseatto

therequiredpositionandthenreleasethecontrol.

R3L4WI-0013

Seatbackangleadjustment

Toadjusttheseatbackangle,holdthelever(4)inthe

raisedposition.Movewiththeseat-backtothedesired

positionandthenreleasethelever.

LH5A8I-0014

Lumbarsupportadjustment

Usetheinationbulb(5)toinatethelumbarsupport.

Pressthebuttononthetipoftheinationbulb(5)tode-

atethelumbarsupport.

URKPC5-0015

3-6
