3-CONTROLSANDINSTRUMENTS

3.Presstheoptionpedalonthebreaker/crusherallthe

waydownormovetheproportionalswitchtothemax-

imumsetting.

NOTE:Theadjustmentmustbedonebeforeconnect-

ingattachments.

SMIL15CEX0935AA21

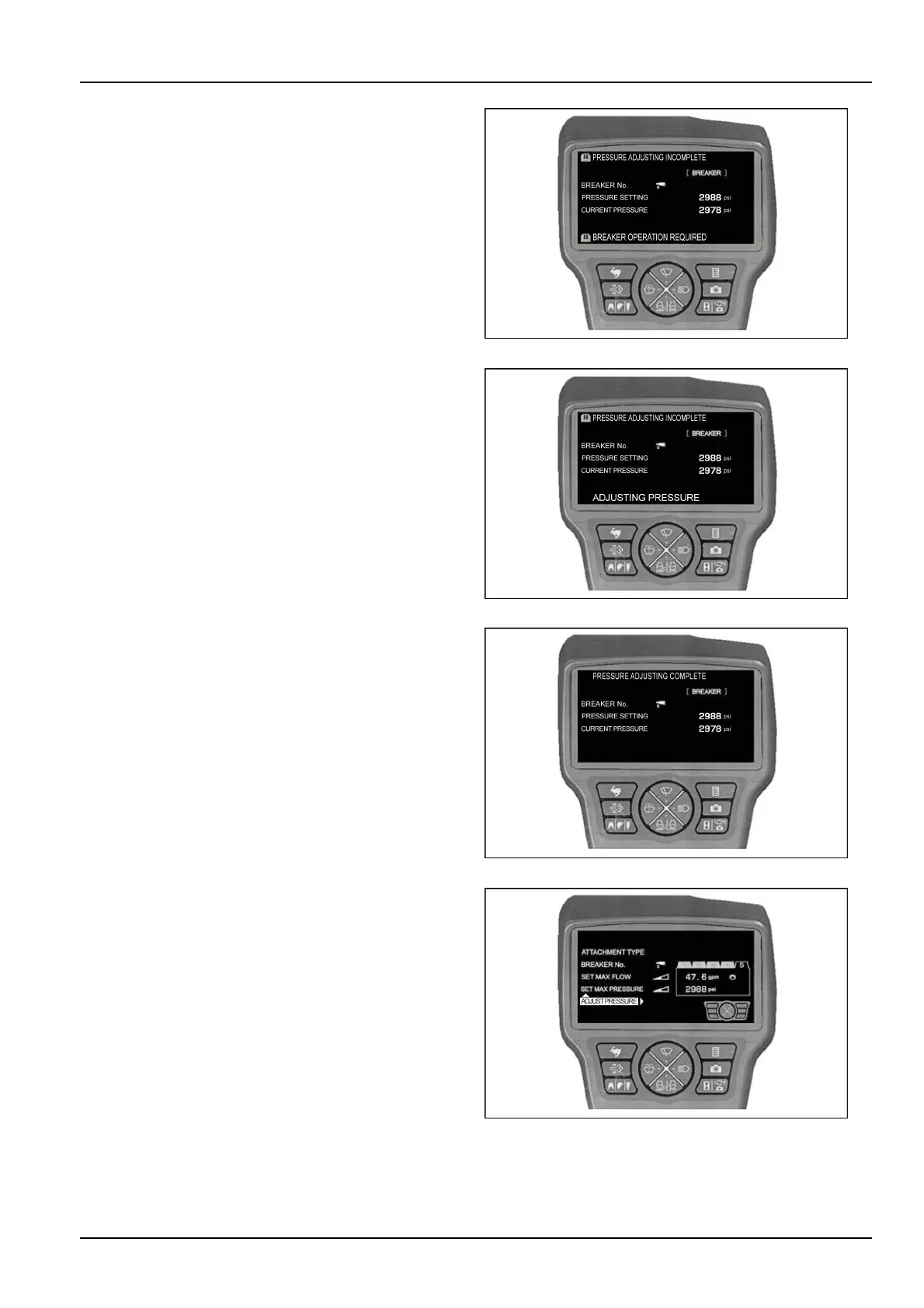

4.Holdtheswitchdownuntil“PRESSUREADJUSTING

COMPLETE”isdisplayedonthescreen.

SMIL15CEX0936AA22

5.Operationcomplete

SMIL15CEX0937AA23

6.Thedisplayreturnsautomaticallytothemenuscreen.

SMIL15CEX0938AA24
