3-SETUP

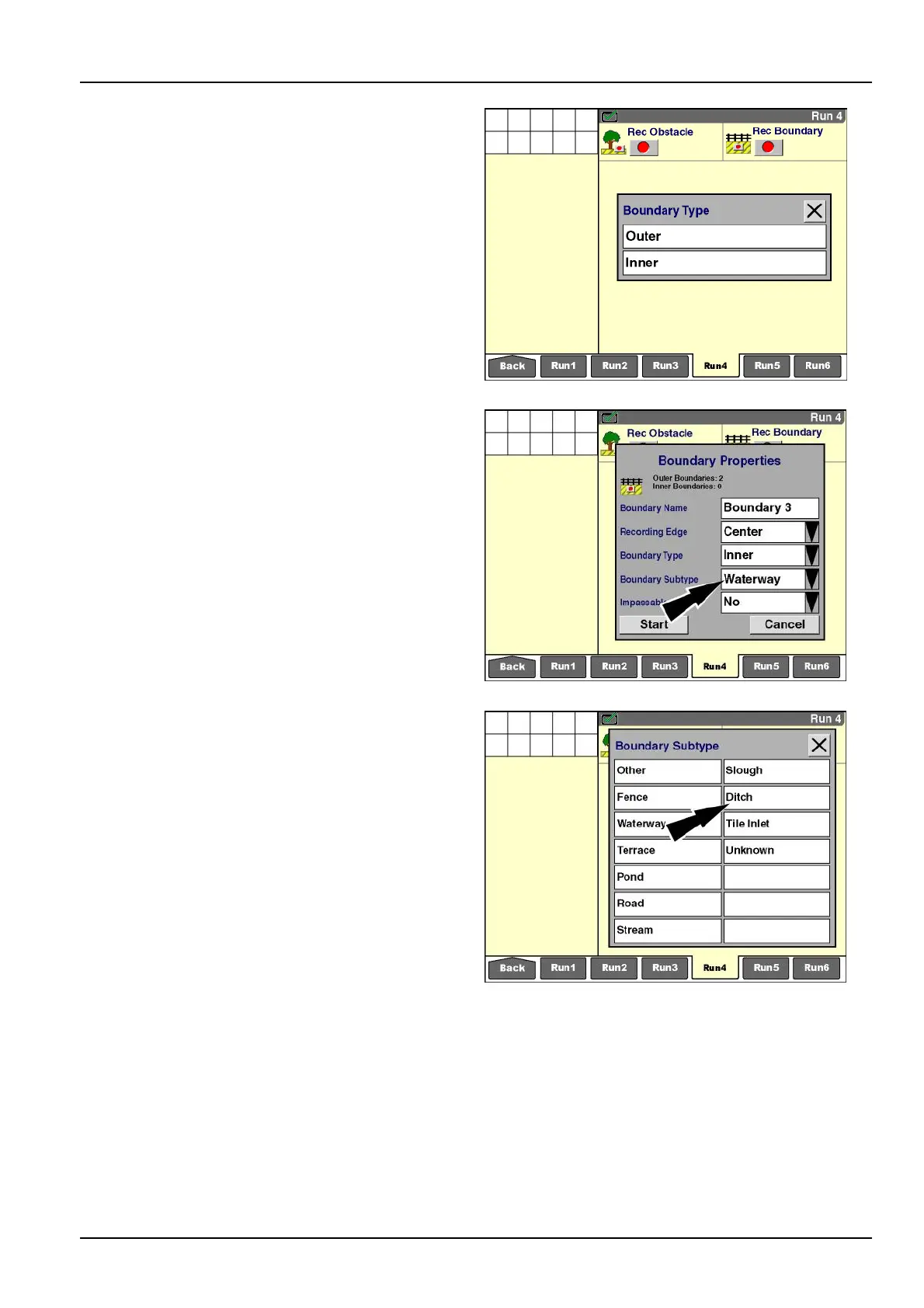

Press“Outer”torecordaboundaryfortheoutsideedge
ofaeld.
Press“Inner”torecordaboundarywithinaeld.
RCIL11DSP055BBG11
If“Inner”waspressed,the“BoundarySubtype”and“Im-
passable”windowsdisplay.
Pressthe“BoundarySubtype”windowtoselectasub-
type.
RCIL11DSP052BBG12
Alistofboundarysubtypesdisplays.
Selectthedesiredsubtype.
RCIL11DSP056BBG13
3-115
